In an era increasingly defined by energy efficiency and sustainability, the quest to harness untapped energy sources has led innovators to look at the most unexpected places. One such frontier is the vast network of pipelines that crisscross our industrial and municipal landscapes. Within these pipelines, a common component—the humble check valve—is performing its duty, largely unnoticed. But what if the simple, repetitive motion of a swing check valve could be transformed into a source of clean, renewable energy? This concept of micro-energy generation is not just a theoretical exercise; it is an emerging technological reality that promises to turn passive infrastructure into active power contributors.

Cangzhou Houde Stainless Steel Products Co., Ltd., established in 2010 and based in Cangzhou, Hebei Province, China, is at the forefront of this innovation. As a professional enterprise dedicated to the research, development, production, and sales of high-quality stainless steel valves and fittings, we understand the intricate mechanics and potential of these essential components. Our commitment to advanced manufacturing and engineering excellence positions us perfectly to explore and explain how the fundamental check valve function can be the key to unlocking a new, sustainable energy stream.

The Unseen Potential in Every Pipeline: The Basics of Check Valve Function

To appreciate the innovation of energy harvesting, one must first understand the core check valve function. A check valve, at its simplest, is a automatic, one-directional safety device. Its primary purpose is to prevent backflow in a piping system, ensuring that fluids—be they water, oil, gas, or other media—flow in one intended direction only. When flow moves forward, the valve opens; when flow stops or attempts to reverse, the valve closes automatically. This crucial function protects pumps, compressors, and other equipment from damage caused by counter-flow, making it an indispensable component in countless industries from petroleum and chemical processing to water treatment and HVAC systems.

The genius of its design lies in its passivity. It requires no external actuator, handwheel, or control mechanism. It operates solely based on the energy inherent in the flow of the fluid itself. This inherent, kinetic energy of the moving fluid and the resultant motion of the valve internals represent a continuous, untapped source of micro-energy. In large-scale systems with constant flow, the frequency of valve movement is high, making it a prime candidate for energy recovery technologies that can power small sensors, monitoring devices, or even contribute to local micro-grids.

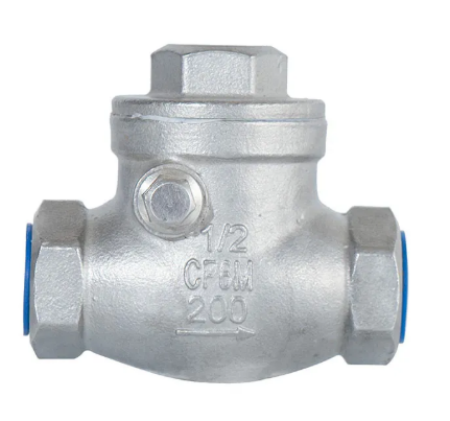

The Engine of Motion: Delving into the Swing Check Valve

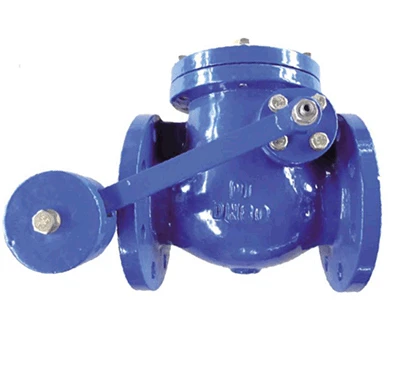

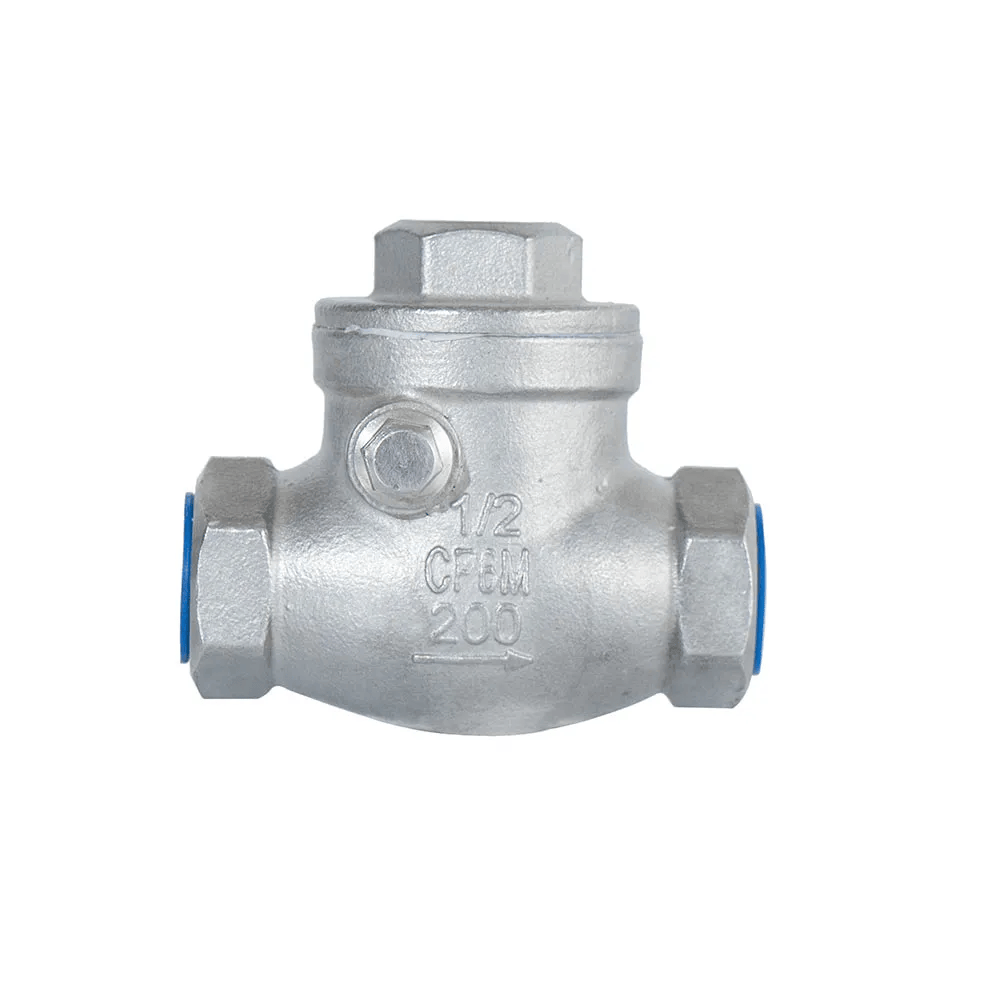

Among the various types of check valves, the swing check valve is one of the most common and recognizable designs. Its operation is elegantly simple. It consists of a disc, often shaped like a wafer or a door, which is mounted on a hinge pin above the flow passage. When forward flow pressure is sufficient, it pushes the disc open, swinging it on its hinge. When flow pressure decreases or reverses, the disc swings shut onto the valve seat, forming a seal and preventing backflow.

This swinging motion is a consistent and predictable cycle of kinetic energy. The disc’s movement from the closed position to fully open and back again is a perfect mechanical action to be harnessed. By integrating a miniature energy harvesting system—such as a miniature electromagnetic generator or a piezoelectric element—into the hinge assembly of the swing check valve, this mechanical energy can be converted into electrical energy. Every swing generates a small amount of power. While minuscule on an individual basis, the cumulative effect across thousands of valves in a large industrial plant or a municipal water system can be significant, especially for powering the low-energy IoT (Internet of Things) devices that are becoming essential for modern industrial monitoring and automation.

Our company’s dedication to precision manufacturing is critical here. The efficiency of energy generation is directly tied to the smooth, low-friction operation of the valve. A poorly made valve with stiff movement wastes energy and generates less power.

From Fluid to Luminescence: Innovative Design for Energy Harvesting Using Swing Check Valve Motion

The transformation of a standard swing check valve into a micro-generator involves sophisticated yet compact engineering. The core modification is within the hinge pin assembly. This pin can be redesigned to act as a shaft for a miniaturized turbine or to connect to a magnetic assembly. As the disc swings, it rotates this shaft. Surrounding this shaft are coils of wire. The rotation of magnets mounted on the shaft within these coils induces an electric current through electromagnetic induction—the same fundamental principle used in large-scale power generators.

Alternatively, for smaller valves or lower-flow applications, piezoelectric materials can be strategically placed in the valve seat or stop. These materials generate a small electrical charge when subjected to mechanical stress—in this case, the impact and pressure of the disc closing. Each closure event creates a pulse of electricity that can be harvested and stored in a capacitor or battery.

The beauty of this technology is its seamless integration. The external form and primary check valve function remain completely unchanged. The valve continues to perform its vital role in preventing backflow with the same efficiency and reliability. The energy harvesting system is a value-added module that operates unnoticed, requiring no additional maintenance or operational changes. The generated power is typically used to run inline sensors that monitor critical parameters like pressure, temperature, flow rate, and fluid quality, transmitting this data wirelessly to a control system. This eliminates the need for external power lines or battery replacement, creating self-powered, maintenance-free monitoring points that enhance system intelligence and reduce long-term operational costs.

FAQs About Our Energy-Harvesting Check Valves

What are the main advantages of an energy-harvesting swing check valve?

The primary advantage is the creation of a self-sustaining power source for pipeline monitoring systems. It eliminates the cost and hassle of running electrical wiring to remote valve locations or frequently replacing batteries. This leads to significant cost savings over the valve's lifecycle, enhances safety by removing potential electrical hazards in certain environments, and promotes sustainability by utilizing wasted kinetic energy.

How does the energy harvesting affect the core check valve function?

It does not affect it at all. The energy harvesting mechanism is a passive add-on that works in parallel with the valve's operation. The fundamental check valve function of preventing backflow remains unchanged. The valve maintains its full-pressure rating, flow characteristics, and reliability, as the energy capture process is designed to introduce negligible resistance to the disc's movement.

Is the energy-harvesting swing check valve reliable and durable?

The technology is designed for micro-energy generation, making it ideal for low-power devices. It can consistently power wireless sensors, data loggers, and small IoT transmitters. It is not intended to run large actuators, pumps, or other high-power equipment. Its purpose is to enable autonomous, smart monitoring networks within your piping infrastructure.

What is the durability and maintenance requirements for check valve product?

These valves are built to the same high standards as our standard valves, using investment casting and precise grinding for exceptional durability and leak-proof performance. The energy harvesting module is designed for long life with no regular maintenance required. Furthermore, our company's policy ensures that for any damage to parts outside the warranty period, we charge only the cost for provided accessories, supporting a long-term cooperative relationship.

Why choose your company for this innovative check valve product?

As a leading stainless steel valve manufacturer with advanced production equipment and a strict quality management system, we ensure every valve meets rigorous standards like API598 and EN12266. Our experienced engineering team has meticulously designed this product to be both reliable and innovative. We also offer free technical after-sales service training for your personnel, ensuring you get the maximum benefit and understanding from your investment, truly working better for you.

The integration of micro-energy generation into the standard swing check valve is a testament to how innovation can find opportunity in the ordinary. It represents a perfect synergy between mechanical engineering and sustainable technology, turning essential infrastructure into a proactive contributor to energy efficiency. By choosing to implement such smart, self-powered solutions, industries are not only investing in advanced monitoring capabilities but also taking a definitive step towards greener, more autonomous, and more cost-effective operations.

Cangzhou Houde Stainless Steel Products Co., Ltd. is proud to be developing solutions that look toward this future. By harnessing the simple swing, we are helping to build a world where energy is never wasted and where every component works smarter, not just harder.

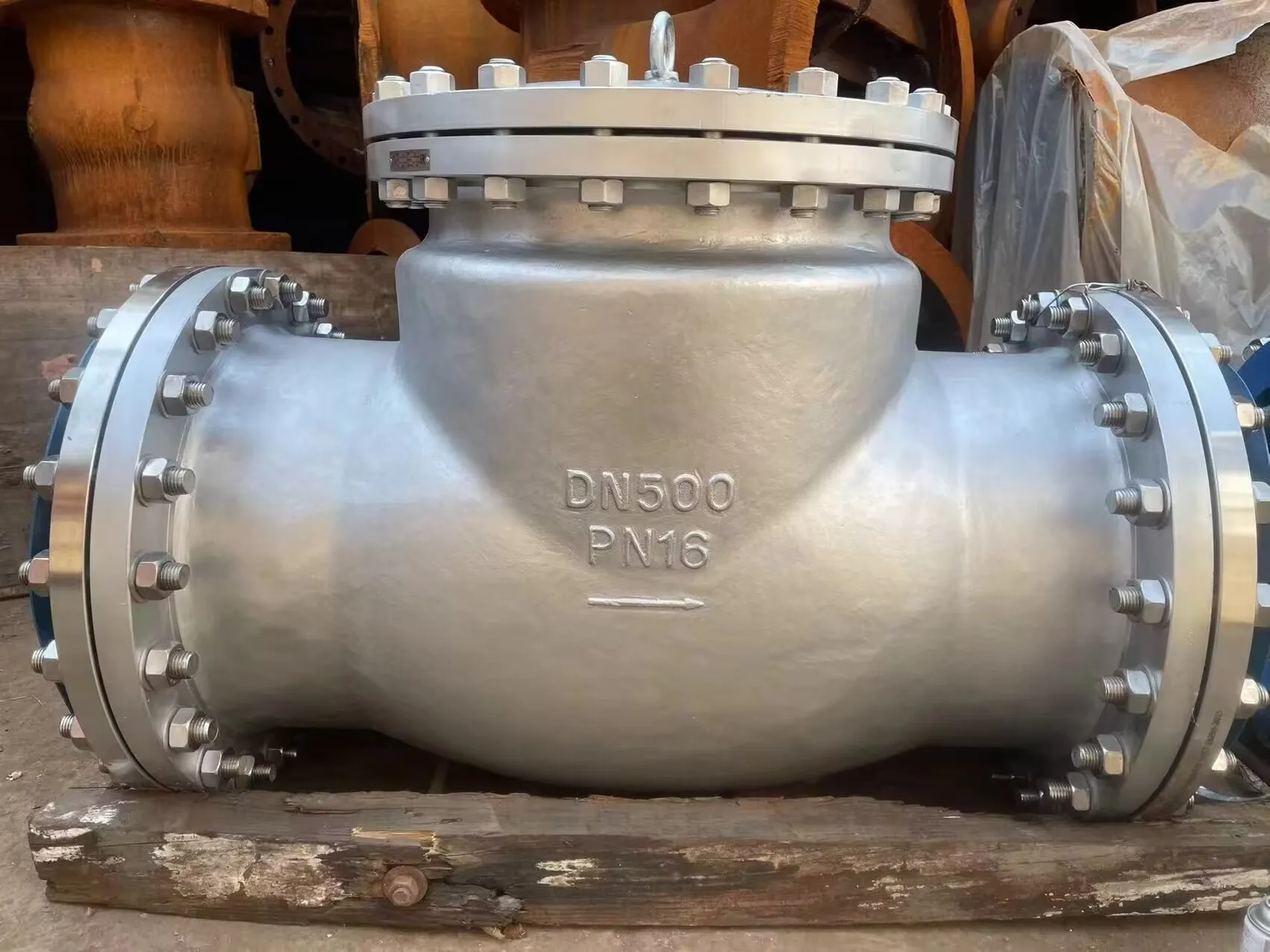

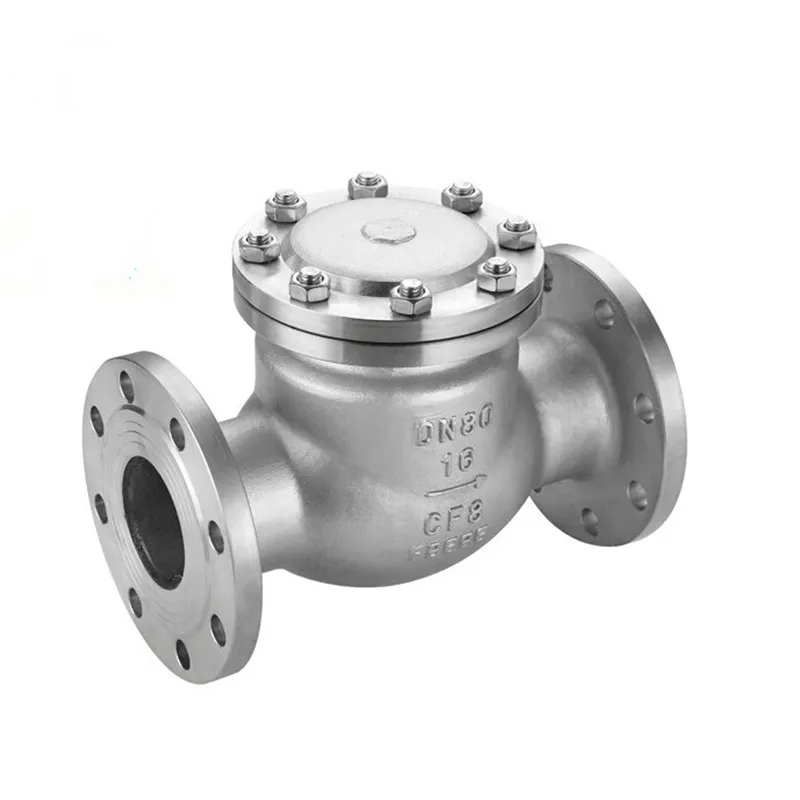

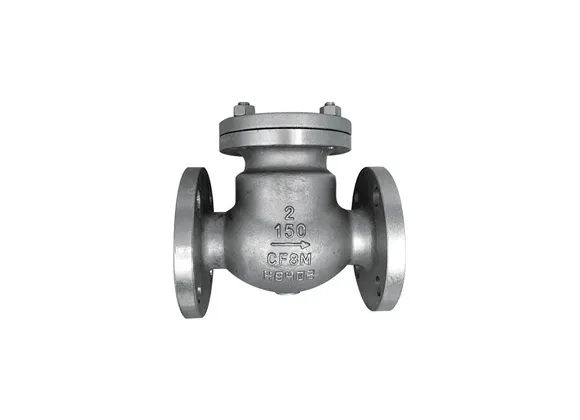

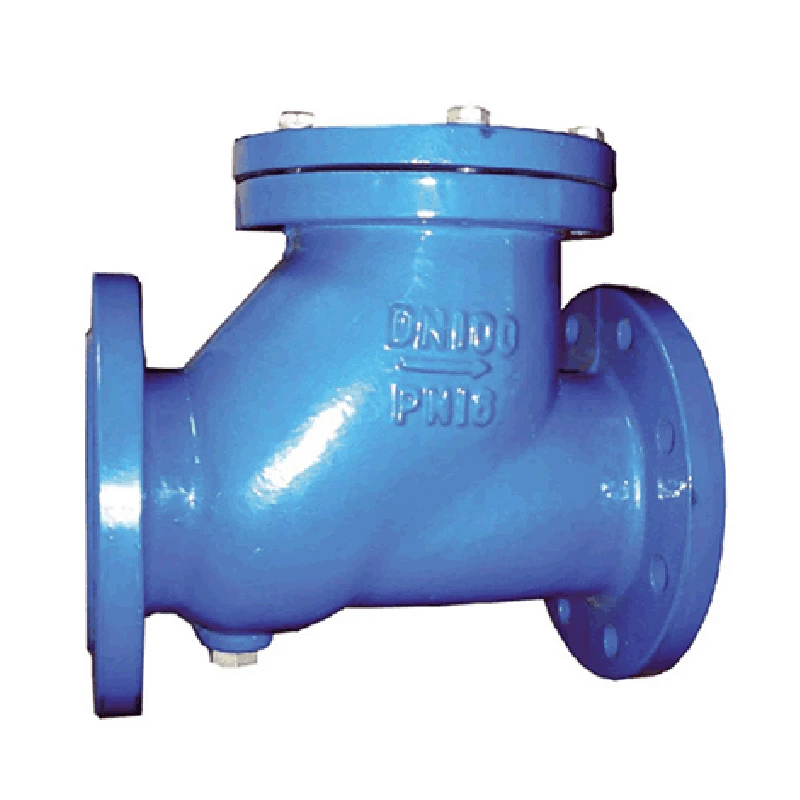

Installing a flanged swing check valve correctly is essential to ensure effective prevention of backflow in a piping system. Backflow can lead to contamination, reduced efficiency, and equipment damage, making it crucial to follow best practices during the installation of these valves.

Preparing for Installation: Choosing the Right Flanged Swing Check Valve

Before beginning the installation, it’s essential to select the appropriate flanged swing check valve for your system. This valve type is designed to allow flow in one direction while preventing it from reversing, thanks to its hinged disc mechanism. Ensure that the swing check valve flange type is compatible with your piping materials and system requirements. Consider whether a flanged spring check valve might be better suited if your application requires a faster response to flow changes, as spring-loaded valves can react more quickly to changes in pressure.

Selecting the correct flanged check valve type is the first step in preventing backflow issues. Additionally, verify the pressure and temperature ratings to ensure the valve’s specifications align with your system’s needs. Confirming these factors in advance will help avoid issues down the line and support smoother installation.

Step-by-Step Guide to Installing a Flanged Swing Check Valve

Align the Valve with Flow Direction: Ensure the flanged check valve is aligned with the correct flow direction, which should be clearly marked on the valve body. Misalignment will prevent the valve from working correctly, as it relies on gravity or flow pressure to close and prevent reverse flow.

Prepare the Piping Ends: Clean and prepare the flange faces on the pipe ends where the valve will be connected. Ensure the surfaces are free of debris, corrosion, and damage, which can interfere with the seal and lead to leakage.

Install Gaskets: Place gaskets between the flanged swing check valve and the piping flanges to create a tight, leak-proof seal. Use gaskets that match the material specifications and pressure ratings of the valve to ensure durability.

Secure the Valve with Bolts: Align the flanges and insert bolts through the holes. Tighten the bolts evenly to prevent misalignment. It’s recommended to use a torque wrench and follow a cross-pattern tightening method for even pressure distribution.

Testing the Flanged Swing Check Valve After Installation

Testing the flanged swing check valve after installation is crucial to verify its effectiveness in preventing backflow. Start by gradually increasing the system pressure and observing the valve's performance. If the valve is functioning correctly, it should open smoothly as fluid flows through and close promptly when the flow stops, ensuring no reverse flow.

During testing, check for any signs of leakage around the flanged check valve connections. Even small leaks can compromise the system’s efficiency and cause wear over time. If leaks are detected, consider readjusting the flange bolts or replacing the gasket to improve the seal. For high-stakes systems, conducting a pressure test is advisable to confirm that the check valve with flange is fully sealed and ready for operation.

Troubleshooting Common Issues with Flanged Swing Check Valves

Despite careful installation, some common issues can arise with flanged swing check valves. One common problem is valve chattering, which occurs when the disc rapidly opens and closes due to flow fluctuations. This can lead to premature wear and inefficiency. Installing the valve in a position where flow remains steady or using a flanged spring check valve for quicker responsiveness may help mitigate this issue.

Another problem is valve sticking, which can occur if debris becomes lodged within the valve body. Regular maintenance, including periodic inspection and cleaning, can help avoid these issues. Checking the alignment and ensuring that the swing check valve flange type is properly installed will also support smoother operation.

Benefits of Correctly Installing a Flanged Swing Check Valve

Proper installation of a flanged swing check valve provides numerous benefits, including enhanced flow efficiency, reduced risk of backflow, and minimized maintenance needs. When installed correctly, these valves effectively prevent reverse flow, protecting sensitive equipment and maintaining system integrity. Additionally, a well-installed check valve with flange will experience less wear and require fewer repairs over time.

In applications where rapid response to flow changes is necessary, considering a flanged spring check valve may provide added benefits. Spring-loaded models offer faster closure, reducing the risk of backflow in high-pressure systems. Ultimately, ensuring the correct installation of flanged swing check valves will maximize their performance and reliability in preventing backflow issues.

Installing a flanged swing check valve correctly is essential for preventing backflow and maintaining efficient operation in fluid systems. Proper installation not only enhances performance but also reduces the need for frequent maintenance, supporting long-term reliability.

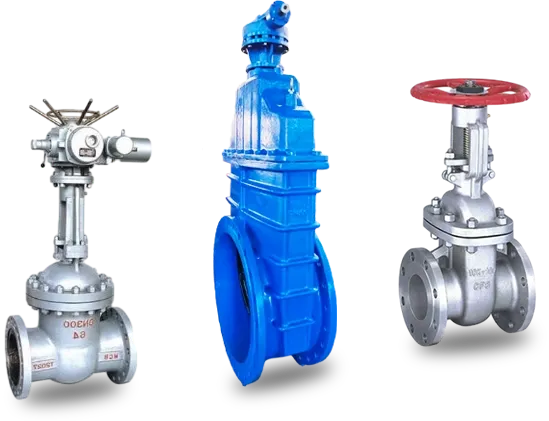

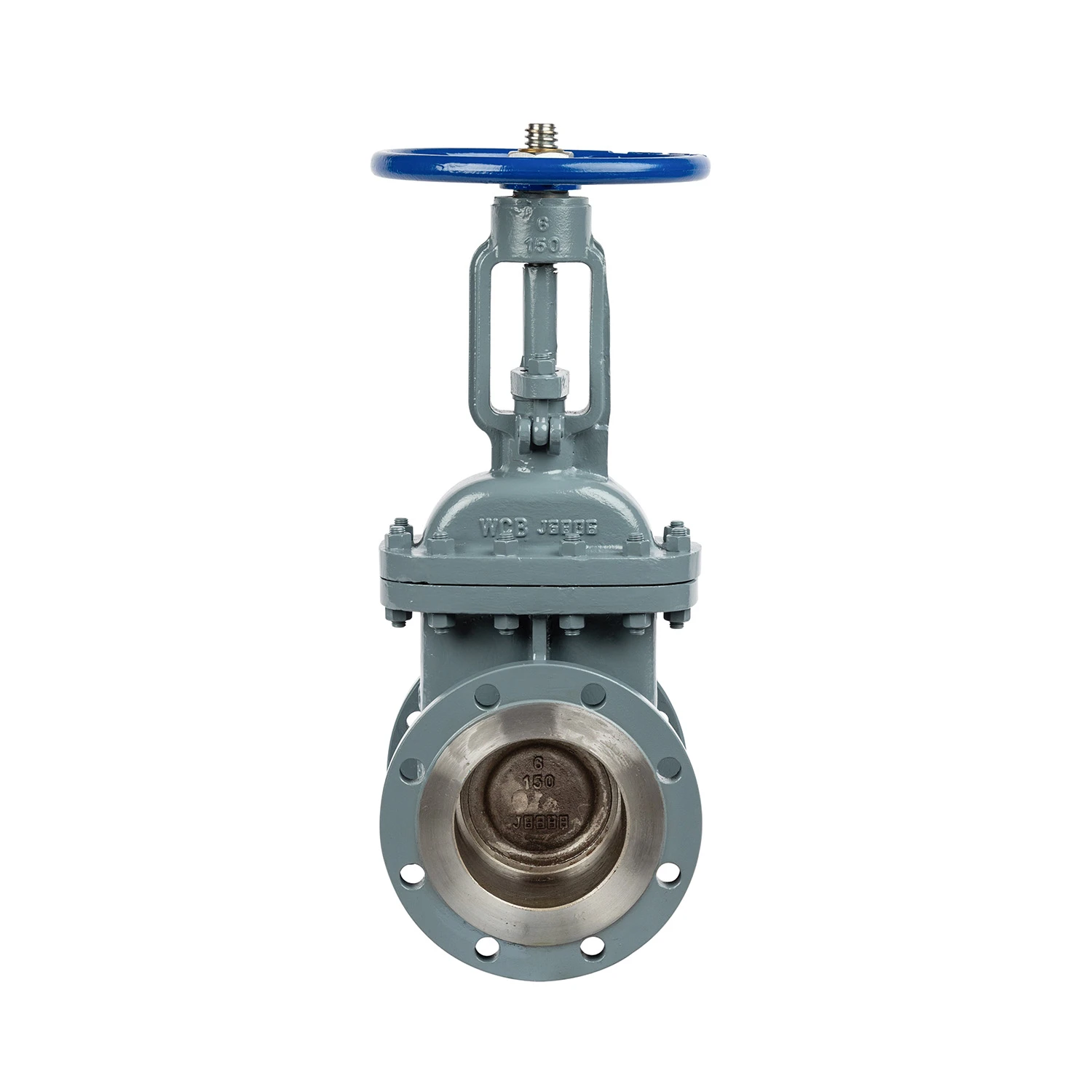

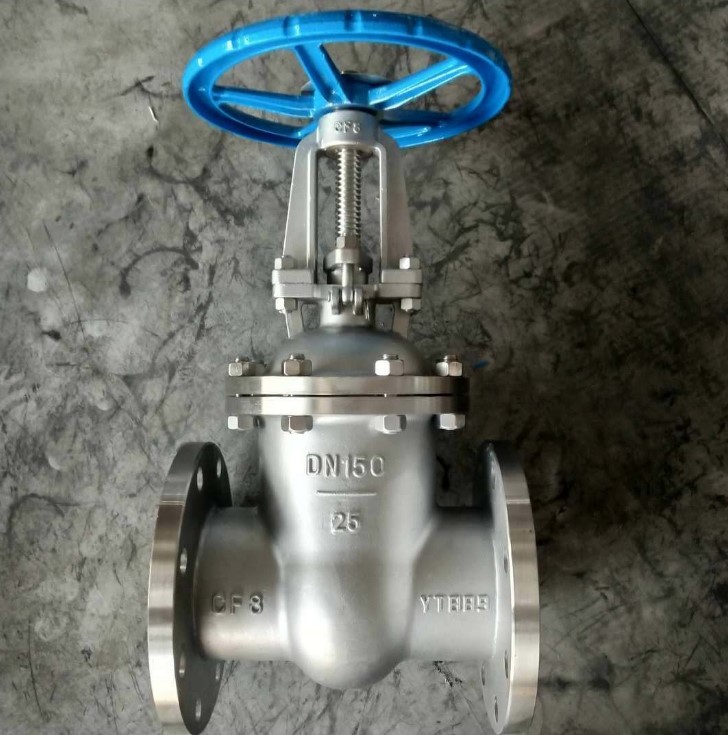

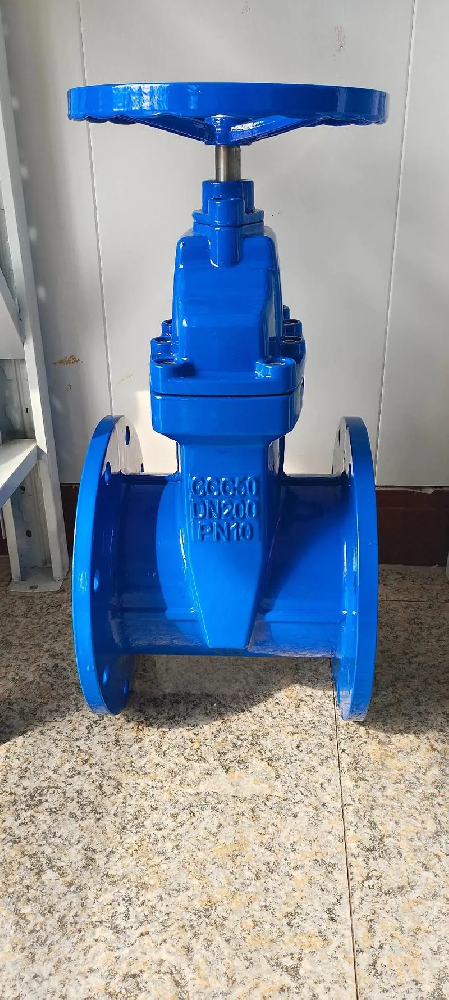

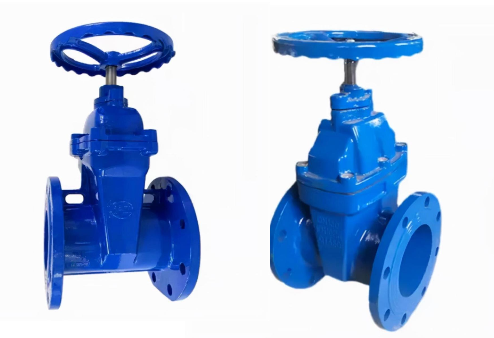

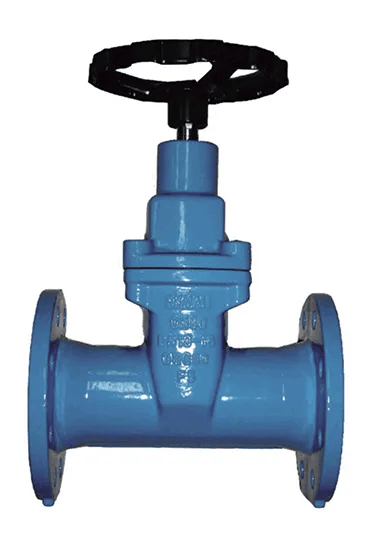

In the realm of water management within pipelines, the design of water valve gate is of paramount importance. A well - designed valve not only controls the flow of water efficiently but also safeguards against leakage and corrosion, two critical issues that can compromise the integrity of an entire system. Storaen (Cangzhou) International Trading Co., a leading wholesaler in industrial valves, offers a range of high - quality gate valve products, including specialized water valve gate models, all engineered with innovative designs to combat leakage and corrosion. Our products combine advanced technology, durable materials, and meticulous craftsmanship to provide reliable solutions for various water - related applications.

Innovative Design Features of Water Valve Gate for Leak Prevention

• The water valve gate from Storaen (Cangzhou) International Trading Co. integrates multiple innovative features to prevent leakage.

• A key component is the soft sealing element, typically crafted from high-quality rubber or elastomer materials. This soft seal forms a tight and reliable barrier, effectively minimizing the risk of water seepage.

• Additionally, our water valve gatemodels often feature a three "O" ring seal design on the valve stem. This not only reduces friction but also provides an extra layer of protection against leakage.

• In the event of wear, the seal rings can be replaced without shutting down the entire system, ensuring continuous operation while maintaining a leak-free environment.

•

Corrosion - Resistant Materials in Globe Gate Valve and Other Gate Valve Products

Corrosion is a major concern in water systems, and our gate valve products, including the globe gate valve, are designed to address this issue head - on. The valve body of our gate valve models is constructed from ductile iron QT450 - 10, which offers excellent strength and durability while being relatively lightweight. This material is inherently resistant to corrosion, but we take it a step further by applying a non - toxic epoxy resin coating both inside and outside the valve body. This coating acts as an additional shield, protecting the valve from the corrosive effects of water, whether it’s clean water or sewage, ensuring a long service life for our globe gate valve and other gate valve products.

Applications of Leak - and Corrosion - Resistant Gate Valves in Different Sectors

The leak - and corrosion - resistant gate valve products from Storaen (Cangzhou) International Trading Co., such as water valve gate, find extensive use across multiple sectors. In municipal water supply systems, water valve gate models ensure reliable water distribution without the worry of leakage, conserving precious resources. In wastewater treatment plants, the corrosion - resistant properties of our gate valve products make them ideal for handling sewage. The globe gate valve variants are highly valued in industrial settings, where they can manage various water - based fluids in processes ranging from manufacturing to energy production, providing consistent and reliable flow control while withstanding harsh operating conditions.

Gate Valve FAQS

How does the design of water valve gate prevent leakage?

The water valve gate design from Storaen (Cangzhou) International Trading Co. prevents leakage through multiple mechanisms. The soft sealing element creates a tight fit, blocking any potential paths for water to escape. The three "O" ring seal design on the valve stem adds an extra layer of protection, reducing friction and preventing water from seeping through the stem area. These features work in tandem to ensure a reliable, leak - free operation in water systems.

What makes your globe gate valve corrosion - resistant?

Our globe gate valve is corrosion - resistant due to the choice of materials and additional protective measures. The valve body is made from ductile iron QT450 - 10, a material with inherent corrosion - resistant properties. Furthermore, a non - toxic epoxy resin coating is applied both inside and outside the valve body. This coating acts as a barrier, shielding the valve from the corrosive effects of water and other substances, ensuring long - term durability in various water - related applications.

Can gate valves be used in high - pressure water systems?

Yes, Storaen (Cangzhou) International Trading Co.’s gate valve products, are designed to handle a wide range of pressures. Our valves are constructed with high - strength materials and precision - engineered components to withstand the demands of high - pressure water systems. Whether it’s for industrial processes or large - scale water distribution, our gate valve models can provide reliable flow control while maintaining their leak - and corrosion - resistant properties.

How often should gate valves be maintained to prevent leakage and corrosion?

Regular maintenance is key to preventing leakage and corrosion in gate valve products. Inspections should be carried out periodically to check for any signs of wear, damage, or corrosion. Cleaning the valve and removing any debris can help maintain its performance. Lubricating moving parts, when necessary, ensures smooth operation. For our water valve gate models, following the recommended maintenance schedule provided by Storaen (Cangzhou) International Trading Co. will help extend their lifespan and keep them functioning optimally.

Are our water valve gate models suitable for both clean water and sewage systems?

Yes, our water valve gate models are suitable for both clean water and sewage systems. The corrosion - resistant materials used in their construction, such as ductile iron with an epoxy resin coating, can withstand the corrosive nature of sewage. The soft seal design and debris - resistant features ensure reliable operation in both types of systems, providing consistent flow control and preventing leakage, whether it’s for distributing clean water or managing wastewater.
