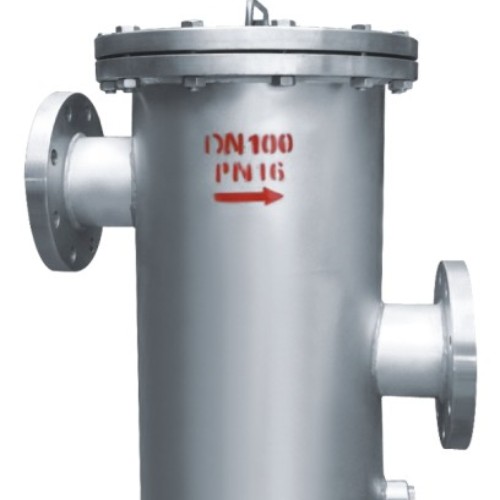

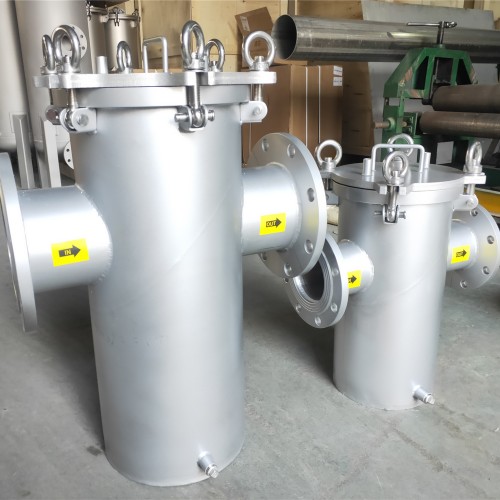

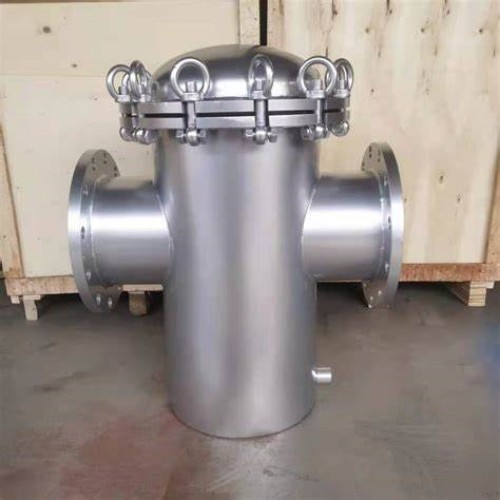

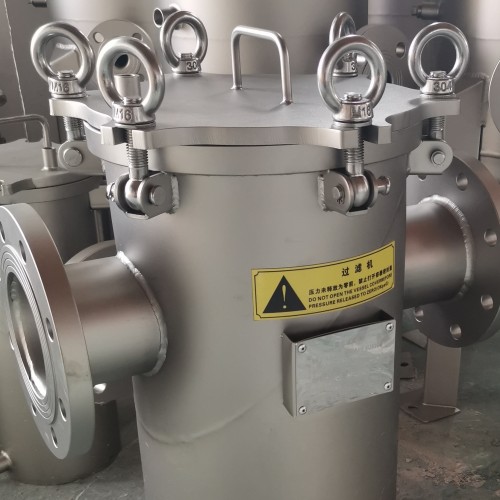

Flanged Connection Stainless Steel Basket Strainer

Medium temperature: ≤425 ℃

Medium: water, gas, oil, etc.

Caliber: DN25-300

Pressure: 1.6-4.0MPA

Body material: carbon steel, stainless steel

Način spajanja: prirubnica

Standard dizajna: Nacionalni standard



preuzmi u pdf
Detalji o proizvodu
Oznake proizvoda

PARAMETRI PROIZVODA:

Naziv dijela materijal
main body Carbon steel, stainless steel
Filter nehrđajući čelik





model Nazivni prečnik
(mm)		 Veličina (mm) B1 drain
L H H1 H2 f I Ⅱ Ⅲ
Basket filter 25 220 480 160 260 76 R1 / 2 " DN20
plane
RF 		 DN20
convex
M
32 220 495 160 270 76
40 280 550 180 300 114
50 280 550 180 300 114
65 330 650 220 350 140
80 340 740 260 400 168
100 420 880 310 470 219 R3 / 4 "
150 500 1175 430 620 273
200 560 1540 530 780 325
250 660 1890 640 930 426
300 750 2130 640 1200 478

PRODUCT ADVANTAGES:



The valve can be installed on the pipeline to remove large solid impurities in the fluid, so that machinery and equipment (including compressors, pumps, etc.)

and instruments can work and run normally, to stabilize the process and ensure the safety of production.

COMPANY ADVANTAGES:

1. Imamo tehnologiju lijevanja u pijesak ili precizno, tako da možemo kao dizajn i proizvodnju crteža.

2. Logotipi kupaca dostupni su na kućištu ventila.

3. Sve naše livenje s postupkom kaljenja prije obrade.

4. Koristite CNC strug tokom cijelog procesa.

5. Površina za brtvljenje diska se koristi za zavarivanje aparatom za plazma zavarivanje

6. Svaki ventil mora biti testiran prije isporuke iz tvornice, samo kvalifikovani može biti isporučen.

7. Vrsta ventila obično koristimo drvene kutije za pakiranje, također možemo prema
specifične zahtjeve kupaca.

  • Read More About stainless steel strainer basket
    1. Mi smo proizvođač od 1992.
  • Read More About stainless strainer basket
    2.CE,API,ISO odobren.
  • Read More About stainless steel strainer basket
    3.Brza dostava.
  • Read More About stainless steel basket strainer
    4.Low cijena uz visoku kvalitetu.
  • Read More About stainless steel strainer basket
    5.Profesionalni radni tim!
