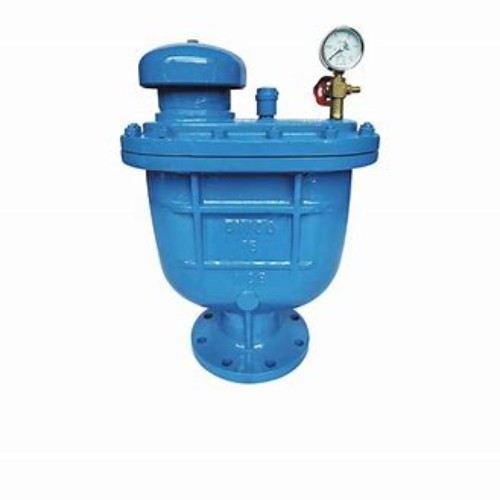

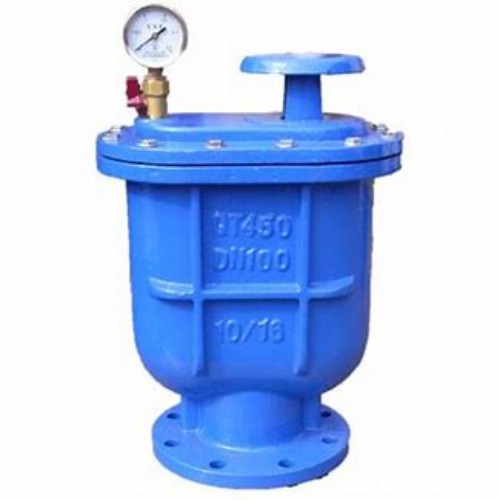

Compound exhaust valve CARX-10C

Mwayen: dlo
caliber: DN50-DN300
pressure: 1.0-1.6MPA
body material: WCB
connection method: flange
design standard: national standard



desann chaj nan pdf
Pwodwi detay
Tags pwodwi

PARAMÈT PWODWI:

Non Pati materyèl
Kò / Bonnet WCB
Float 304
Disk 304



modèl Presyon nominal
(MPA)		 Tès presyon (mpa) dlo Applicable temperature (℃) Mwayen aplikab
fòs sele
CARX-10C 1.0  1.50  1.10  ≤80℃ dlo



modèl Dyamèt nominal
(mm)		 Gwosè (mm)
L O C g bf n-φd
CARX-10C 50 320 165 125 99 19-3 4 * φ19
65 320 185 145 118 19-3 4 * φ19
80 350 200 160 132 19-3 8 * φ19
100 440 220 180 156 19-3 8 * φ19
125 490 250 210 184 19-3 8 * φ19
150 540 285 240 211 19-3 8 * φ23
200 700 340 295 266 20-3 8 * φ23
250 870 395 350 319 22-3 12 * φ23
300 1040 445 400 370 24.5-4 12 * φ23

OUR ADVANTAGES:

1.Nou gen sab oswa teknoloji Distribisyon Precision, Se konsa, nou ka kòm konsepsyon desen ou ak pwodiksyon.

2.Logo kliyan yo disponib jete sou kò valv la.

3. Tout Distribisyon nou yo ak pwosedi tanperaman anvan Processing.

4. sèvi ak CNC tour pandan tout pwosesis.

5. Sifas la sele disk itilize plasma soude machin soude

6. Chak valv dwe teste anvan livrezon soti nan faktori a, sèlman ki kalifye onescanbe anbake.

7.The kind valve we usually use Wooden cases to package,We also can according to specific      customer'srequests.
