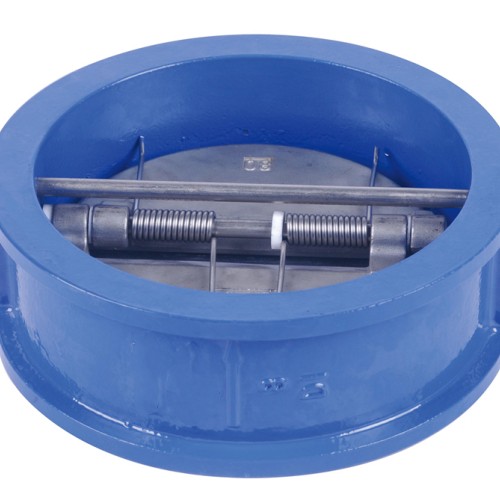

DH77X-10 Double Disc Wafer butterfly check valve

Read More About butterfly swing check valve

DH77X-10 Double Disc Wafer butterfly check valve

Tymheredd canolig: ≤80 ℃
Canolig: dwr
Caliber: DN40-600
Pressure: 1.0/1.6Mpa
Body material: gray cast iron / nodular cast iron
Connection method: Wafer type

CYSYLLTU NAWR lawrlwythiad i pdf

Manylion Cynnyrch

Tagiau Cynnyrch

PRODUCT PARAMETERS

Enw rhannau		Deunydd
Boned corff falf		Haearn llwyd
Glöyn byw		Haearn llwyd
Siafft falf		Dur carbon
Modrwy selio		NBR
spring		dur di-staen

Product Anatomy

Double Disc Check Valve

Math		Enwol pwysau （mpa）	Profi pwysau （mpa）		Addas tymheredd		Addas canolig
			Cryfder (Dŵr)	Amgaewch (Dŵr)
DH77X-10		1.0	1.50	1.10	≤80℃		dwr

Product Description

Double Disc Check Valve Outline and connecting measurement
Math	Enwol DN(mm)	Mesur （mm）
		L R		R		D			D0
DH77X-10	40	43		23.5		92			66
	50	43		28.5		106			66
	65	46		34.5		126			81
	80	64		44		135			95
	100	64		52.8		158			118
	125	70		66.5		190			146
	150	76		74.5		214			171
	200	89		87.5		270			225
	250	114		127		328			266
	300	114		147		378			311

Characteristic

Strwythur 1.Compact, dyluniad rhesymol, anhyblygedd falf da, taith esmwyth.

2.Y defnydd o bacio graffit hyblyg, selio dibynadwy, gweithredu ysgafn a hyblyg.

Ceisiadau:

Wafer style check valve industrial applications: Petroleum, Chemical, Paper, Making, Fertilizer,Coal Mining, Water Treatment and etc.

Introduction:

Small volume Compact structure and convenient maintenance

The dual plate can be self closed due to the elastic torque.

Fast closing can effective avoid the back-flowing

A class sealing, Zero leakage.

Easy installation, can be used to vertical and horizontal set up.

OUR ADVANTAGES:

1. We have Sand or Precision casting technology, So we can as your drawing design and production.

2. Customers' logos are available cast on the valve body.

3. All our stainless steel wafer check valves with tempering procedure before Processing.

4. Defnyddiwch y turn CNC yn ystod y broses gyfan.

5. The disc sealing surface use plasma welding machine welding.

6. Rhaid profi pob falf cyn ei ddanfon o'r ffatri, dim ond rhai cymwys y gellir eu cludo.

7.The split disc check valve we usually use Bags to package, We also can according to specific customer's requests.

WHY CHOOSE US:

1. We are a gost valve manufacturer, and produce dual disc check valve since 1992.

2. Fast delivery.

3. Low price with high quality.

4. Professional work Team!

We also provide other GOST valve, JIS valve, DIN valve, BS series, etc.
