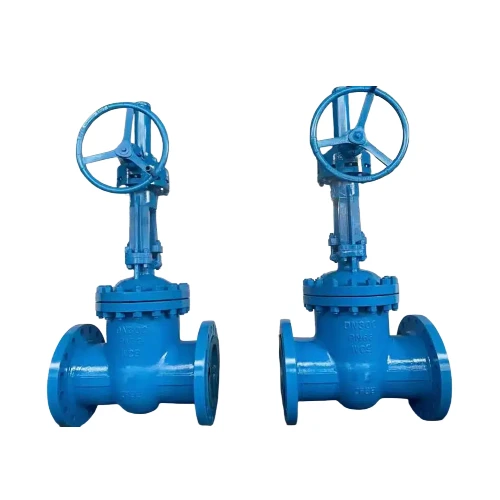

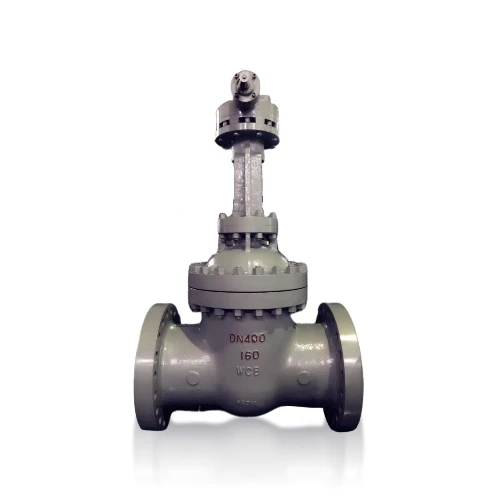

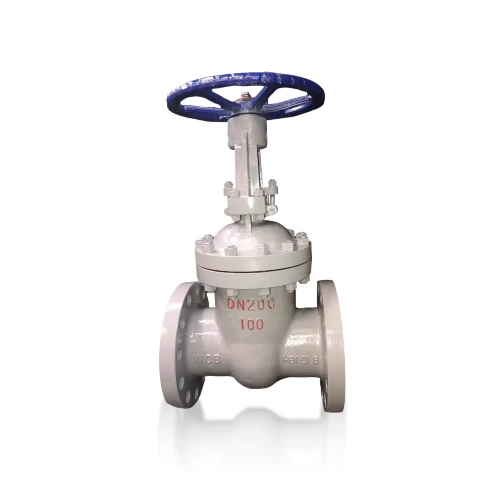

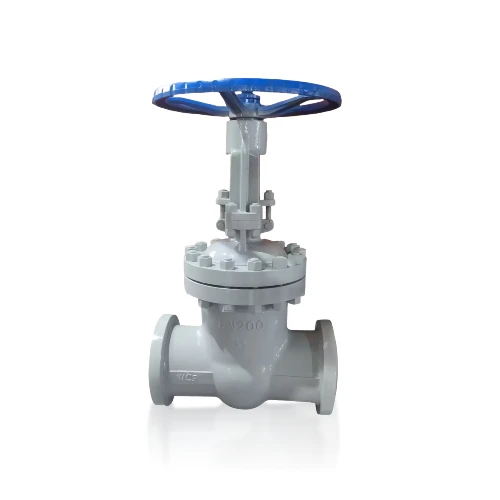

Z41H-100/160C/P High pressure flange gate valve

Operation method: manual

Միջին: ջուր

Caliber: DN15-500

Pressure: 10.0-16.0mpa

Body material: WCB/Stainless steel

Միացման եղանակը՝ եզր

ԿԱՊ ՀԻՄԱ ներբեռնել pdf-ում

Ապրանքի մանրամասերը

Ապրանքի պիտակներ

Performance parameter
Անուն	PN100	PN160
PN(MPa)	10.0MPa	16.0MPa
Shell strength test pressure (MPa)	1.5 Times the nominal pressure at room temperature
High-pressure sealing Test pressure (MPa)	1.1 Times the nominal pressure at room temperature
Operating pressure at room temperature (MPa)	According to GB/T 12224 pressure temperature rating

Main external and connection dimension
PN(MPa)	DN (մմ)	Size(mm)										Weight (kg)
PN(MPa)	DN (մմ)	L	D	D1	D2	D8	D6	b	Z-φd	H	D0	Weight (kg)
10.0	15	170	105	75	55	35	40	20	4-14	140	120	6.5
	20	190	125	90	68	45	51	22	4-18	140	120	9
	25	210	135	100	78	50	58	24	4-18	310	/	13
	32	230	150	110	82	65	66	24	4-23	320	/	20
	40	240	165	125	95	75	76	26	4-23	360	/	60
	50	250	195	145	112	85	88	28	4-25	490	360	50
	65	280	220	170	138	110	110	32	8-25	540	400	70
	80	310	230	180	148	115	121	34	8-25	572	400	100
	100	350	265	210	172	145	150	38	8-30	573	400	110
	125	400	310	250	210	175	176	42	8-34	744	560	180
	150	450	350	290	250	205	204	46	12-34	800	560	250
	200	550	430	360	312	265	260	54	12-41	800	560	360
	250	650	500	430	382	320	313	60	12-41	1050	640	560
	300	750	585	500	442	375	364	70	16-48	1200	720	795
	350	850	655	560	498	420	422	76	16-54	1430	800	1155
	400	950	715	620	558	480	474	80	16-54	1743	850	1370
	500	1150	815	724	635	584	576	89	24-54	2055	900	1785
16.0	15	170	110	75	52	35	40	24	4-18	230	200	7
	20	190	130	90	62	45	51	26	4-23	260	200	10
	25	210	140	100	72	50	58	28	4-23	280	280	14
	32	230	165	115	85	65	66	30	4-25	312	320	21
	40	260	175	125	92	75	76	32	4-27	350	320	26
	50	300	215	165	132	95	88	36	8-25	512	360	73
	65	340	245	190	152	110	110	44	8-30	560	360	110
	80	390	260	205	168	130	121	46	8-30	585	400	141
	100	450	300	240	200	160	150	48	8-34	631	450	185
	125	525	355	285	238	190	176	60	8-41	723	560	320
	150	600	390	318	270	205	204	66	12-41	820	640	462
	200	750	480	400	345	275	260	78	12-48	990	720	711
	250	838	580	485	425	330	313	88	12-54	1120	800	1010
	300	965	665	570	510	380	364	100	16-54	1300	850	1430
