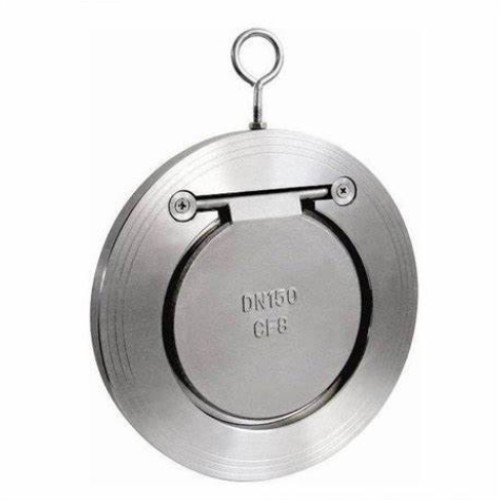

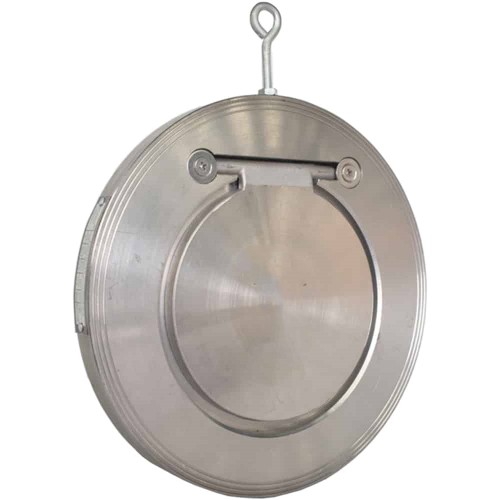

H74H / X-10 / 16/25/40 Wafer Disc Check Valve

Medium temperature: ≤400 ℃
Medium: water, sealed according to material selection
Caliber: DN50-1000
Pressure: 1.0-4.0mpa
Body material: Material: CF8 Ss304, CF8M Ss316,WCB

Connection method: Wafer type





download menyang pdf
Detail Produk
Tag produk

PARAMETER PRODUK:

diameteripun nominal
(mm)		 L D1 D
PN10 / 16 PN25 / 40 PN10 PN16 PN25
PN40		 PN40
50 15 19 25 104 104 109 109
65 15 19 38 125 125 129 129
80 16 19 46 140 140 144 144
100 16 19 71.5 160 160 170 170
125 17 19 95 185 185 196 196
150 19 29 114 220 220 226 226
200 26 29 140 270 270 286 293
250 29 38 188 330 331 343 355
300 38 51 216 380 386 403 420
350 38 45 263 440 446 460 477
400 48 55 305 491 495 517 549
450 48 60 356 541 558 567 574
500 58 70 406 596 620 622 626
600 68 78 482 698 732 734 745
700 70 80 562 813 804 831 -
800 75 95 664 918 912 942 -
900 75 95 738 1018 1012 1040 -
1000 90 100 846 1124 1126 1155 -



Jeneng Part materi
Badan / kap WCB / stainless steel
Disk WCB / stainless steel
Ring segel NBR / EPDM / PTFE / steel



model Tekanan nominal
(mpa)		 tes tekanan suhu sing tepat Media sing ditrapake
Kekuwatan (banyu) Disegel (banyu)
H74H / X-10 1.0  Working pressure * 1.5 Working pressure * 1.1 ≤400 ℃ Water and seal material selection
H74H / X-16 1.6
H74H / X-25 2.5
H74H / X-40 4.0

Tips:

1. Struktur kompak, desain cukup, rigidity tutup apik, wacana Gamelan.

2. Panggunaan packing grafit fleksibel, sealing dipercaya, operasi entheng lan fleksibel



Aplikasi:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.

PRODUCT ADVANTAGES:



1.We duwe Sand utawa Precision casting teknologi, Supaya kita bisa minangka drawing desain lan produksi.

2.Logo pelanggan kasedhiya ing awak tutup.

3. Kabeh casting kita karo prosedur tempering sadurunge Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7. Katup jenis sing biasane digunakake tas kanggo paket, Kita uga bisa miturut panjalukan customer tartamtu kang.

COMPANY ADVANTAGES:



  • Read More About wafer disc check valve
    1.We produsen Wiwit 1992.
  • Read More About disc check valve wafer type
    2. CE, API, ISO disetujoni.
  • Read More About wafer type disc check valve
    3. Pangiriman cepet.
  • Read More About wafer disk check valve
    4.Rega murah kanthi kualitas dhuwur.
  • Read More About wafer disk check valve
    5. Tim kerja profesional!
