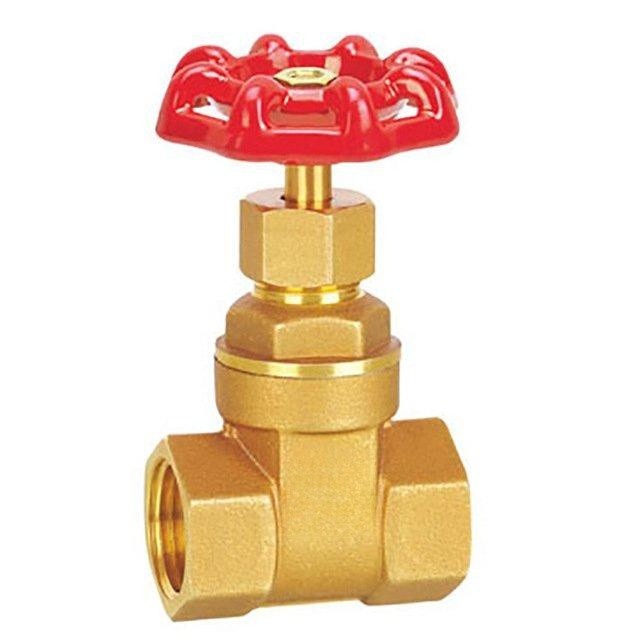

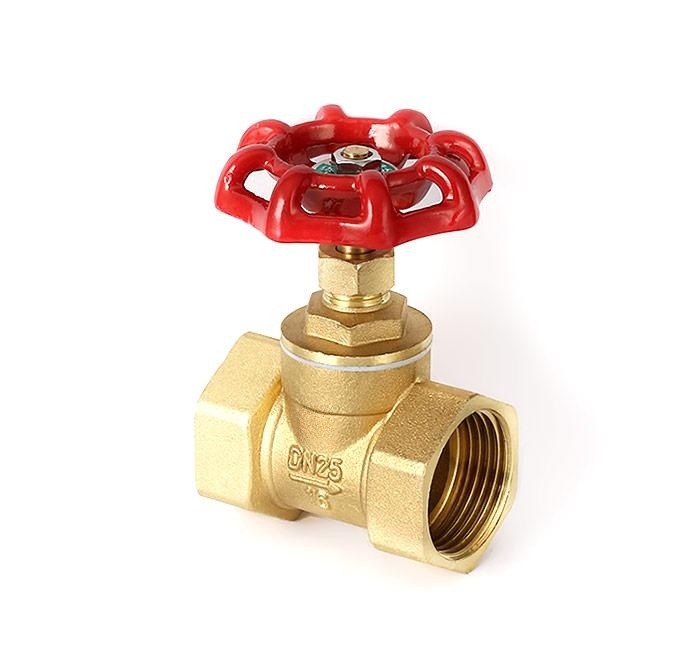

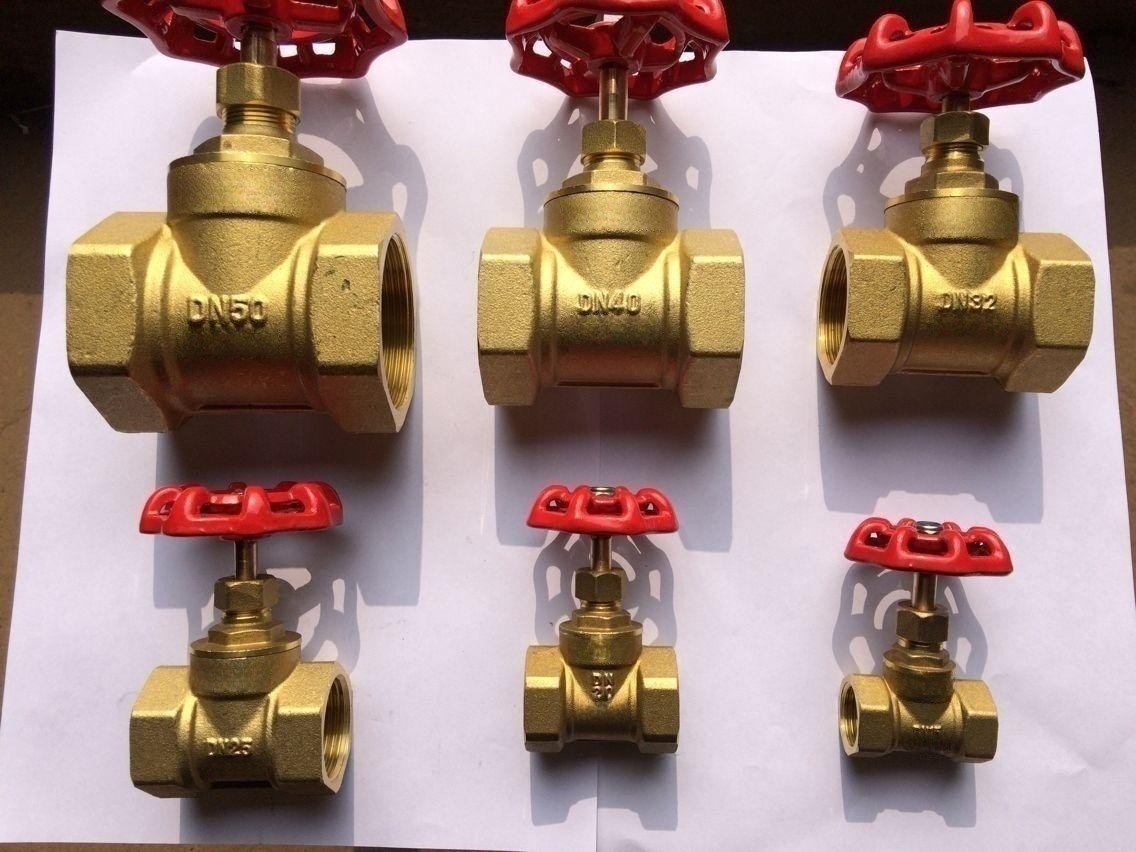

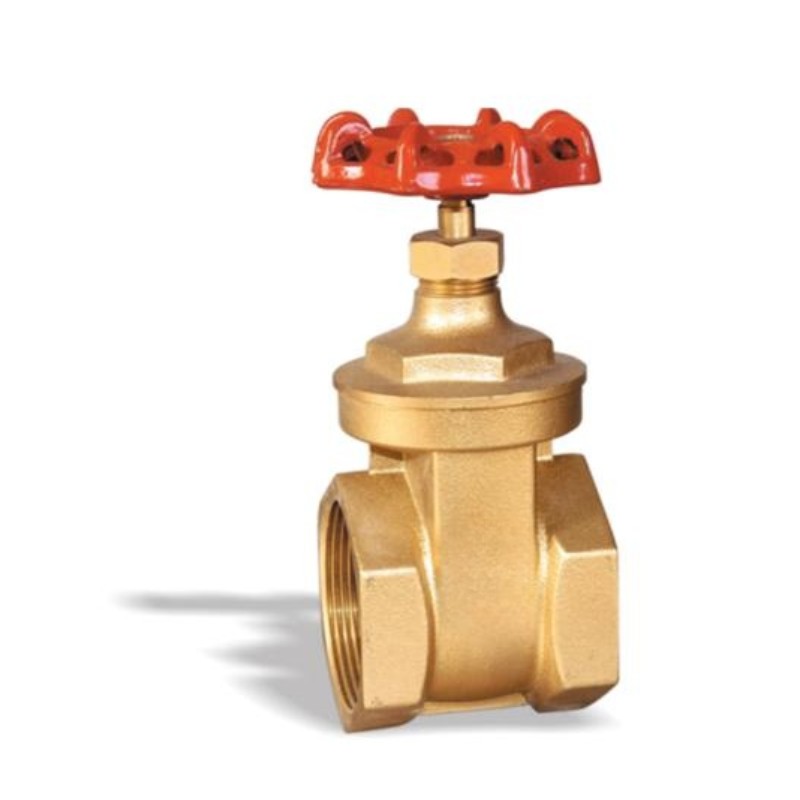

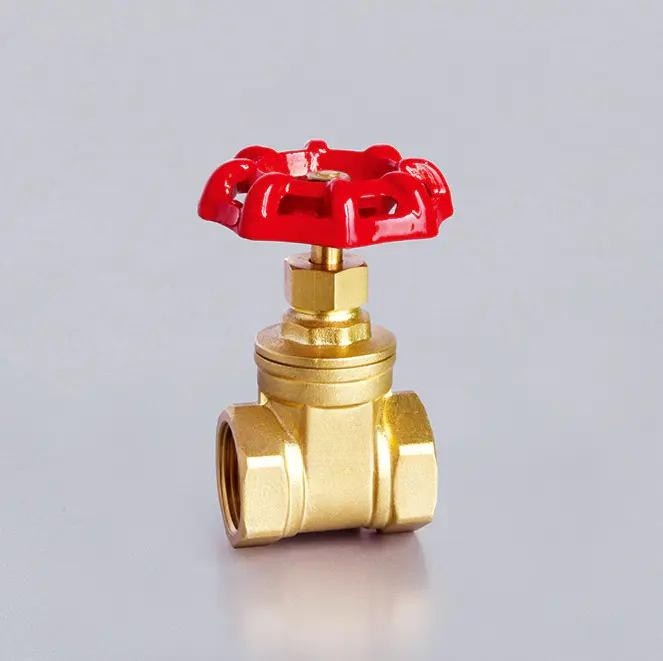

DN 8-100mm Albaabka Naxaasta

Qalabka: naxaas
Heerkulka dhexdhexaadka ah: -10-120 ° C
Habka hawlgalka: buug
Dhex dhexaad: biyo, saliid, gaas aan qudhun, gaas aan qudhun lahayn
Caliber: DN15-100
Nooca Valve: gate valve
Habka isku xirka: dunta
Cadaadiska shaqada: 1.6Mpa

HADDA LA XIRIIR hoos u dhig pdf

Faahfaahinta Alaabta

Tags Product

PRAMETERERS

Brass Gate Valve Z15W-16 Qaybaha iyo agabka ugu muhiimsan

Brass Gate Valve Z15W-16 Qaybaha iyo agabka ugu muhiimsan
Qalabka ugu muhiimsan	Naxaas
Cadaadis magac ahaan	1.6mpa
Heerkul ku habboon	-10℃≤T≤120℃
Dhexdhexaad ku habboon	Biyo, Saliid, aan qudhun lahayn, gaas aan qudhun lahayn
Dulqaad	NPT/BST/ISO228

Brass Gate Valve Z15W-16 Tilmaamaha iyo cabbirka isku xirka

Brass Gate Valve Z15W-16 Tilmaamaha iyo cabbirka isku xirka
Nooca	Magac ahaan DN (mm)	QAYBKA	Cabbirka (mm)
Nooca	Magac ahaan DN (mm)	QAYBKA	L	B	H	D
Z15W-16	15	1/2	41	12.5	67.5	53
	20	3/4	44	16.5	75	53
	25	1	51	20.5	80	57.5
	32	1 1/4	53	27	96.5	72
	40	1 1/2	58.5	33	111.5	72
	50	2	64.5	43	126.5	78
	65	2 1/2	76.5	54	156	97
	80	3	77.5	65	180	108
	100	4	91.5	86.5	226.5	126

Talooyin:

Qaab dhismeedka 1.Compact, naqshad macquul ah, qallafsanaanta waalka wanaagsan, marin siman.
2.Isticmaalka xirmooyinka garaafyada dabacsan, daboolida lagu kalsoonaan karo, iftiinka iyo hawlgalka dabacsan.
Codsiyada:
Codsiyada warshadaha: Batroolka, Kiimikada, Warqadaha samaynta, Bacriminta, Macdanta dhuxusha, daaweynta biyaha iyo iwm.
Faa'iidooyinka Shirkadda:
- 1.We are soo saaraha Tan iyo 1992.
- 2.CE,API,ISO waa la ansixiyay.
- 3.Dhakhso gaarsiinta.
- 4.Qiimaha hoose oo tayo sare leh.
- 5.Kooxda shaqada ee xirfada leh!
Faa'iidooyinka Alaabta:

1.We have Sand or Precision technology tuurista,Sidaas darteed waxaan awoodnaa sida design sawir iyo wax soo saarka.

Calaamadaha macaamiisha 2.Customers waxay diyaar u yihiin inay ku shubaan jirka waalka.

3.Dhammaan ku shubista habraaca xanaaqa ka hor inta aan la samayn.

4. Isticmaal lathe CNC inta lagu jiro habka oo dhan.

5. Dusha daboolida saxanku waxay isticmaalaan alxanka mashiinka alxanka balaasmaha

6. Waalle kasta waa in la tijaabiyaa ka hor inta aan laga keenin warshadda, kaliya kuwa aqoonta leh ayaa la rari karaa.

7.The nooca waalka aan sida caadiga ah u isticmaalno kiisaska Wooden in baakad, Waxaan sidoo kale awoodnaa sida waafaqsan
codsiyada macaamiisha gaarka ah.
