Introduction

Three-way needle valves are precision fluid control components utilized extensively across diverse industrial applications, including chemical processing, oil and gas, instrumentation, and analytical systems. Distinguished by their ability to either divert or mix fluid streams, they offer granular control unavailable in simpler on/off valve designs. Their design incorporates a tapered needle and a corresponding seat, enabling precise flow regulation even at very low flow rates. Unlike ball valves, which provide quick quarter-turn operation, needle valves prioritize accurate throttling. This guide provides a comprehensive overview of three-way needle valve technology, encompassing material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards. The increasing demand for precise fluid handling in complex processes drives the need for robust and reliable three-way needle valves capable of withstanding harsh environments and maintaining consistent performance.

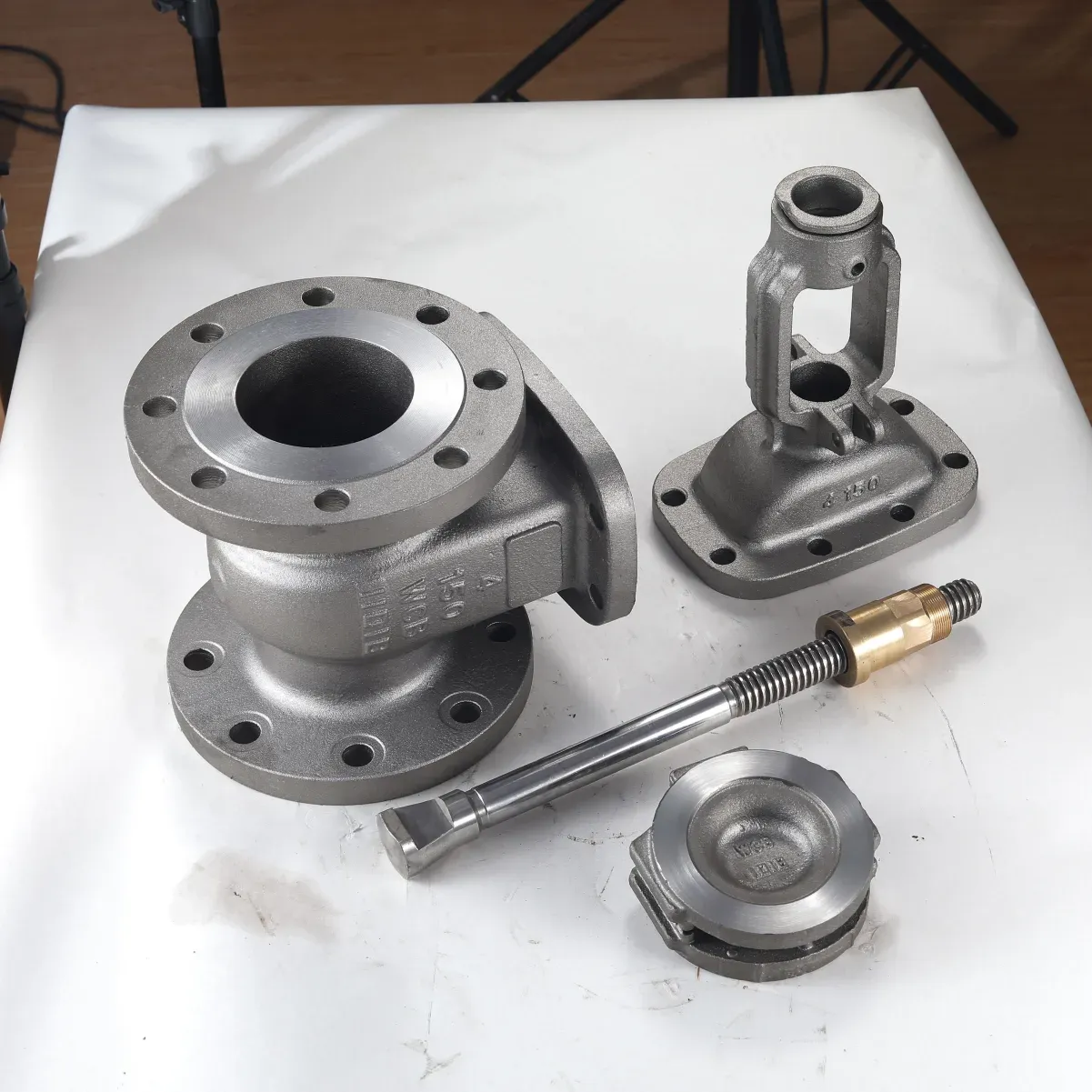

Material Science & Manufacturing

The core functionality and longevity of a three-way needle valve are intrinsically linked to the material selection and manufacturing precision. Valve bodies are commonly constructed from stainless steel (304, 316, 316L) due to its excellent corrosion resistance, especially in aggressive chemical environments. Alloy 20 is employed in exceptionally corrosive applications. For lower-cost applications or compatibility with specific fluids, brass (C36000) and certain polymer materials like PTFE (Teflon) and PEEK are utilized, primarily for seals and seats. The needle and seat, critical for flow control, require high hardness and wear resistance. These components are frequently made from hardened stainless steel (410, 420) or nitrided steel alloys. The manufacturing process typically begins with precision machining of the valve body, followed by intricate drilling and tapping operations to create the flow passages. The needle is ground to a precise taper to ensure a tight seal against the seat. Critical parameters during manufacturing include surface finish of the needle and seat (Ra < 0.8 µm is common), concentricity of the needle and body, and dimensional accuracy of the flow passages. Welding processes, where applicable (e.g., for multi-piece valve bodies), must be performed under controlled atmospheres to prevent oxidation and maintain material integrity. Post-manufacturing, rigorous testing, including leak testing (bubble leak test, helium leak test), and flow testing, is essential to verify functionality and quality.

Performance & Engineering

The performance of a three-way needle valve hinges on several key engineering considerations. Flow coefficient (Cv) dictates the valve’s capacity to handle a specific flow rate at a given pressure drop. Cv values are typically determined experimentally and vary significantly based on valve size, port configuration, and needle position. Pressure drop across the valve is a crucial parameter, particularly in systems where maintaining consistent pressure is critical. Force analysis during valve operation considers the torque required to turn the needle, which is influenced by the fluid viscosity, flow rate, and internal friction. Environmental resistance is paramount; valves intended for outdoor or hazardous locations must be rated according to ingress protection (IP) standards (e.g., IP67 for dust and water resistance) and explosion-proof certifications (e.g., ATEX, IECEx). Compliance requirements are often dictated by the specific industry. For example, pharmaceutical applications require valves compliant with 3-A Sanitary Standards, while food and beverage processing demands FDA approval for materials in contact with the fluid. The selection of stem seals (e.g., PTFE, Viton, graphite) is critical to prevent leakage and ensure long-term reliability. Stem seals are engineered to withstand specific temperature and pressure ranges and must be chemically compatible with the process fluid.

Technical Specifications

Parameter	Unit	Typical Value (1/4" Stainless Steel)	Notes
Maximum Pressure Rating	psi	1000	Dependent on material and temperature
Cv Value (Fully Open)	gpm	0.35	Varies with port configuration
Operating Temperature Range	°F	-60 to 400	Dependent on seal material
Port Connection Size	inches	1/4", 1/2", 3/4"	Available in various sizes
Body Material	-	316 Stainless Steel	Other materials available (Brass, Alloy 20, etc.)
Seal Material	-	PTFE	Viton, Graphite options available

Failure Mode & Maintenance

Three-way needle valves, despite their robust design, are susceptible to several failure modes. Internal leakage, a common issue, typically arises from wear on the needle and seat, resulting in a compromised seal. This can be exacerbated by particulate matter in the fluid stream causing abrasive wear. External leakage often occurs due to stem seal degradation, caused by temperature cycling, chemical attack, or mechanical damage. Fatigue cracking can develop in the valve body or stem under repeated stress, especially at high pressures and temperatures. Corrosion, particularly in harsh chemical environments, can lead to pitting and weakening of valve components. A key preventative maintenance practice is regular inspection of the valve body, stem, and seals for signs of corrosion, wear, or damage. Periodic lubrication of the stem threads (with compatible lubricants) reduces friction and extends the valve's lifespan. If internal leakage is detected, the needle and seat should be inspected and replaced if necessary. Stem seal replacement is recommended annually or as dictated by process conditions. Back-flushing the valve can help remove particulate matter and prevent abrasive wear. Proper installation, ensuring adequate support and avoiding excessive torque during tightening, is also crucial for preventing premature failure.

Industry FAQ

Q: What material selection considerations are most critical when handling highly corrosive fluids?

A: When dealing with corrosive fluids, the primary concern is material compatibility. 316L stainless steel offers excellent resistance to a broad range of chemicals, but for particularly aggressive environments, Alloy 20 or even exotic materials like Hastelloy may be necessary. The seal material is equally important; PTFE is generally a good choice for chemical resistance, but Kalrez or other perfluoroelastomers may be required for highly reactive substances. Thorough chemical compatibility testing is crucial before deployment.

Q: How does the port configuration (diverting vs. mixing) affect valve performance?

A: Diverting valves, where one inlet port directs flow to one of two outlet ports, generally have lower pressure drops than mixing valves. Mixing valves, which combine two inlet flows into a single outlet, create more turbulence and therefore higher pressure drops. The Cv value also differs between configurations; mixing valves typically have lower Cv values due to the increased flow resistance.

Q: What is the significance of the Ra value for the needle and seat surfaces?

A: The Ra (roughness average) value indicates the surface finish of the needle and seat. A lower Ra value (typically < 0.8 µm) provides a smoother sealing surface, reducing leakage and improving the valve's ability to tightly shut off flow. Higher Ra values increase friction and accelerate wear, leading to premature failure.

Q: What certifications are typically required for three-way needle valves used in pharmaceutical applications?

A: Pharmaceutical applications demand stringent compliance. Valves must be compliant with 3-A Sanitary Standards, ensuring hygienic design and cleanability. They often require FDA approval for materials in contact with the process fluid. Documentation verifying material traceability and clean-in-place (CIP) compatibility is also essential.

Q: What preventative maintenance practices are recommended to extend the service life of a three-way needle valve?

A: Regular inspection for signs of corrosion, wear, or leakage is crucial. Periodic lubrication of the stem threads prevents seizing and reduces operating torque. Back-flushing the valve removes particulate matter. Scheduled replacement of stem seals and, if necessary, the needle and seat, based on operating conditions and usage, is also recommended.

Conclusion

Three-way needle valves represent a critical component in numerous industrial processes requiring precise fluid control. Their functionality is deeply rooted in material science, meticulous manufacturing, and a thorough understanding of fluid dynamics. Selecting the appropriate materials, optimizing valve geometry for the intended application, and implementing a robust preventative maintenance program are all essential for ensuring long-term reliability and performance. The continuous advancement of material technologies and manufacturing techniques will further enhance the capabilities and durability of these valves, meeting the evolving demands of complex industrial systems.

The future of three-way needle valve technology will likely focus on miniaturization, smart valve functionalities (integrated sensors and actuators), and the development of even more chemically resistant materials. Predictive maintenance leveraging data analytics and condition monitoring will become increasingly prevalent, minimizing downtime and optimizing operational efficiency. Addressing the challenges posed by increasingly demanding applications and stringent regulatory requirements will drive innovation in this vital area of fluid control technology.
