ASME B16.5 CLASS 150 Forged Flange

Standard: ANSI B16.5

Pressure:CLASS 150,300,600,900

Size:1/2"-48"

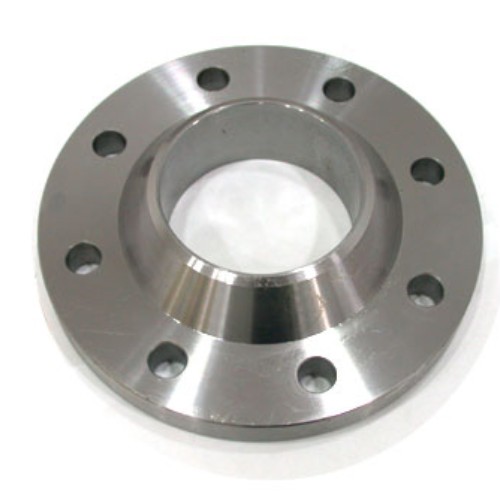

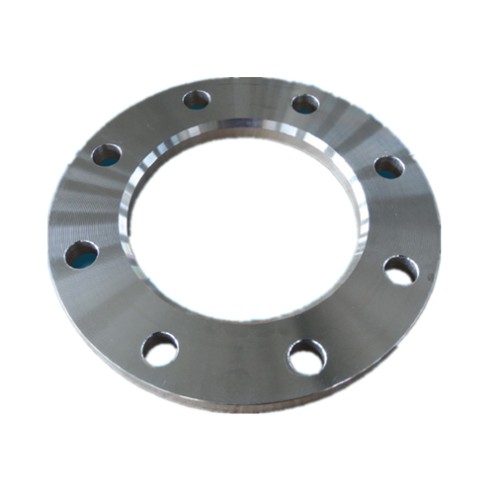

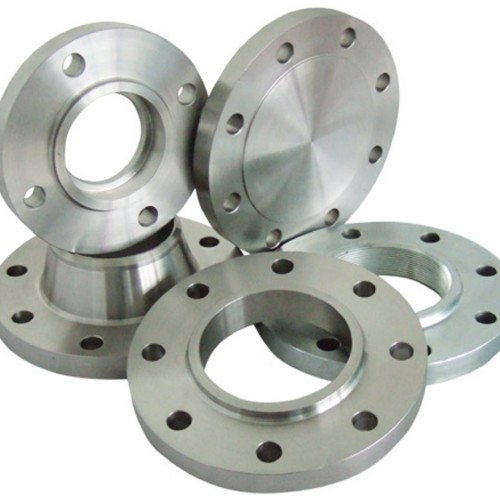

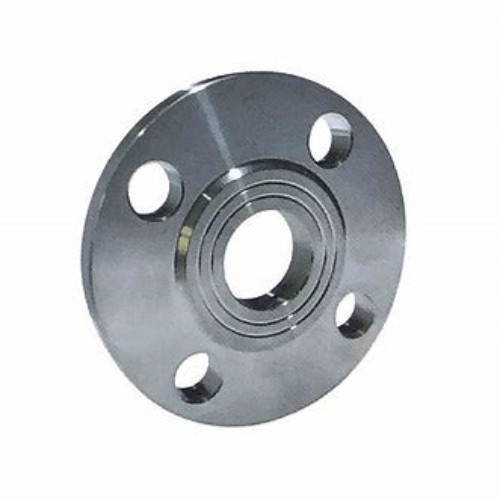

Type:WELDING NECK,SLIP ON,BLIND

Material:CS A105/SA105N,

SS 304/304L,316/316L

Coating:Black,yellow paint; rust-proof oil

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Nominal size	outer diameter	diameter	thickness	Diam.of Hub at Bevel	radius	Thrreat Length
1/2	88.9	30.2	11.2	21.3	3	15.7
3/4	98.6	38.1	12.7	26.7	3	15.7
1	108	49.3	14.2	33.5	3	17.5
11/4	117.3	58.7	15.7	42.2	5	20.6
11/2	127	65	17.5	48.3	6	22.4
2	152.4	77.7	19.1	60.5	8	25.4
21/2	177.8	90.4	22.4	73.2	8	28.4
3	190.5	108	23.9	88.9	10	30.2
31/2	215.9	122.2	23.9	101.6	10	31.8

PRODUCT ADVANTAGES:

1. Dimension and shape can be customized according to your drawings, meet different project situation.
2. Material: carbon steel, SS304, SS316, SS321, suitable for different medium.
3. We can help you get the bolts, nuts and washers matched with flange, for one-stop purchasing.
