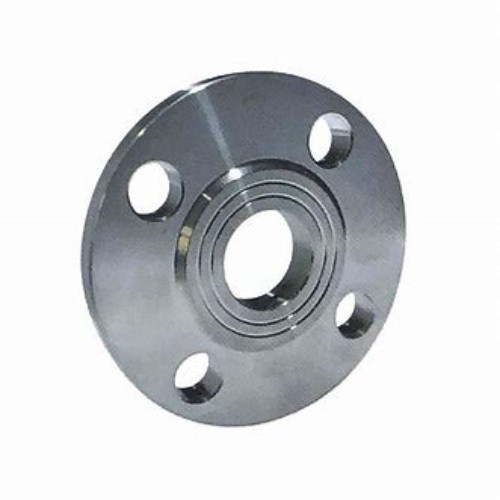

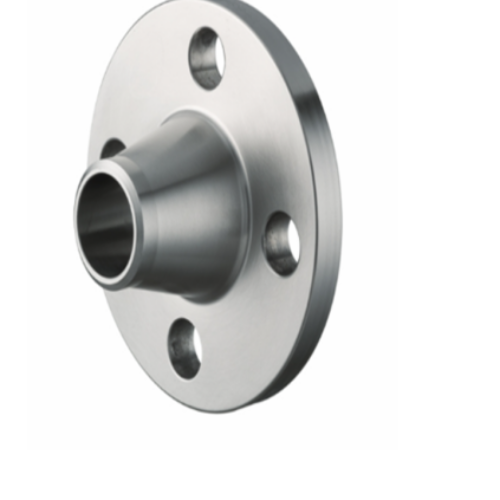

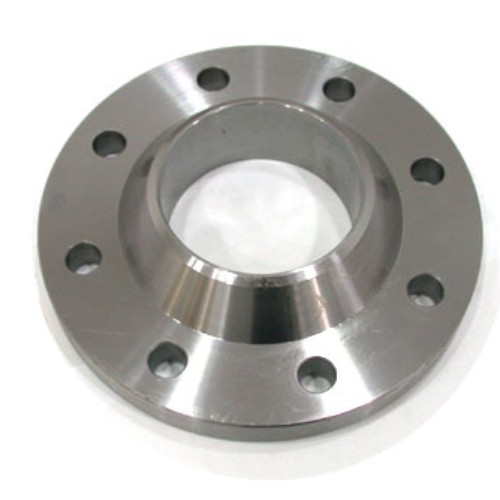

ASME B16.5 CLASS 300 Forged Flange

Standard: ANSI B16.5

Pressure:CLASS 150,300,600,900

Size:1/2"-48"

Type:WELDING NECK,SLIP ON,BLIND

Material:CS A105/SA105N,

SS 304/304L,316/316L

Coating:Black,yellow paint; rust-proof oil

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Nominal size	outer diameter	diameter	thickness	Diam.of Hub at Bevel	radius	Thrreat Length
1/2	95.3	38.1	14.2	21.3	3	16
3/4	117.3	48	15.9	26.7	3	16
1	124	54	17.5	33.5	3	18
11/4	133.4	64	19.1	42.2	5	21
11/2	155.4	70	20.6	48.3	6	23
2	165.1	84.1	22.4	60.5	8	29
21/2	190.5	100.1	25.4	73.2	8	32
3	209.6	117.3	28.6	88.9	10	32
31/2	228.6	133.4	30.2	101.6	10	37

PRODUCT ADVANTAGES:

1. Dimension and shape can be customized according to your drawings, meet different project situation.
2. Material: carbon steel, SS304, SS316, SS321, suitable for different medium.
3. We can help you get the bolts, nuts and washers matched with flange, for one-stop purchasing
