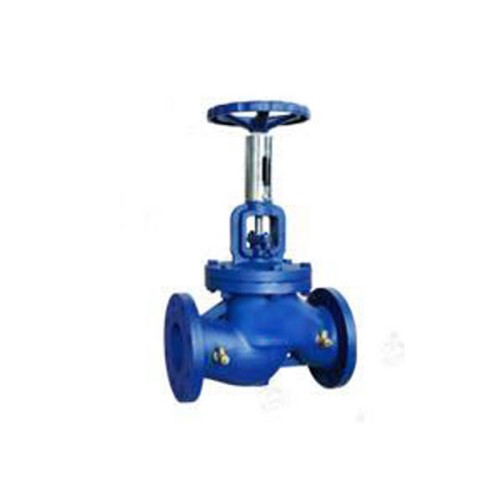

JP41F-16/16Q Ductile Iron Hydraulic Water Pump Balanced Valve

Medium temperature: ≤100 ℃

Operation method: manual

Medium: water

Caliber: DN20-150

Pressure: 1.6mpa

Body material: gray cast iron

Connection method: flange

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Balance Valve JP41F Material of main parts
Part Name		material
Valve body		grey cast iron
gate		grey cast iron
filler		Flexible graphite
Stem nut		brass

Application: This valve is an ideal product for heating systems.

Performance Specifications of Balance Valve JP41F
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
JP41F-16	1.60	2.40	1.76	0 ～ 100 ℃	water

Balance and connection dimensions of JP41F
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D	D1	D2	bf	N-φd
JP41F-16	25	160	115	85	65	16-2	4-14
	32	180	135	100	78	18-2	4-18
	40	200	145	110	85	18-3	4-18
	50	230	160	125	100	20-3	4-18
	65	290	180	145	120	20-3	4-18
	80	310	195	160	135	22-3	4-18
	100	350	215	180	155	24-3	4-18
	125	400	245	210	185	26-3	4-18
	150	480	280	240	210	28-3	8-23

PRODUCT ADVANTAGES:

Application: This valve is an ideal product for heating systems.

(1) Reduce power consumption: Since the entire water system is balanced, the refrigeration unit (boiler, heat exchanger) and water pump are guaranteed to operate in the best working condition, which has obvious energy-saving effects.

(2) Reduce wear and waste: By ensuring that the water flow will not exceed the original design, the durability of all equipment is guaranteed and the loss of copper pipes caused by excessive flow is avoided.

(3) Easy to use: The construction of the project is relatively flexible. The installation of the project can be completed in phases or the equipment can be used in phases without affecting the balance of the water system.

(4) Reduced workload: There is no need to perform cumbersome resistance calculations for the entire pipeline, speeding up the design.

(5) Convenient changes: When the water system in some areas needs to be redesigned, it will not affect the design and balance of the water system in other areas.

(6) Improve safety: Since the flow balance of the water system is performed automatically, the possibility of artificial destructive adjustment is eliminated.

(7) For designers: reduced workload and more flexibility.

(8) You can boldly use the off-program system: save pipes, corresponding materials and installation costs, and leave the work of balancing the hydraulic system to the dynamic flow balancing valve: you can avoid many other troubles caused by unbalanced water systems.
