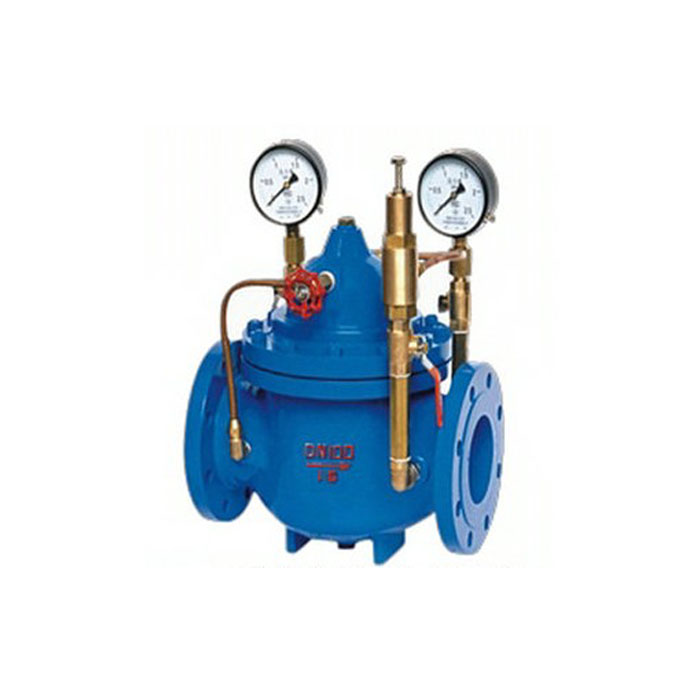

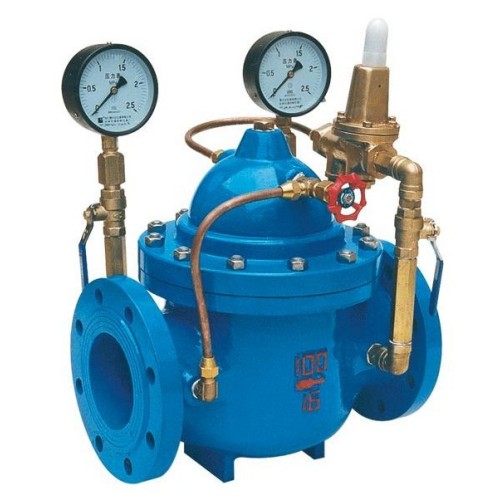

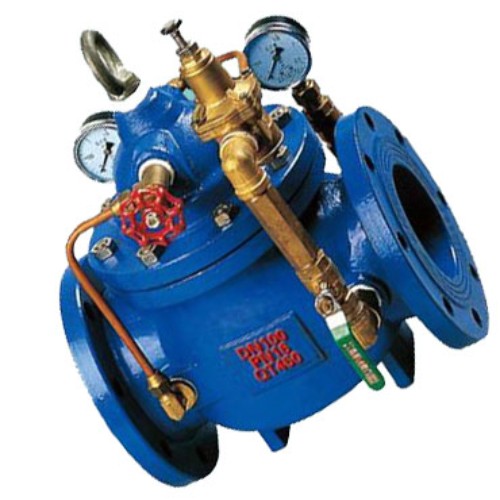

Reducing And Stabilizing Valve 200X

Medium: water

Use temperature: ≤50 ℃

Caliber: DN20-450

Pressure: 1.0-2.5MPa

Body material: cast iron

Connection method: flange

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Reducing And Stabilizing Valve 200X Material of main parts
Part Name		material
Valve body		cast iron
Valve stem		Chrome stainless steel

200X Performance Specification
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		case	Sealed (water)
Pressure reducing valve 200X	1 1.6 2.5	1.5 2.4 3.75	1.1 1.76 2.75	≤50 ℃	water

200X external dimensions and connection dimensions
DN	50	65	80	100	125	150	200	250	300	350	400
L	203	216	241	292	330	356	495	622	622	787	914
H1	210	215	245	305	365	415	510	560	560	696	735
H	395	406	430	510	560	585	675	730	760	840	910

PRODUCT ADVANTAGES:

Application: This valve can be an ideal product for high water demand and high sensitivity in domestic water and fire protection water systems.

1.200X pressure regulating valve is used in domestic water supply, fire water supply and other industrial water supply systems. By adjusting the pressure reducing pilot valve, the outlet pressure of the main valve can be adjusted.

2. The outlet pressure does not change due to changes in inlet pressure and inlet flow. The outlet pressure is safely and reliably maintained at the set value, and the set value can be adjusted as needed to achieve pressure reduction.

3. Precise pressure reduction, stable performance, safe and reliable, easy installation and adjustment, and long service life.
