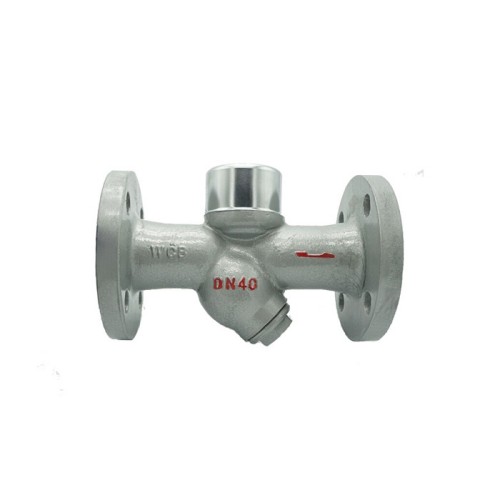

SC49H-16C / 25/40 trap

Medium temperature: ≤300 ℃

Medium: water, steam, oil, etc.

Caliber: DN15-DN50

Pressure: 1.6-4.0MPA

Body material: WCB

Connection method: flange

Design Standard: National Standard

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

SC49H-16C / 25/40 trap Material of main parts
Part Name	material
Valve body	WCB
Valve seat	35
Trim	1Cr18Ni9Ti

Main features: integral valve body design.

Trap valve SC49H performance specification
model	Nominal pressure (MPA)	Test pressure (mpa) water		Applicable temperature (valve seat: PTFE)	Applicable medium
		strength	seal
SC49H-16	1.6	2.40	1.76	≤425 ℃	Water, steam, oil, etc.
SC49H-25	2.5	3.75	2.75
SC49H-40	4.0	6.00	4.40

SC49H trap size and connection size
model	Nominal diameter (mm)	Size (mm) PN1.6 / 2.5 / 4.0Mpa
model	Nominal diameter (mm)	L	D	D1	D2	b	z-φd
SC49H-16C / 25/40	15	150	95	65	45	14	4 * φ14
	20	150	105	75	55	14	4 * φ14
	25	160	115	85	65	14	4 * φ14
	32	230	135	100	78	16	4 * φ18
	40	230	150	110	85	16	4 * φ18
	50	230	165	125	100	16	4 * φ18

It is not restricted by the installation direction, and the flow direction of the medium can be arbitrary.
2. Suitable for regular operation, opening and closing quickly, easily and with low fluid resistance.
3. Simple structure, relatively small size, light weight, easy maintenance and good sealing performance.
4. The materials of the valve body and valve core can be changed at will according to the usage conditions. The structure is simple, the sealing performance is good, and it is widely used.
