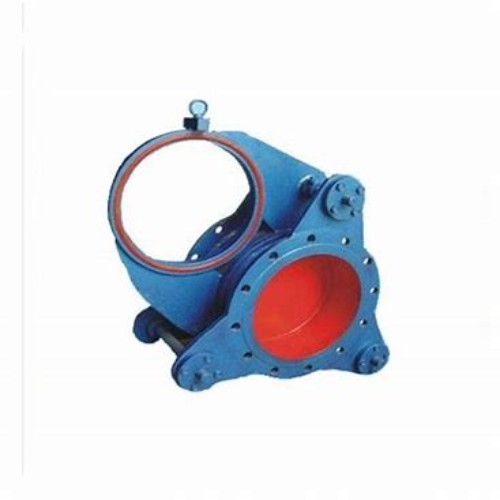

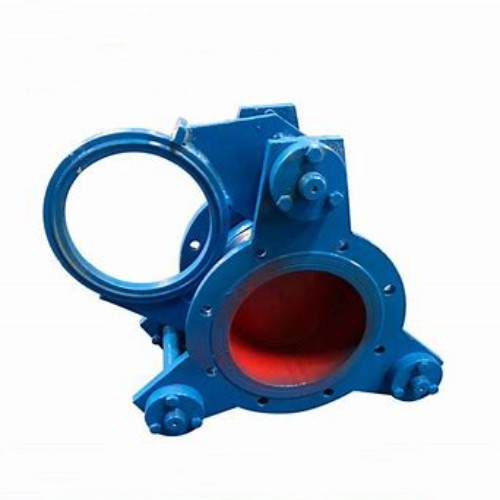

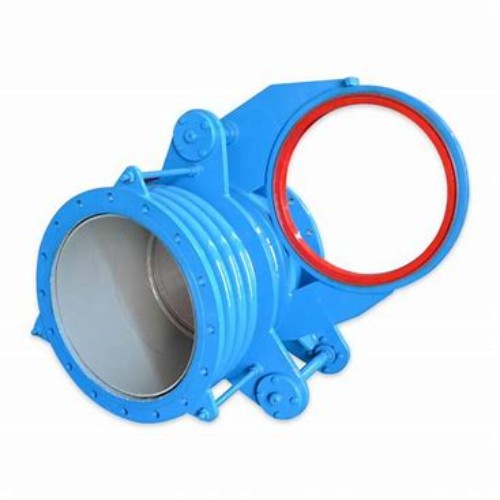

F43CX manual fan blind valve

Medium: Toxic, harmful and flammable gas such as gas

Operating temperature: ≤120 ° C NBR rubber
caliber: DN200-DN2000
pressure: 0.05-0.25MPA
valve body material: WCB
connection method: flange
design standard: national standard



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

F43CX manual fan blind valve Material of main parts
Part Name material
Body / Valve WCB
Connecting shaft / retractor WCB, 304
Sealing ring rubber



F43CX Performance Specification
model Nominal pressure
(MPA)		 Test pressure (mpa) water Applicable temperature (℃) Applicable medium
strength seal
F943CX-2.5 0.3  0.28  0.40  ≤120 ℃ nitrile rubber Toxic, harmful and flammable gases such as gas



Manual fan-shaped blind plate valve F43CX appearance size and connection size
model Nominal diameter
(mm)		 Size (mm)
Long series L Short series L D D1 b n-φd
F43CX-2.5 200 500 230 320 280 14 8 * φ18
250 500 250 375 335 14 12 * φ18
300 500 270 440 395 16 12 * φ22
350 500 290 490 445 16 12 * φ22
400 600 310 540 495 16 16 * φ22
450 600 330 595 550 20 16 * φ22
500 600 350 645 600 20 20 * φ22
6500 600 370 755 705 20 20 * φ26
700 600 390 860 810 20 24 * φ26
800 600 410 975 920 twenty two 24 * φ30



PRODUCT ADVANTAGES:

1.We have Sand or Precision casting technology,So we can as your drawing design andproduction.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.

COMPANY ADVANTAGES:

  • 1.We are manufacturer Since 1992.
  • 2.CE,API,ISO approved.
  • 3.Fast delivery.
  • 4.Low price with high quality.
  • 5.Professional work Team!
