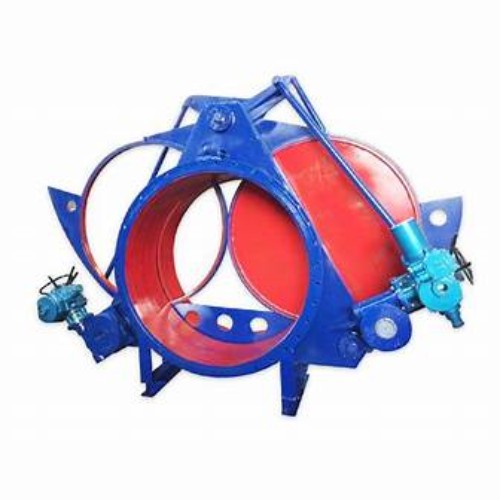

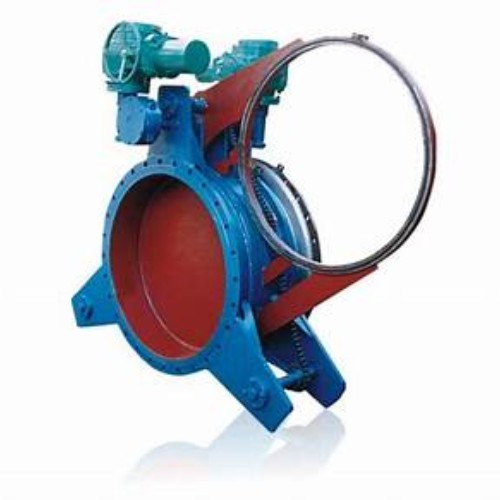

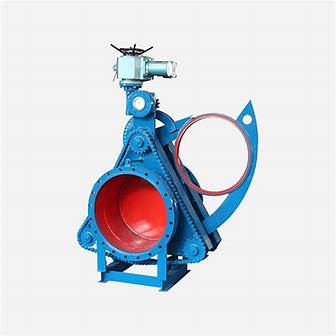

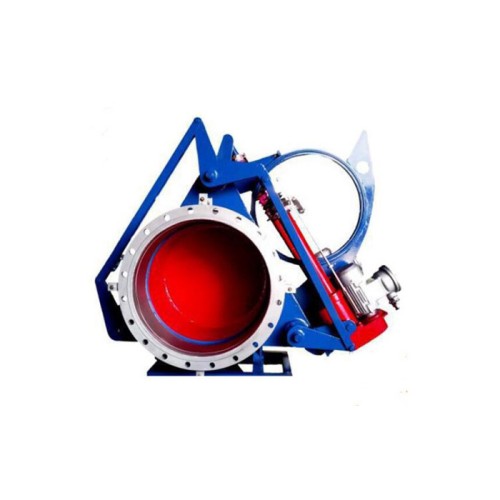

F943CX Electric blind valve

Medium: Toxic, harmful, and flammable gases such as gas
Use temperature: ≤120 ℃ Nitrile rubber
Caliber: DN50-DN300
Pressure: 0.05-0.25MPA
Body material: WCB
Connection method: Flange
design standard: GB



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

F943CX Electric blind valve Material of main parts
Part Name material
Body / Valve WCB
Connecting shaft / retractor WCB, 304
Sealing ring rubber



model Nominal pressure
(MPA)		 Test pressure (mpa) water Applicable temperature (℃) Applicable medium
strength seal
F943CX-2.5 0.3  0.28  0.40  ≤120 ℃ nitrile rubber Toxic, harmful and flammable gases such as gas



model Nominal diameter
(mm)		 Size (mm)
L D D1 A b n-φd
F943CX-2.5 300 500 440 395 480 18 12 * φ22
350 600 490 445 520 18 12 * φ22
400 600 540 495 600 twenty four 16 * φ22
450 600 595 550 658 twenty four 16 * φ22
500 600 645 600 712 26 20 * φ26
6500 600 755 705 874 26 24 * φ26
700 600 860 810 970 26 24 * φ26
800 800 975 920 1100 35 24 * φ30



PRODUCT ADVANTAGES:

1.We have Sand or Precision casting technology,So we can as your drawing design andproduction.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to specific customer' requests.

COMPANY ADVANTAGES:

  • Read More About electric valve for water
    1.We are manufacturer Since 1992.
  • Read More About electric valve
    2.CE,API,ISO approved.
  • Read More About electric valve
    3.Fast delivery.
  • Read More About electric valve for water
    4.Low price with high quality.
  • Read More About electric valve
    5.Professional work Team!
