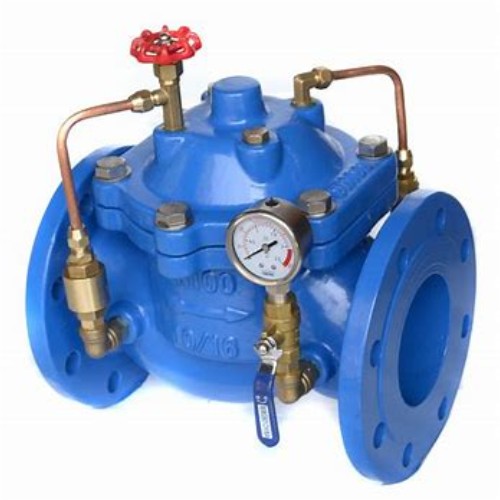

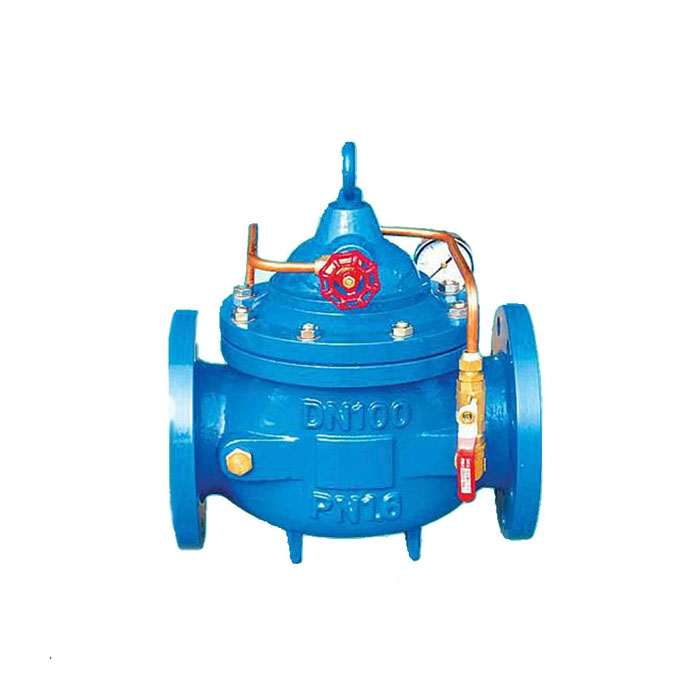

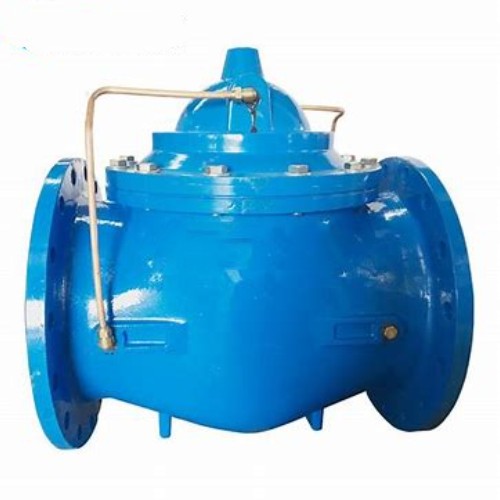

Delaying Close Check Valve 300X

Medium: water

Use temperature: ≤80 ℃

Caliber: DN25-450

Pressure: 1.0-2.5MPa

Body material: cast iron

Connection method: flange



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

Delaying Close Check Valve 300X Material of main parts
Part Name material
Valve body cast iron
Valve stem Chrome stainless steel





Slow-closing check valve 300X performance specification
model Nominal pressure
(mpa)		 Test pressure (mpa) proper temperature Applicable medium
case Sealed (water)
Slow-closing check valve 300X 1 1.6 2.5 1.5 2.4 3.75 1.1 1.76 2.75 ≤80 ℃ water



Slow-closing check valve 300X overall dimensions and connection dimensions
DN 50 65 80 100 125 150 200 250 300 350 400
L 203 216 241 292 330 356 495 622 622 787 914
H1 137 145 178 232 286 318 413 502 600 638 677
H 225 270 289 375 420 570 722 736 906 1025 1027



PRODUCT ADVANTAGES:



Application: This valve has the check function of opening and closing speed regulation. Applicable to industrial and mining enterprises, high-rise buildings are directly connected to the water supply and drainage system by pumps.

1.200X pressure regulating valve is used in domestic water supply, fire water supply and other industrial water supply systems. By adjusting the pressure reducing pilot valve, the outlet pressure of the main valve can be adjusted.
2. The outlet pressure does not change due to changes in inlet pressure and inlet flow. The outlet pressure is safely and reliably maintained at the set value, and the set value can be adjusted as needed to achieve pressure reduction.
3. Precise pressure reduction, stable performance, safe and reliable, easy installation and adjustment, and long service life.

COMPANY ADVANTAGES:
  • Read More About slow close check valve
    1.We are manufacturer Since 1992.
  • Read More About soft close check valve
    2.CE,API,ISO approved.
  • Read More About slow closing check valve
    3.Fast delivery.
  • Read More About soft close check valve for sump pump
    4.Low price with high quality.
  • Read More About slow closing check valve
    5.Professional work Team!
