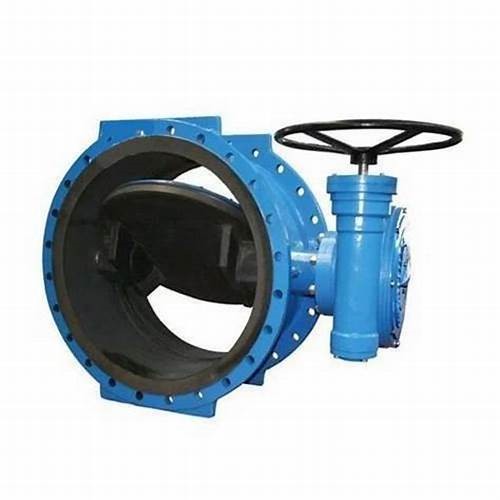

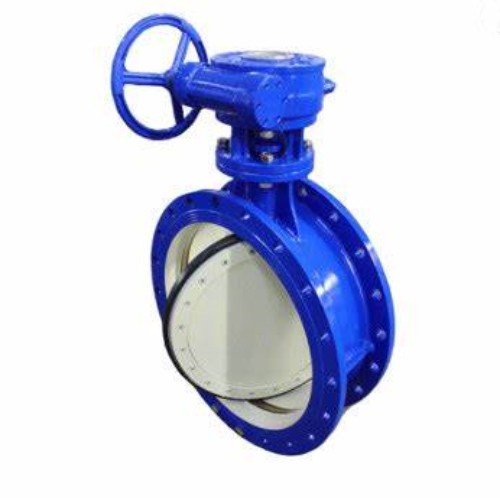

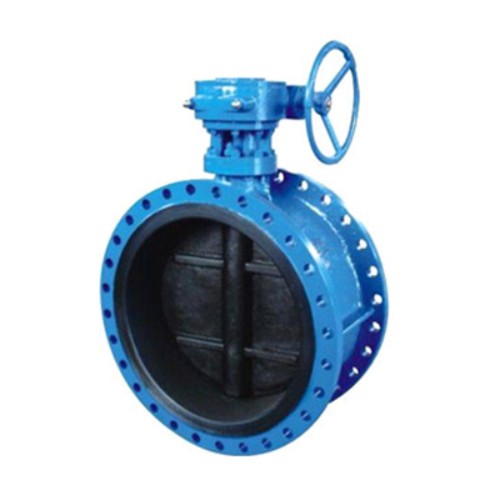

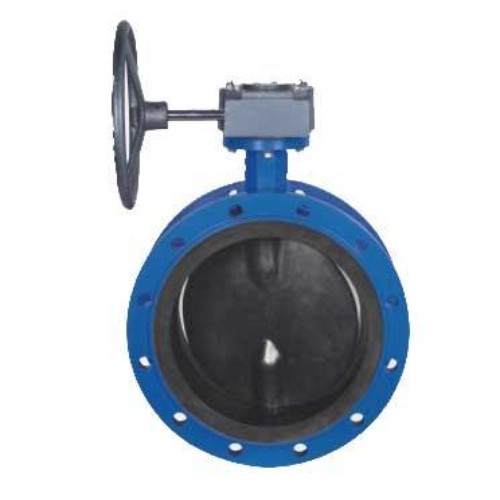

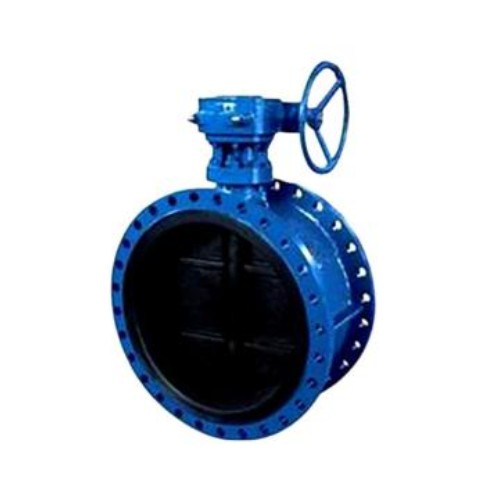

D341J-16 Rubber-lined Flange Butterfly Valve

Medium temperature: -10-80 ℃
Medium: water, oil, gas
caliber: DN50-1000mm
pressure: 1.0-1.6mpa
body material: ductile iron, carbon steel, stainless steel
connection method: flange



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

Part Name material
Valve body Ductile iron, carbon steel, stainless steel
Disc Ductile iron, carbon steel, stainless steel
Valve stem Stainless steel, carbon steel
Sealing ring EPDM, PTFE, VITION



model Nominal pressure
(mpa)		 Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
D341J-10 1.0  1.50  1.10  —10—80 ℃ Water, oil, gas
D341J-16 1.6  2.40  1.76



model Nominal diameter
(mm)		 L D
D1		 D1 n-d0
PN10 PN16 PN10 PN16 PN10 PN16
D341J-10 / 16 50 108 165 165 125 125 4 * φ18 4 * φ18
65 112 185 185 145 145 4 * φ18 4 * φ18
80 114 200 200 160 160 8 * φ18 8 * φ18
100 127 220 220 180 180 8 * φ18 8 * φ18
125 140 250 250 210 210 8 * φ18 8 * φ18
150 140 285 285 240 240 8 * φ22 8 * φ22
200 152 340 340 295 295 8 * φ22 12 * φ22
250 165 395 405 350 355 12 * φ22 12 * φ26
300 178 445 460 400 410 12 * φ22 12 * φ26
350 190 505 520 460 470 16 * φ22 16 * φ26
400 216 565 580 515 525 16 * φ26 16 * φ30
450 222 615 640 565 585 20 * φ26 20 * φ30
500 229 670 715 620 650 20 * φ26 20 * φ33
600 267 780 840 725 770 20 * φ30 20 * φ36

PRODUCT ADVANTAGES:

Application: This valve is used for opening and closing or regulating the flow of medium in the pipeline.

1.We have Sand or Precision casting technology,So we can as your drawing design andproduction.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.

COMPANY ADVANTAGES:

  • Read More About butterfly flange valve
    1.We are manufacturer Since 1992.
  • Read More About butterfly valve flange type
    2.CE,API,ISO approved.
  • Read More About flange end butterfly valve
    3.Fast delivery.
  • Read More About butterfly valve flange type
    4.Low price with high quality.
  • Read More About butterfly valve flange type
    5.Professional work Team!
