D343H-16C 2540 Triple Eccentric Butterfly Valve

Read More About triple offset butterfly valve

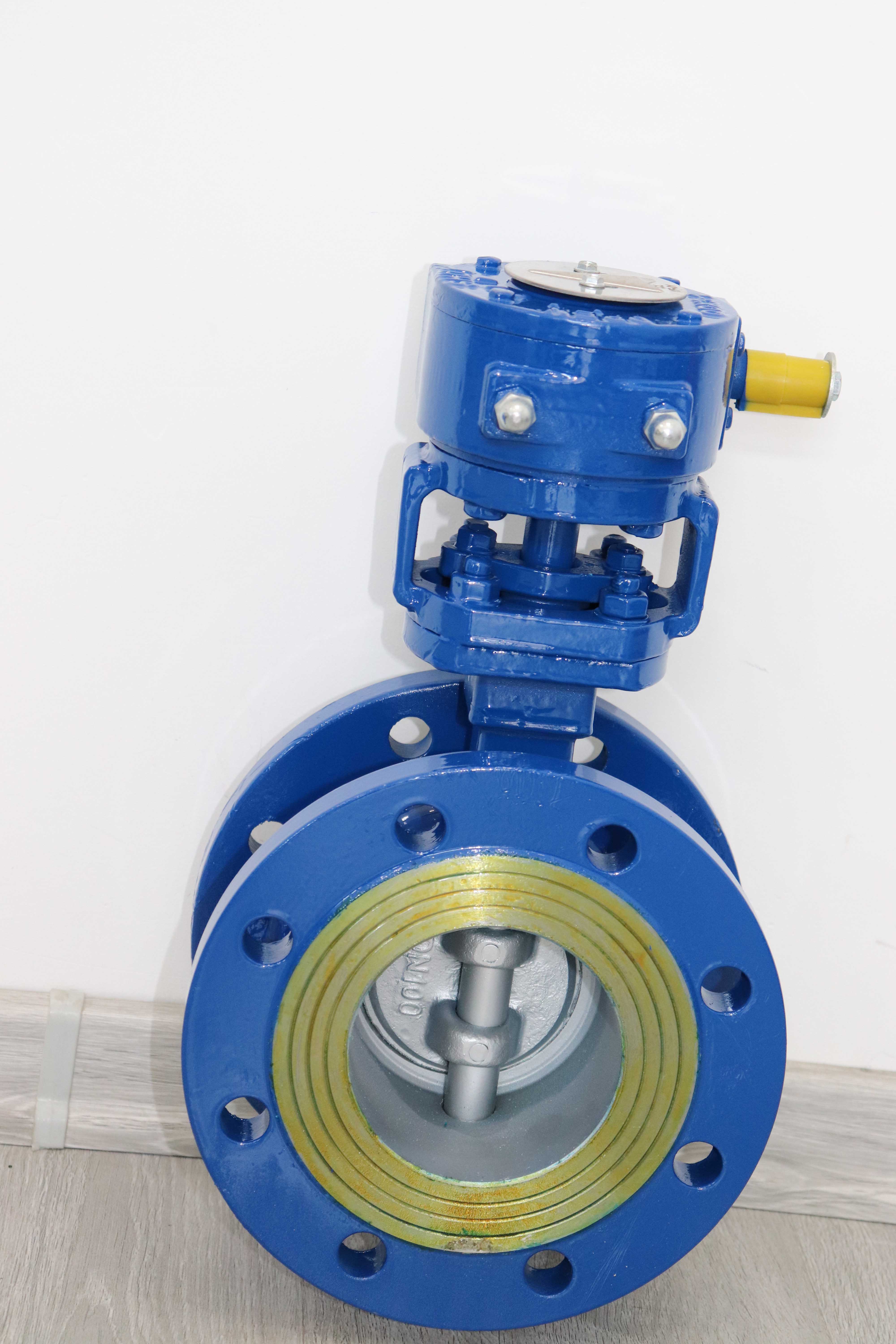

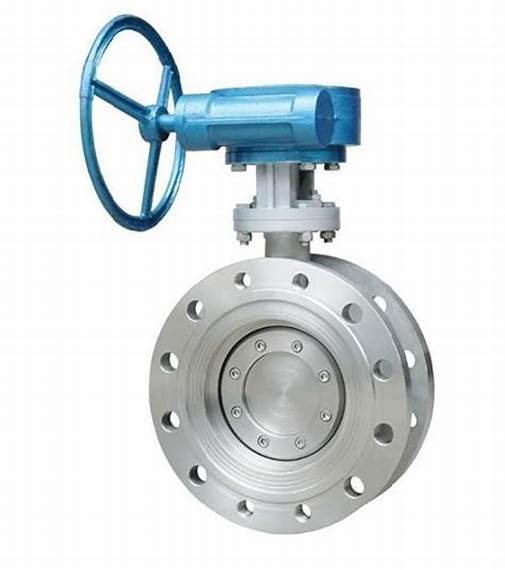

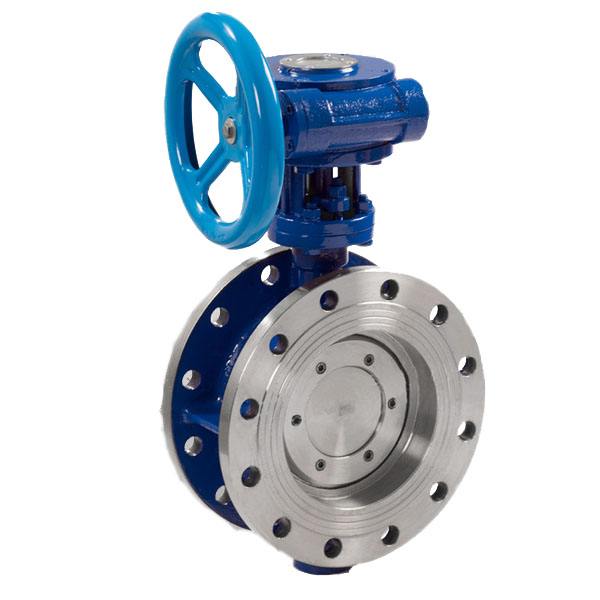

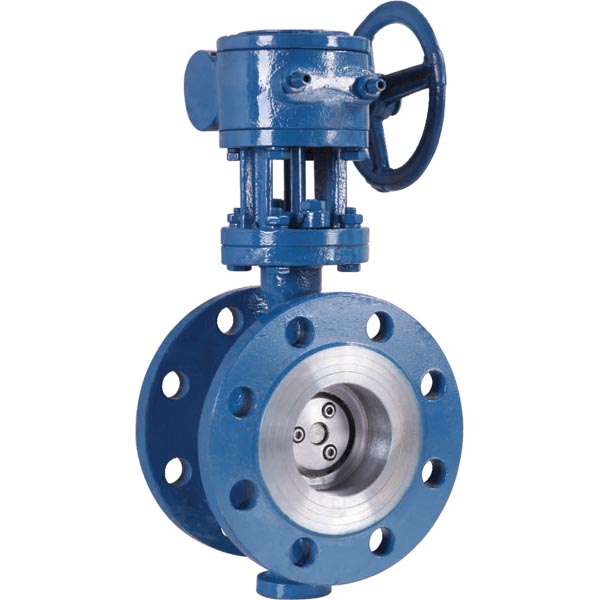

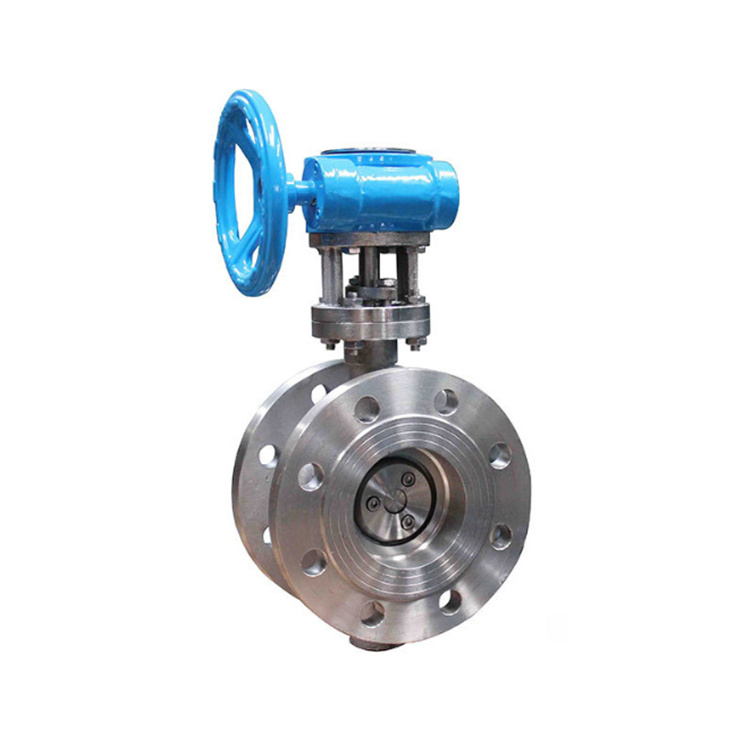

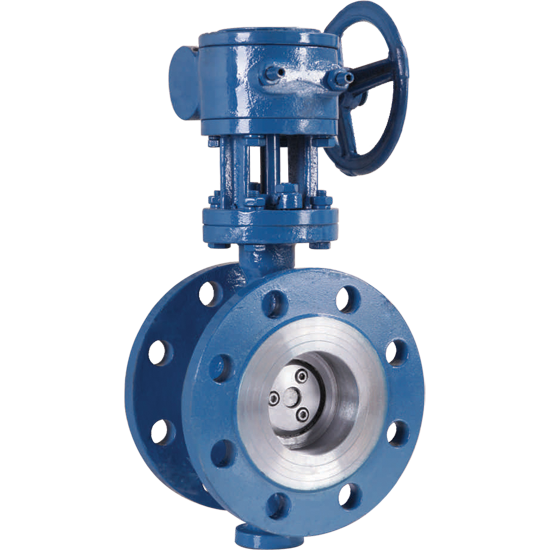

D343H-16C 2540 Triple Eccentric Butterfly Valve

Medium: water, steam, oil, etc.

Use temperature: ≤425 ℃

Caliber: DN50-DN2000

Pressure: 0.6-4.0MPA

Body material: cast steel

Connection method: flange

Design Standard: National Standard

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Part Name	material
Valve body	Cast steel
Butterfly	Cast steel, stainless steel
Sealing ring	Composition of stainless steel and high temperature resistant asbestos sheet
Valve stem	2CR13 / 1CR13
filler	Flexible graphite

model	Nominal pressure (MPA)	Test pressure (mpa) water		proper temperature	Applicable medium
		strength	seal
D343H-10	1.0	1.50	1.10	≤425 ℃	Water, steam, oil, etc.
D343H-16	1.6	2.40	1.76

model	Nominal diameter (mm)	L	1.0MPA
model	Nominal diameter (mm)	L	D	D1	D2	z-φd	D	D1	D2	z-φd	D	D1	D2	z-φd
	100	127	215	180	155	8 * φ18	220	180	156	8 * φ18	235	190	156	8 * φ22
	125	140	245	210	185	8 * φ18	250	210	184	8 * φ18	270	220	184	8 * φ26
	150	140	280	240	210	8 * φ23	285	240	211	8 * φ22	300	250	211	8 * φ26
D343H	200	152	335	295	265	8 * φ23	340	295	266	12 * φ22	360	310	274	12 * φ26
	250	165	390	350	320	12 * φ23	405	355	319	12 * φ26	425	370	330	12 * φ30
	300	178	440	400	368	12 * φ23	460	410	370	12 * φ26	485	430	389	16 * φ30
	350	190	500	460	428	16 * φ23	520	470	429	16 * φ26	555	490	448	16 * φ33
	400	216	565	515	482	16 * φ25	580	525	480	16 * φ30	620	550	503	16 * φ36
	450	222	615	565	532	20 * φ25	640	585	548	20 * φ30	670	600	548	20 * φ36
	500	229	670	620	585	20 * φ25	715	650	609	20 * φ33	730	660	609	20 * φ36
	600	267	780	725	685	20 * φ30	840	770	720	20 * φ36	845	770	720	20 * φ39
	700	292	895	840	800	24 * φ30	910	840	794	24 * φ36	960	875	820	24 * φ42
	800	318	1010	950	905	24 * φ34	1025	950	901	24 * φ39	1085	990	928	24 * φ48
	900	330	1110	1050	1005	28 * φ34	1125	1050	1001	28 * φ39	1185	1090	1028	28 * φ48

Company Advantages:

1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!

Product Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.
