D371X-10 Wafer centerline butterfly valve with turbine

Read More About centerline butterfly valve

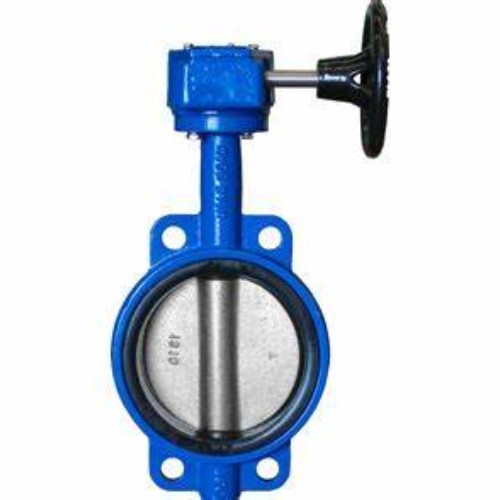

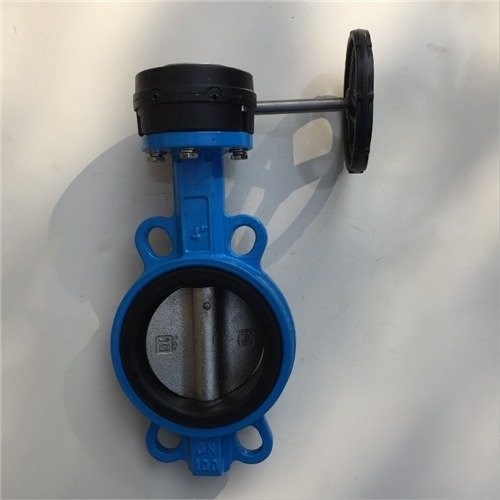

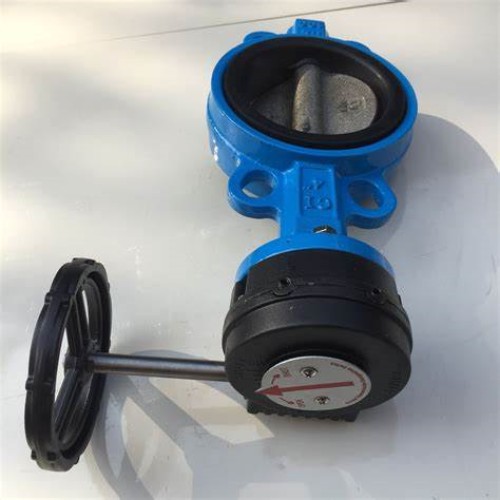

D371X-10 Wafer centerline butterfly valve with turbine

Medium temperature: ≤80 ℃
Medium: water
Size: DN40-1000
pressure: 1.0-1.6mpa
valve body material: gray cast iron / nodular cast iron
connection method: wafer type

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

model	Nominal diameter (mm)	Size (mm)
		φ		H		B	Z-φd		L
D371X-10 / 16	50	125		200		43	4-φ18		220
	65	145		220		46	4-φ18		220
	80	160		230		46	4-φ18		220
	100	180		240		52	8-φ18		220
	125	210		250		56	4-φ18		268
	150	240		265		56	4-φ23		268
	200	295		310		60	4-φ23		289
	250	355		340		68	4-φ25		289

Wafer Centerline Butterfly Valve Material of main parts
Part Name		material
Valve body		Grey cast iron / nodular cast iron
Seat		PTFE
Disc		Ductile iron
Axle		Carbon steel

model		Nominal pressure (mpa)	Test pressure (mpa)		proper temperature		Applicable medium
			Strength (water)	Sealed (water)
D371X-10		1.0	1.50	1.10	≤80 ℃		water
D371X-16		1.6	2.40	1.80	≤80 ℃		water

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.

PRODUCT ADVANTAGES:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Bags to package, We also can according to specific customer's requests.

8. Production Obviously advantages:

1)Wafter center line butterfly valve D71X/D371X-10/10Q/16/16Q

2)High- Performance & Multi-Material valve parts

3)OEM & ODM

4)All service life, easy assembly

5)Multi-color as per customer choice

6)Multi standard & Connection

COMPANY ADVANTAGES:

1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!
