Read More About threaded wye strainer

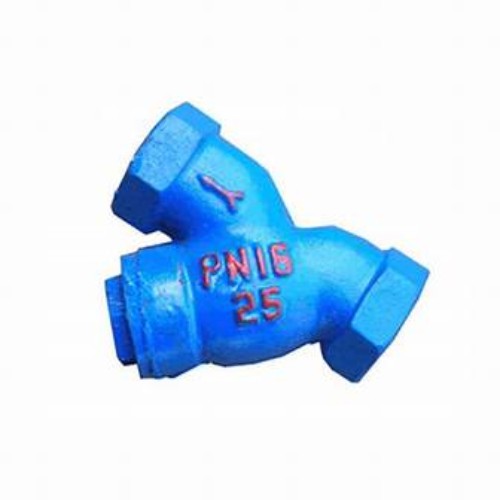

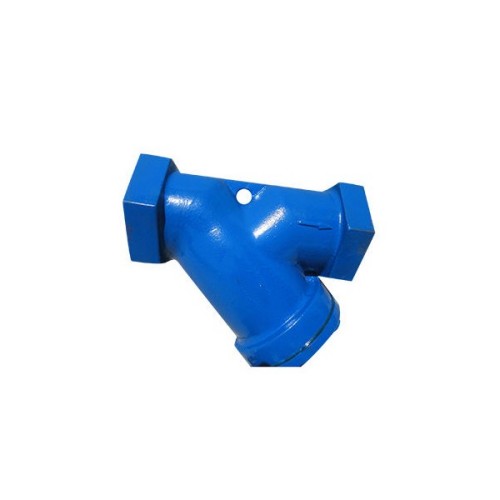

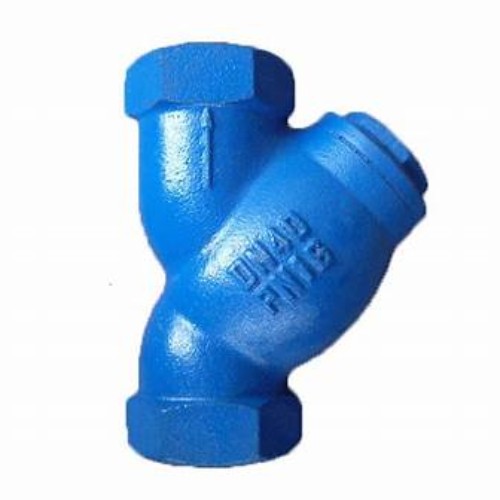

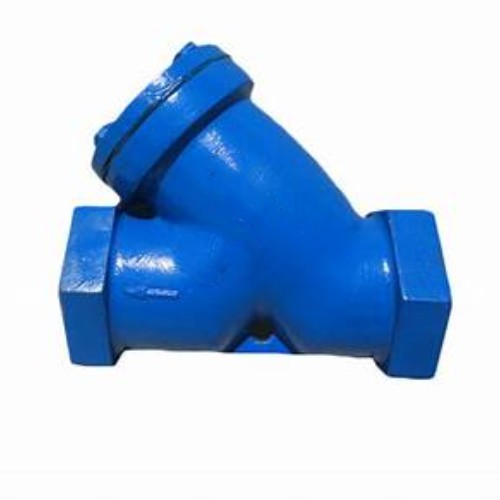

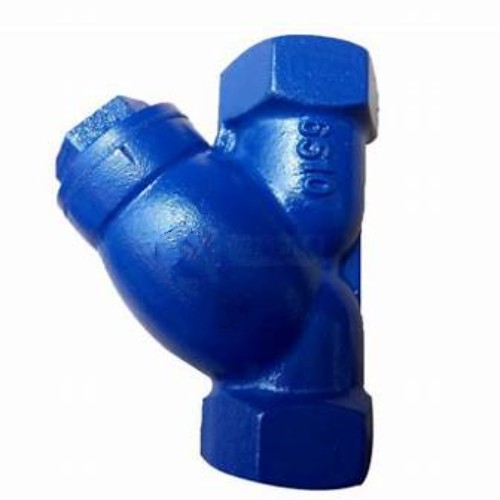

GL11H-16 Cast Iron Y type Thread Strainer

Medium temperature: 0-120 ° C

Medium: water, oil

Caliber: DN15-50

Pressure: 1.6mpa

Body material: gray cast iron

Connection: internal thread



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

Part Name material
Valve body grey cast iron
cap grey cast iron
Filter stainless steel





model Nominal pressure
(mpa)		 Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
GL11H-16 1.60  2.40  1.76  0-120 ℃ Water, oil



model Nominal diameter
(mm)		 Size (mm)
L G
GL11H 15 90 1/2
20 100 3/4
25 110 1
32 130 1 1/4
40 150 1 1/2
50 170 2



PRODUCT ADVANTAGES:

Application: This valve can filter dirt, rust and other debris in the medium.

1.We have Sand or Precision casting technology,So we can as your drawing design andproduction.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.

COMPANY ADVANTAGES:

  • Read More About threaded sink strainer
    1.We are manufacturer Since 1992.
  • Read More About threaded sink strainer
    2.CE,API,ISO approved.
  • Read More About y strainer threaded
    3.Fast delivery.
  • Read More About threaded sink strainer
    4.Low price with high quality.
  • Read More About threaded wye strainer
    5.Professional work Team!
