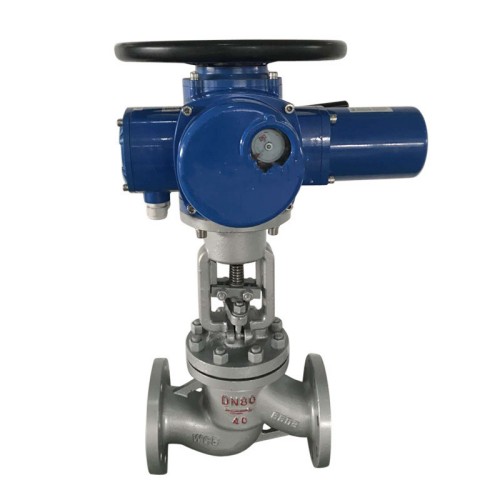

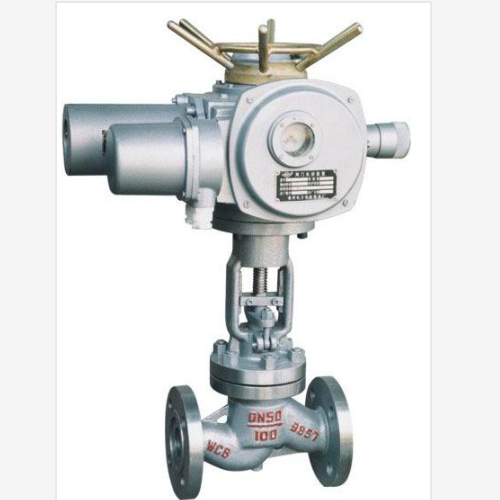

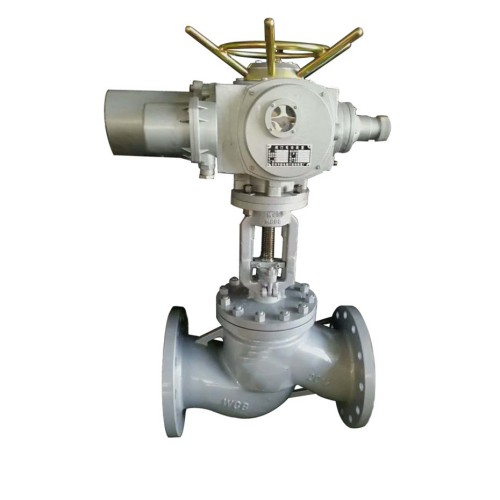

J941Y-16C Electric actuator globe valve

Medium temperature: ≤425 ℃
Operating mode: electric
medium: water, oil, steam, etc.
Caliber: DN50-1000
Pressure: 1.6-16.0mpa
Body material: WCB
Connection method: flange



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

Part Name material
Body / bonnet WCB
gate WCB
Valve stem WCB / 2cr13
Stem nut Ductile iron / brass



model Nominal pressure
(mpa)		 Test pressure (mpa) proper temperature Applicable medium
Strength (water) Sealed (water)
J941H / Y-16C 1.6  2.40  1.80  ≤425 ° C Water, Vapour, oil
J941H / Y-25C 2.5  3.80  2.80
J941H / Y-40C 4.0  6.15  4.51
J941H / Y-64C 6.4  9.75  7.15





model Nominal diameter
(mm)		 Size (mm)
L D D1 D2 bf z-φd H1
J941H / Y-16C 15 130 95 65 45 14-2 4 * φ14 205
20 150 105 75 55 14-2 4 * φ14 211
25 160 115 85 65 14-2 4 * φ14 223
32 180 135 100 78 16-2 4 * φ18 250
40 200 145 110 85 16-3 4 * φ18 288
50 230 160 125 100 16-3 4 * φ18 321
65 290 180 145 120 18-3 4 * φ18 341
80 310 195 160 135 20-3 8 * φ18 385
100 350 215 180 155 20-3 8 * φ18 437
125 400 245 210 185 22-3 8 * φ18 471
150 480 280 240 210 24-3 8 * φ23 516
200 600 335 295 265 26-3 12 * φ23 610





Tips:

  1.    1.Compact structure, reasonable design, good valve rigidity, smooth passage.

   2.The use of flexible graphite packing, reliable sealing, light and flexible operation





Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.





PRODUCT ADVANTAGES:

  1.We have Sand or Precision casting technology,So we can as your drawing design and production.

  1.   2.Customers' logos are available cast on the valve body.

  3. All our casting with tempering procedure before Processing.

  4. Use the CNC lathe during whole process.

  5. The disc sealing surface use plasma welding machine welding.

  6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

  7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.

COMPANY ADVANTAGES:

  • Read More About electric actuator globe valve
    1.We are manufacturer Since 1992.
  • Read More About electric actuator globe valve
    2.CE,API,ISO approved.
  • Read More About actuator globe valve
    3.Fast delivery.
  • Read More About actuator globe valve
    4.Low price with high quality.
  • Read More About actuated globe valve
    5.Professional work Team!
