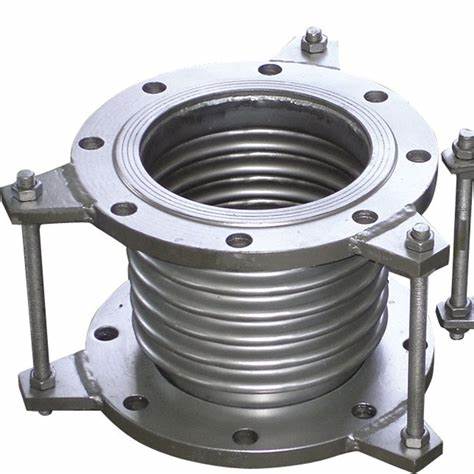

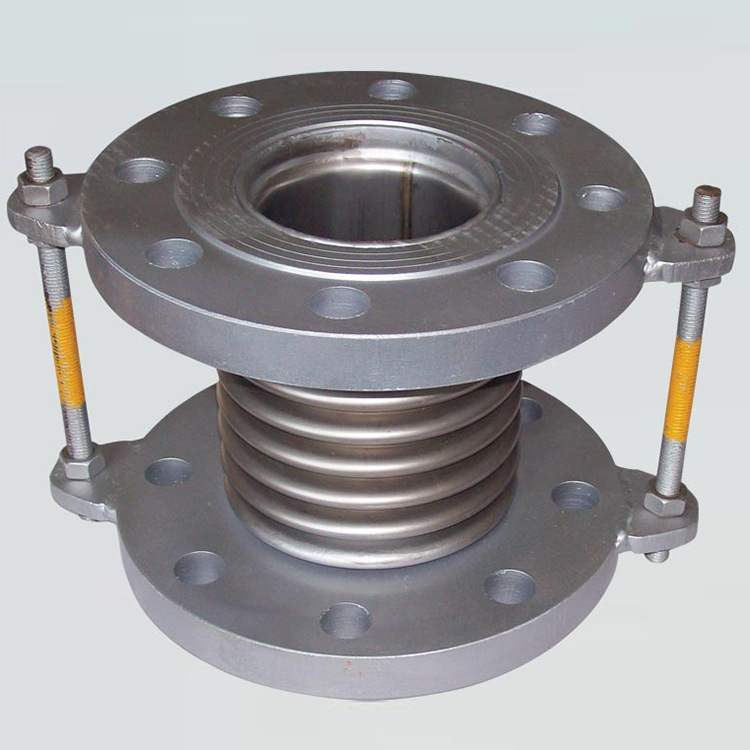

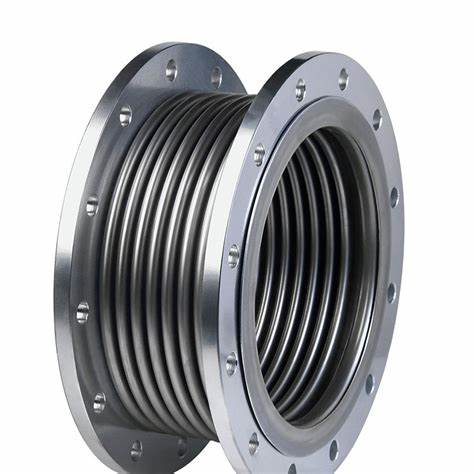

JDZ type axial internal pressure corrugated compensator

Medium: water, oil, steam

Caliber: DN32-2800

Pressure: 1.0-2.5mpa

Flange material: carbon steel stainless steel

Connection method: flange

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

JDZ type axial internal pressure corrugated compensator Material of main parts
Part Name		material
Flange		Carbon steel, stainless steel
Bellows		stainless steel

Application: It is mainly used for the connection of metal pipes that transport liquid, gas and other materials.

JDZ type axial internal pressure corrugated compensator

JDZ type axial internal pressure corrugated compensator dimensions and connection
model	Nominal diameter (mm)	Wave number	L	Maximum outer diameter size	Pressure rating MPa
					1	1.6	2.5
					Amount of axial compensation mm f9ⅡN / ram
JDZ type axial internal pressure corrugated compensator	32	8	110	110	20/26	18/63	15/98
	40	8	130	130	20/44	18/89	15/106
	50	8	150	150	20/70	18/70	15/138
	65	8	170	170	26/44	22/55	19/68
	80	8	200	200	34/33	28/41	24/54
	100	8	220	220	40/75	35/93	29/117
	125	8	240	290	66/36	58/45	50/56
	150	8	250	290	64/51	54/59	46/65
	200	8	280	340	59/52	53/58	48/78
	250	6	280	300	59/42	52/45	47/55
	250	8	340	360	87/35	79/39	71/47
	300	6	330	340	59/59	5265	47/71
	300	8	380	400	87/37	79/41	71/45
	350	6	360	340	59/67	52/74	47/81
	350	8	420	420	87/44	79/48	71/47
	400	6	360	340	59/62	52/68	47/75
	400	8	420	420	87/43	79/47	71/52
	450	6	360	340	87/37	79/41	71/45
	450	8	460	450	131/23	118/25	106/28
	500	6	450	340	87/68	79/75	71/82
	500	8	520	450	131/39	118/43	106/48
	600	6	480	380	87/85	79/94	71/103
	600	8	560	500	131/49	118/53	106/60

PRODUCT ADVANTAGES:

1. The compensator is a flexible structure installed on the container shell or pipe to compensate for the additional stress caused by temperature differences and mechanical vibration;

2. Due to the elastic compensation element that can be freely expanded and contracted,

3. It has the advantages of reliable operation, good performance and compact structure.

4. It has been widely used in chemical industry, metallurgy, electric power, nuclear energy and other departments.

5. It has good effects on shockproof, vibration reduction, vibration absorption and noise reduction.
