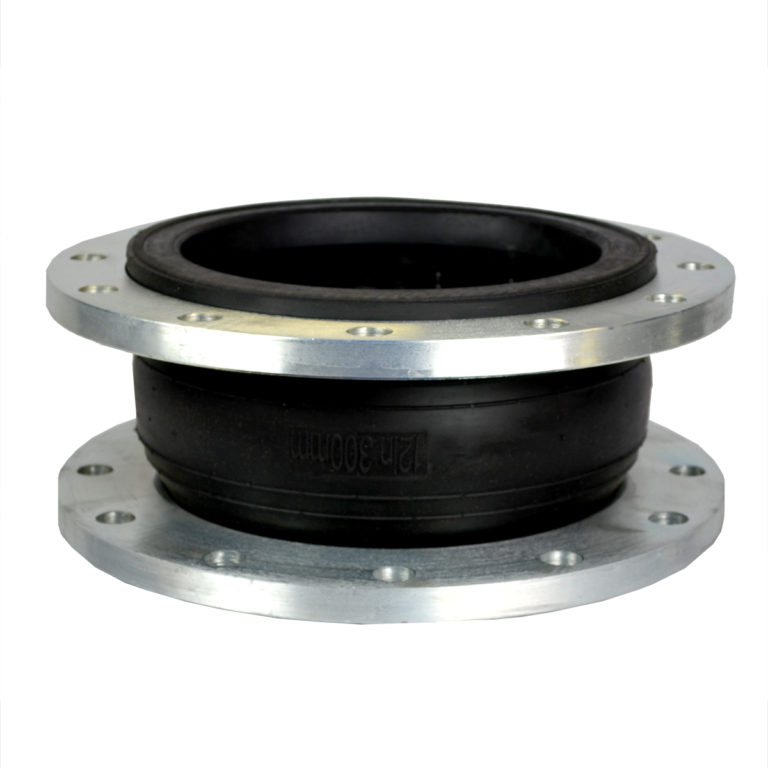

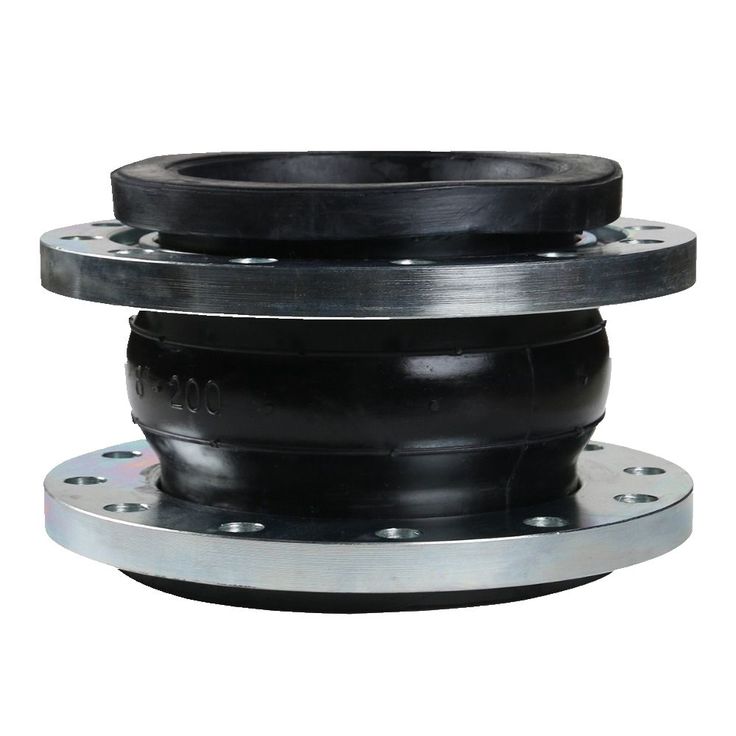

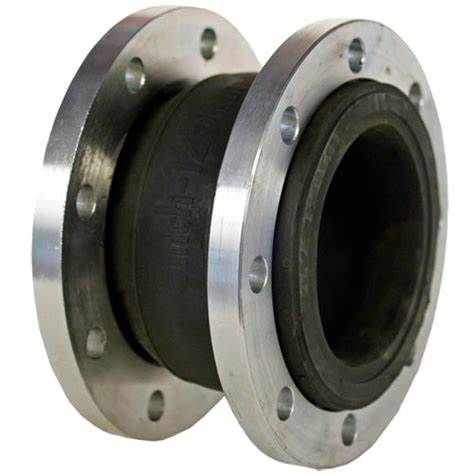

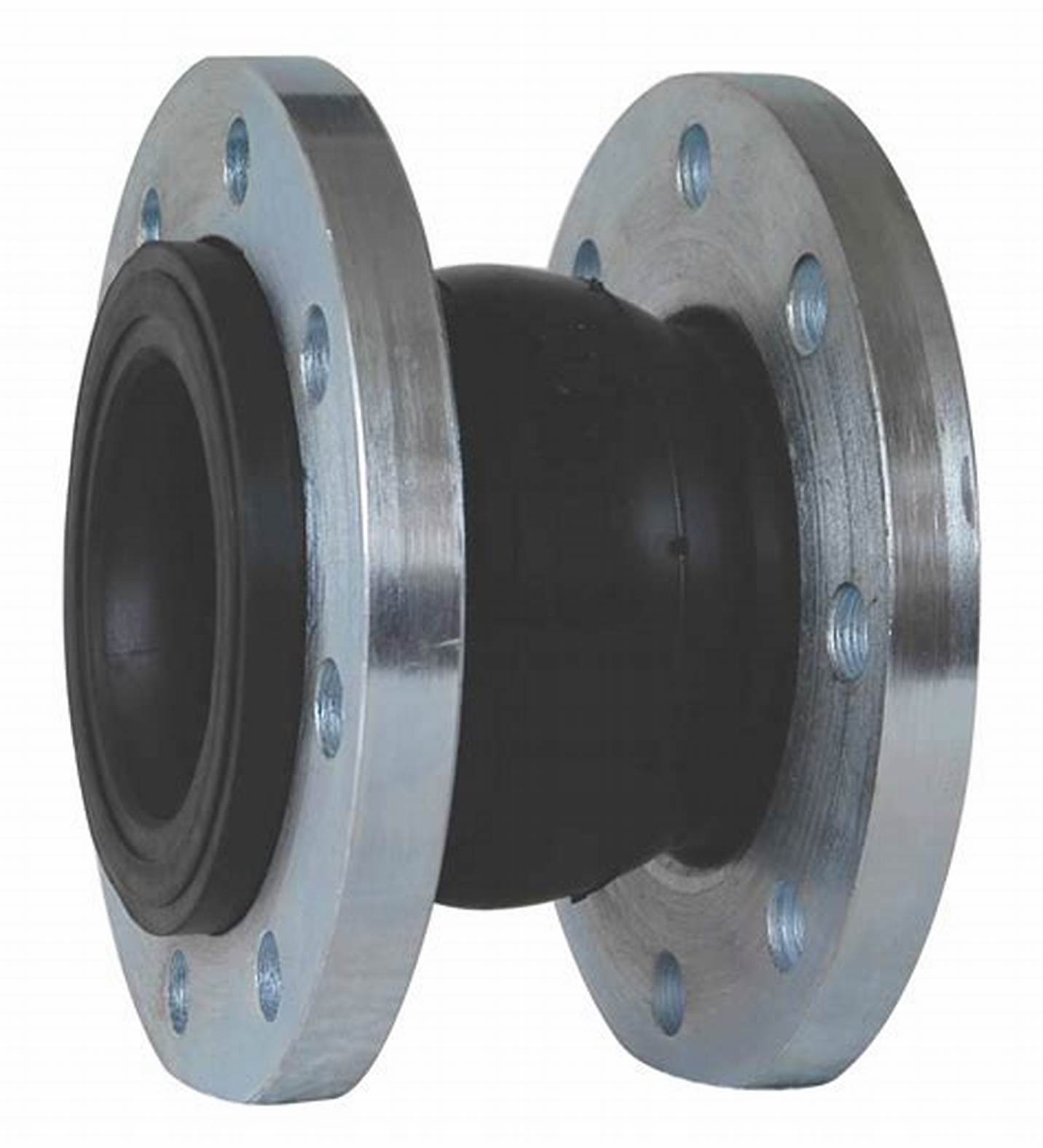

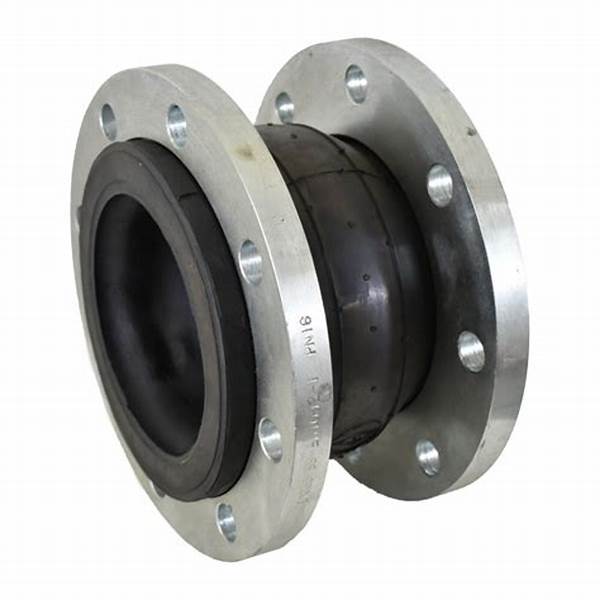

JGD41-10/16 Rubber Curved Joints

Medium: water, oil, steam

Caliber: DN32-2800

Pressure: 1.0-2.5mpa

Flange material: carbon steel stainless steel

Connection method: flange





down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

JGD41-10/16 Rubber Curved Joints Material of main parts
Part Name material
Flange Carbon steel, stainless steel
Sphere EPDM, NBR

Application: It is mainly used for flexible connection of metal pipelines that transport liquid, gas and other materials.

JGD41-10 / 16 flexible rubber flexible joint



Flexible rubber flexible joint JGD41 appearance size and connection size
model Nominal diameter
(mm)		 Size (mm)
L D D1 b φd Z
JGD41-10 / 16 32 95 135 100 16 18 4
40 95 145 110 18 18 4
50 105 160 125 18 18 4
65 115 180 145 20 18 4
80 135 195 160 20 18 4
100 150 215 180 twenty two 18 4
125 165 245 210 twenty four 18 8
150 180 280 240 twenty four twenty three 8
200 210 335 295 twenty four twenty three 8
250 230 390 350 26 twenty three 8
300 245 440 400 28 twenty three 12
350 255 500 460 28 twenty three 12
400 255 565 515 30 twenty three 16
450 255 615 565 30 25 16
500 255 670 620 32 25 20
600 260 780 725 36 30 20

PRODUCT ADVANTAGES:

1.We have Sand or Precision casting technology,So we can as your drawing design andproduction.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.

Read More About rubber expansion joint

COMPANY ADVANTAGES:

  • Read More About rubber joints
    1.We are manufacturer Since 1992.
  • Read More About rubber joints
    2.CE,API,ISO approved.
  • Read More About rubber expansion joint
    3.Fast delivery.
  • Read More About rubber expansion joint for pipe
    4.Low price with high quality.
  • Read More About rubber expansion joint
    5.Professional work Team!
