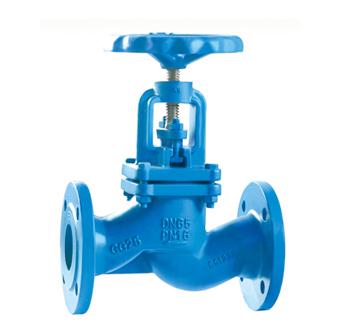

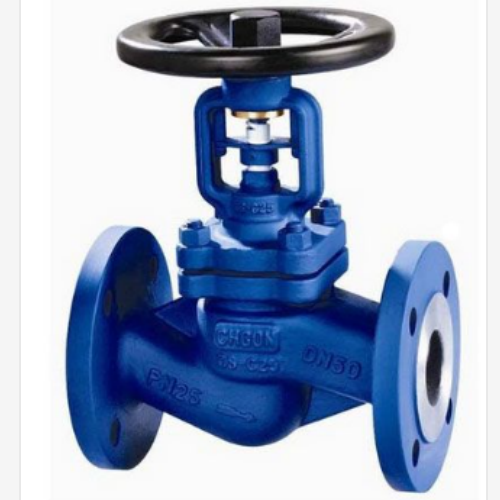

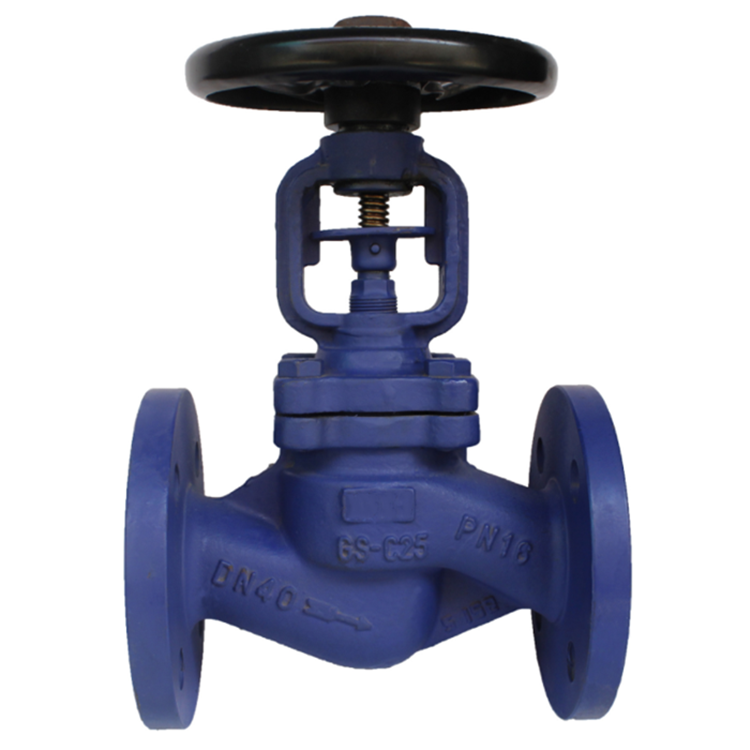

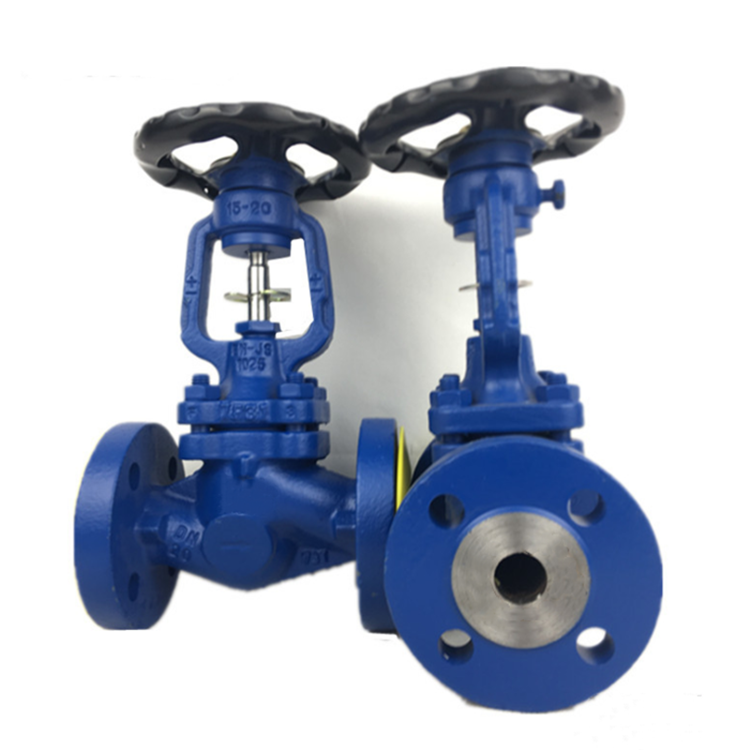

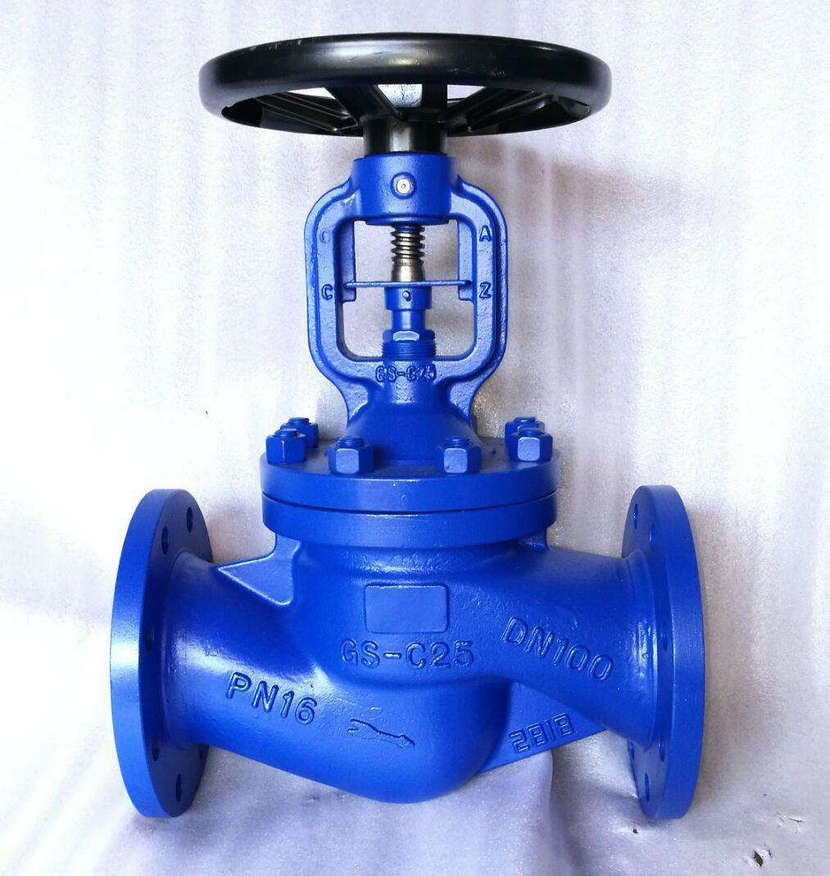

WJ41H-16/25/40 Bellows Globe Valve

Medium temperature: ≤350 ℃
Operation mode: manual, electric
Medium: water, steam, oil, etc.
Caliber: DN15-500mm
Pressure: 1.6-4.0mpa
Body material: carbon steel, CF8, CF8M, WC6, WC9
Connection method: flange

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Bellows Globe Valve Main parts and materials
Parts name		Material
Valve body		Carbon steel、CF8、CF8M、WC6、WC9
Valve seat		304、stellite
Stem / Disc		2cr13、F304、F316、F321、F316L、F304L
Bellows assembly		SS304、SS316L

Applications: petroleum, chemical, chemical fiber, plastic paper, pharmaceutical, fertilizer, power, natural gas and other industries.

WJ41H-16/25/40 Bellows Globe Valve

Bellows Globe Valve Function and specification
Type	Nominal pressure （mpa）	esting pressure（mpa）		Suitable temperature	Suitable medium
		Strength	seal
WJ41H-16/25/40	1.6/2.5/4.0	1.5*PN	1.1*PN	≤350℃	Water, steam, oil, etc.

Bellows Globe Valve Outline and connecting measurement
Type	Nominal DN(mm）	Measurement（mm）
Type	Nominal DN(mm）	L	D	D1	D2	b-f	z-φd
WJ41H-16	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	20-3	4*φ18
	80	310	200	160	138	20-3	8*φ18
	100	350	220	180	158	20-3	8*φ18
	125	400	250	210	188	22-3	8*φ18
	150	480	285	240	212	22-3	8*φ22
	200	600	340	295	268	24-3	12*φ22
	250	730	405	355	320	26-3	12*φ26
	300	850	460	410	378	28-4	12*φ26
	350	980	520	470	438	30-4	16*φ26
	400	1100	580	525	490	32-4	16*φ30
WJ41H-25	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	22-3	8*φ18
	80	310	200	160	138	24-3	8*φ18
	100	350	235	190	162	24-3	8*φ22
	125	400	270	220	188	26-3	8*φ26
	150	480	300	250	218	28-3	8*φ26
	200	600	360	310	278	30-3	12*φ26
	250	730	425	370	335	32-3	12*φ30
	300	850	485	430	395	34-4	16*φ30
	350	980	555	490	450	38-4	16*φ33
	400	1100	620	550	505	40-4	16*φ36
WJ41H-40	15	130	95	65	45	16-2	4*φ14
	20	150	105	75	58	18-2	4*φ14
	25	160	115	85	68	18-2	4*φ14
	32	180	140	100	78	18-2	4*φ18
	40	200	150	110	88	18-3	4*φ18
	50	230	165	125	102	20-3	4*φ18
	65	290	185	145	122	22-3	8*φ18
	80	310	200	160	138	24-3	8*φ18
	100	350	235	190	162	24-3	8*φ22
	125	400	270	220	188	26-3	8*φ26
	150	480	300	250	218	28-3	8*φ26
	200	600	375	320	285	34-3	12*φ30
	250	730	450	385	345	38-3	12*φ33
	300	850	515	450	410	42-4	16*φ33
	350	980	580	510	465	46-4	16*φ36
	400	1100	660	585	535	50-4	16*φ39

PRODUCT ADVANTAGES:

1.Leak-proof Operation: One of the main advantages of bellows globe valves is their leak-proof operation.
2. Improved Flow Control: Bellows globe valves offer precise flow control due to their linear motion design.
3.High Temperature and Pressure Resistance: Bellows globe valves are designed to withstand high temperatures and pressures often encountered in industrial settings.
4. Excellent Sealing Performance: Bellows globe valves offer excellent sealing performance, even in harsh environments.
5.Reduced Maintenance: The bellows design of these valves eliminates the need for packing systems found in traditional globe valves.
COMPANY ADVANTAGES:
- 1.We are manufacturer Since 1992.
- 2.CE,API,ISO approved.
- 3.Fast delivery.
- 4.Low price with high quality.
- 5.Professional work Team!
