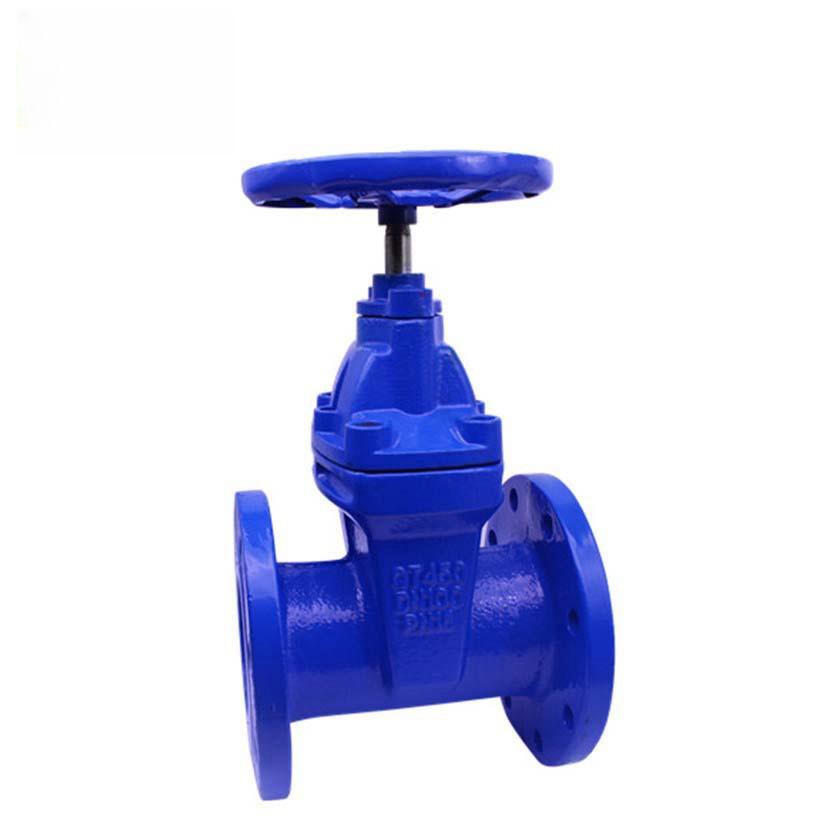

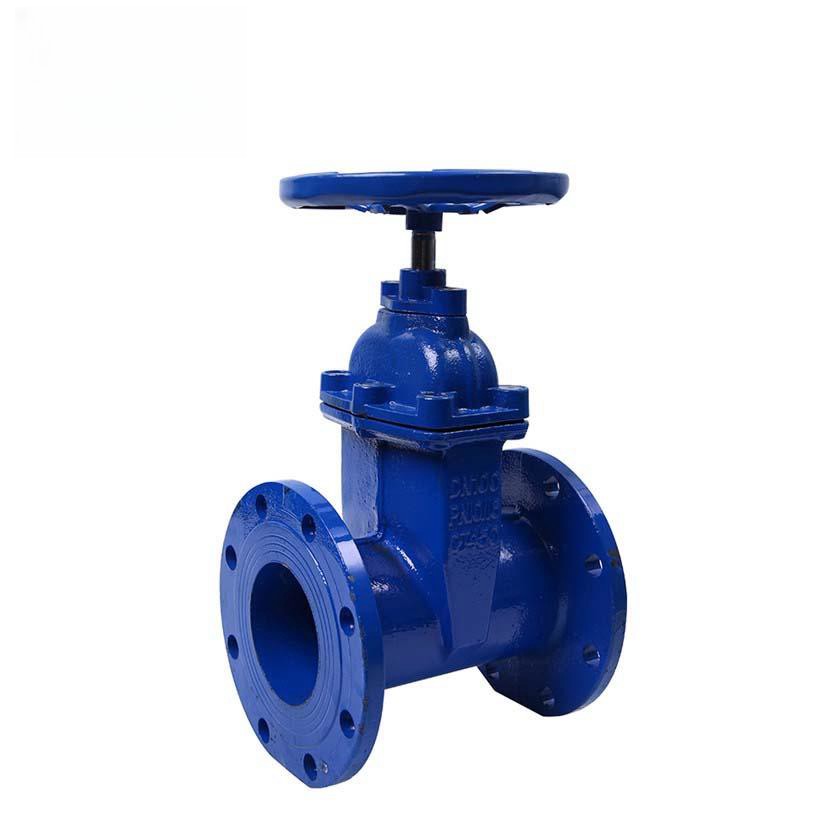

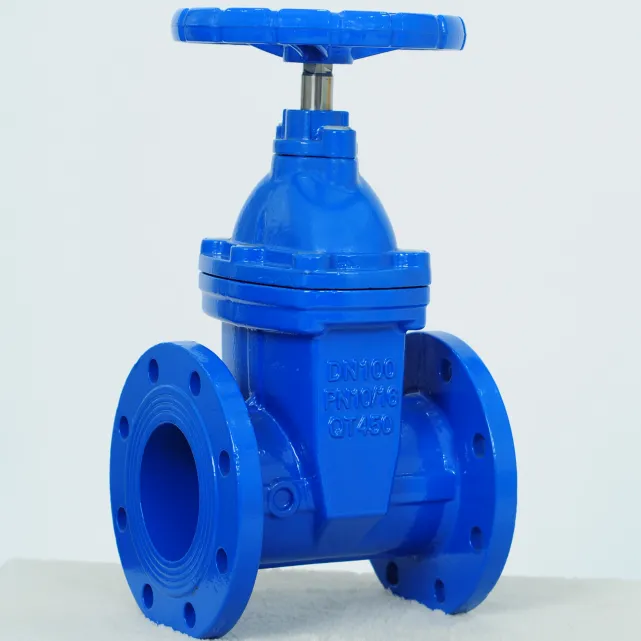

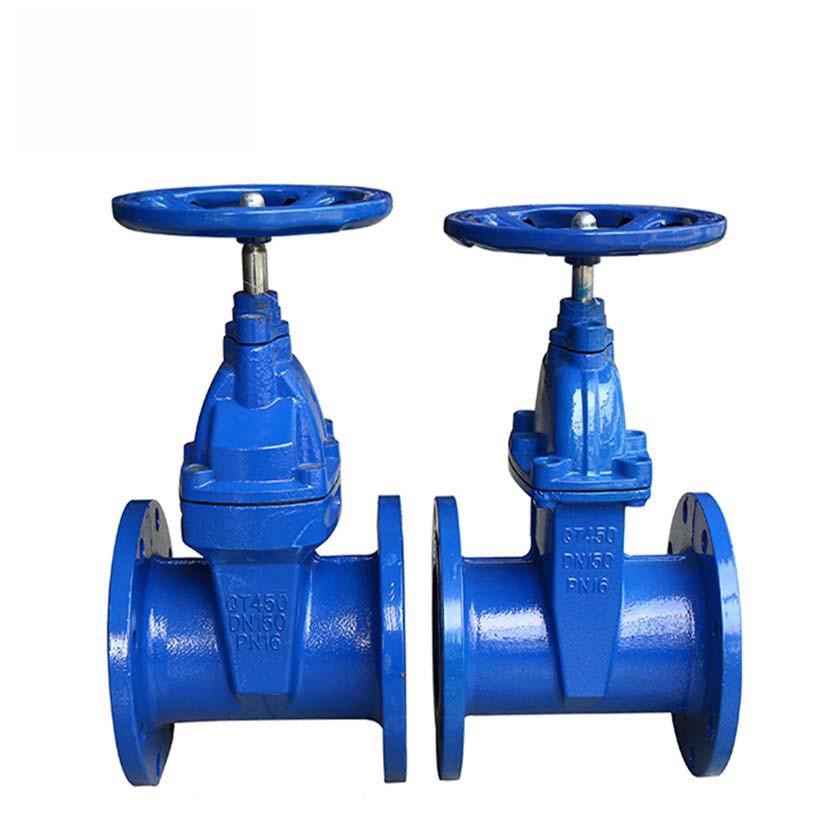

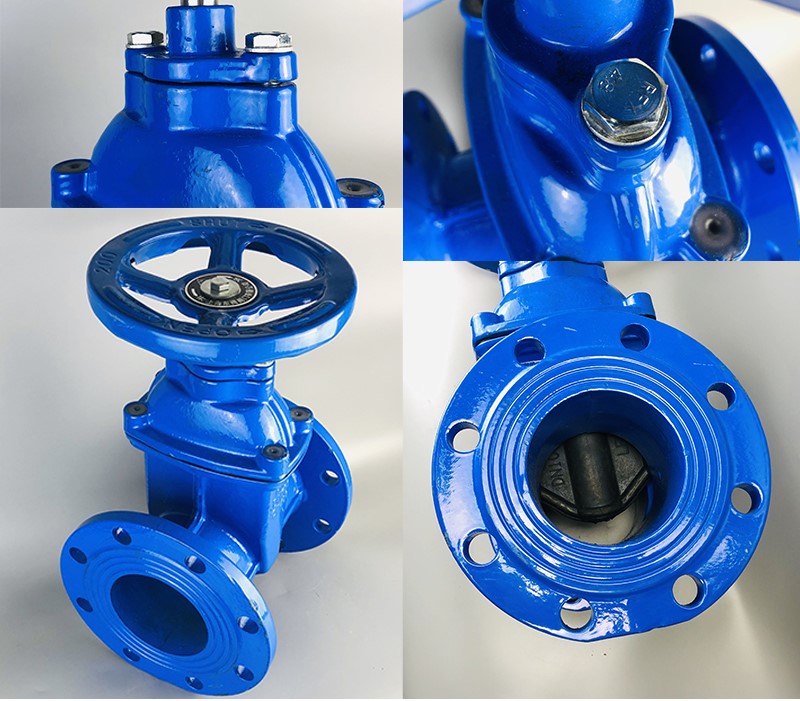

Ductile Iron Hand wheel Resilient Seal Gate Valve

Z45X-16 DIN resilient seat soft seal gate valve

Medium Temperature:≤80℃

Operation mode:munal,electric

Medium:Water

Size:DN50-600

Pressure:1.6mpa

Body Material:ductile iron,cast iron

Connection:flange



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

DIN O-type F4 concealed gate valve Material of main parts

DIN O-type F4 concealed gate valve Material of main parts

Part Name

material

Body / bonnet

Ductile iron

gate

Ductile iron + EPDM

Valve stem

stainless steel

Stem nut

Brass / Ductile Iron

DIN O type F4 dark rod gate valve Z45X performance specification

DIN O type F4 dark rod gate valve Z45X performance specification

model

Nominal pressure

(mpa)

Test pressure (mpa)

proper temperature

Applicable medium

Strength (water)

Sealed (water)

Z45X-10

1.00

1.50

1.10

≤80 ℃

water

Z45X-16

1.60

2.40

1.76

≤80 ℃

water

DIN O type F4 concealed gate valve Z45X dimensions and connection dimensions

DIN O type F4 concealed gate valve Z45X dimensions and connection dimensions

model

Nominal diameter

(mm)

Size (mm)

L

D

C

B

N-φd

PN10 / 16

PN10

PN16

PN10

PN16

Z45X-10 / 16Q

50

150

165

125

99

4 * φ19

65

170

185

145

119

4 * φ19

80

180

200

160

133

4 * φ19

8 * φ19

100

190

220

180

154

8 * φ19

125

200

250

210

184

8 * φ19

150

210

285

240

210

8 * φ23

200

230

340

​295

265

8 * φ23

12 * φ23

250

250

405

350

355

319

12 * φ23

12 * φ28

300

270

460

400

410

370

12 * φ23

12 * φ28

Applications:



Cut off or connect pipeline medium on roads under hydraulic conditions.

Company Advantages:



  • Read More About bellow seal globe valve manufacturers
    1.We are manufacturer Since 1992.
  • Read More About globe angle valve manufacturer
    2.CE,API,ISO approved.
  • Read More About
    3.Fast delivery.
  • Read More About
    4.Low price with high quality.
  • Read More About bellow seal globe valve suppliers
    5.Professional work Team!

Why choose us:

1.We are a professional manufacturer with casting machining paint and delivery in one, and excellent technical team.

2.We are factory so that we can control the product quality. In addition,we can cast logo and change the valve parts as clients’ requirements.

3.All our workers own rich experience to ensure the export smoothly and make you satisfied.

4.We attend the Canton Fair and professional exhibition every year.

5.We have the specialized after-sales service to solve the quality problems in time.

6.Our company located in Xiongan New district which brings lasting development power. It can strengthen our cooperation .
