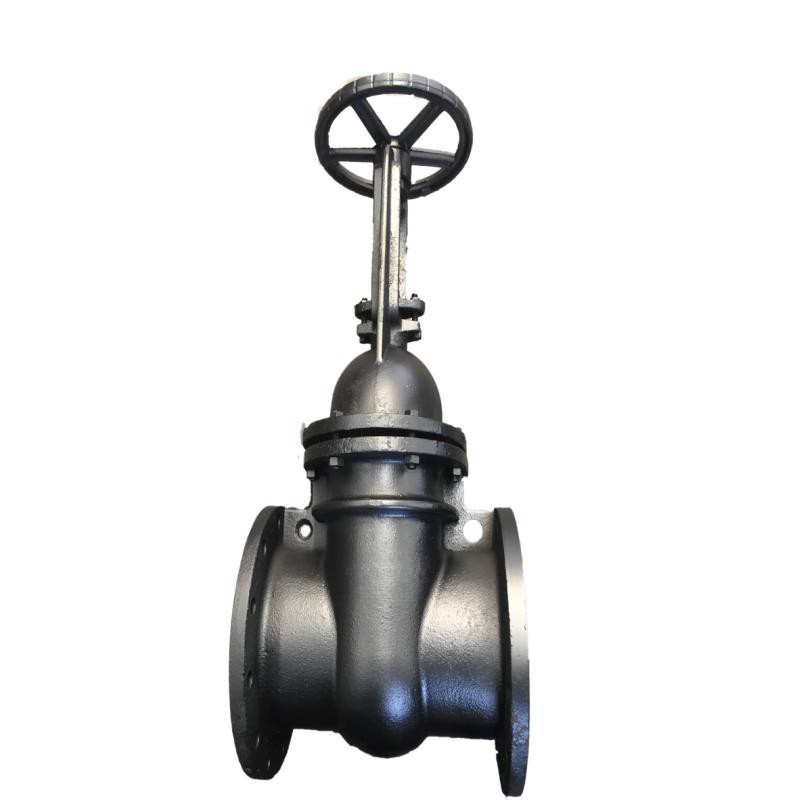

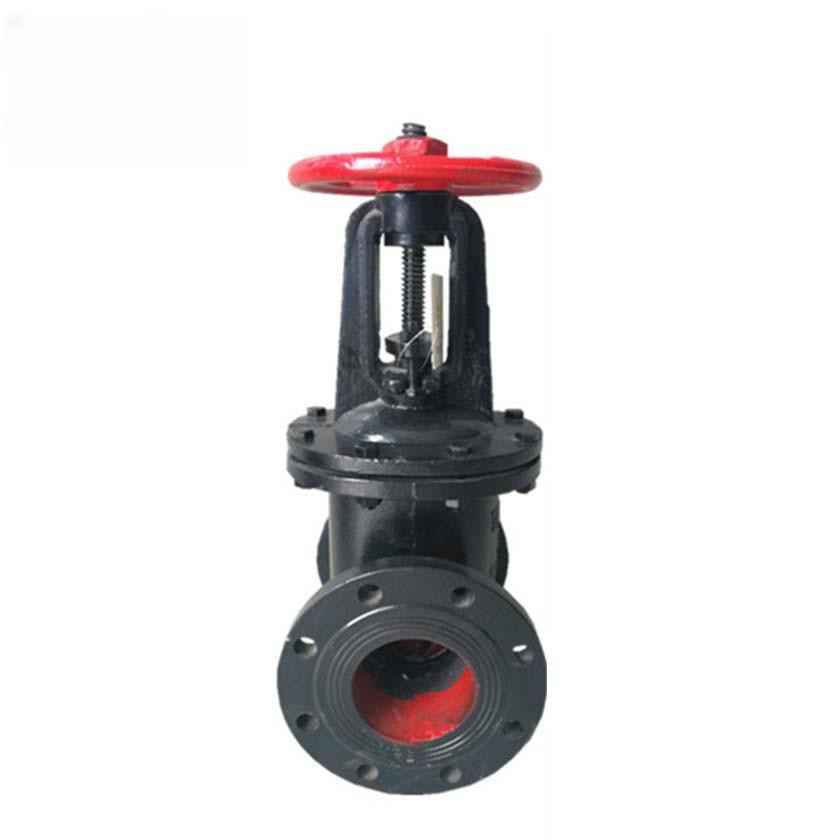

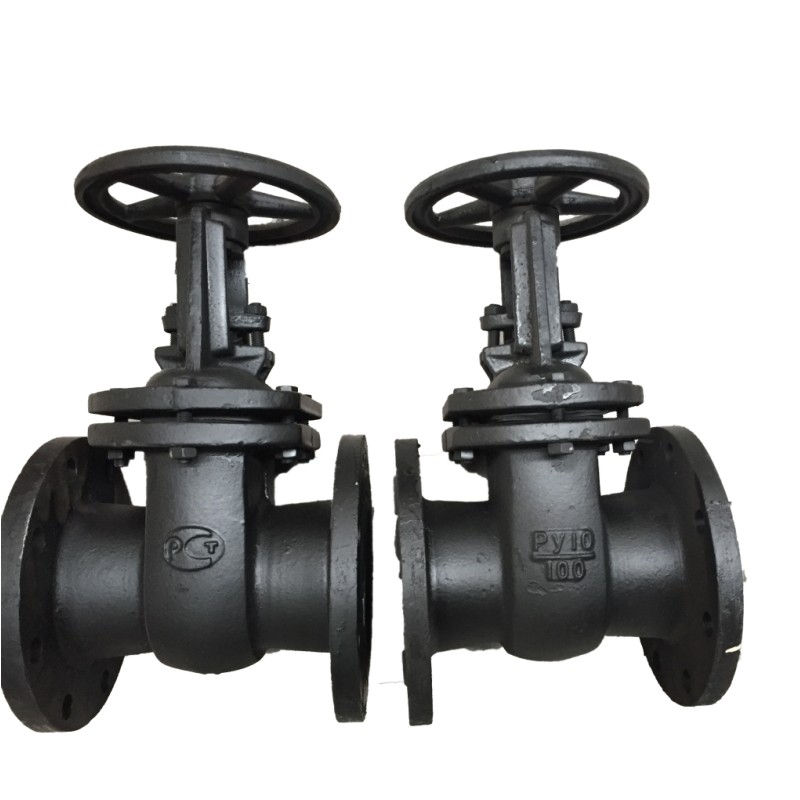

Gost Cast Iron Gate Valve Z44T-10/Z41T-16

Read More About iron gate valve

Gost Cast Iron Gate Valve Z44T-10/Z41T-16

Gost Cast Iron Gate Valve Z44T-10/Z41T-16
Material: gray/ cast iron/ HT200
Medium temperature: ≤200°C
Mode of operation: manual/ Electric
Medium: water, steam
Caliber: DN50-1200
Valve type: gate valve
Connection method: flange
Working pressure: 1.0/1.6Mpa

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Gost Cast Iron Gate Valve Z44T-10/Z41T-16 Main parts and materials

Gost Cast Iron Gate Valve Z44T-10/Z41T-16 Main parts and materials
Parts name	Material
Valve body Bonnet	Grey iron
Disc	Grey iron
Stem	WCB
Yoke nut	Ductile iron

Gost Cast Iron Gate Valve Z41/44T-10 Function and specification

Gost Cast Iron Gate Valve Z41/44T-10 Function and specification
Type	Nominal pressure	Testing pressure		Suitable temperature	Suitable medium
		Strength (Water)	Enclose (Water)
Z41/44T-10	1.0	1.5	1.1	≤200℃	Water，Vapour

Gost Cast Iron Gate Valve Z41/44T-10 Outline and connecting measurement

Gost Cast Iron Gate Valve Z41/44T-10 Outline and connecting measurement
Type	Nominal DN(mm）	Measurement（mm）
Type	Nominal DN(mm）	L	D	D1	D2	b-f	z-φd
Z41H-16C	50	180	160	125	100	17-2	4*φ18
	80	210	195	160	135	19-2	4*φ18
	100	230	215	180	155	19-2	8*φ18
	150	280	280	240	210	21-3	8*φ23
	200	330	340	295	265	23-3	12*φ23
	250	450	395	350	320	26-3	12*φ23
	300	500	445	400	368	26-3	12*φ23

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

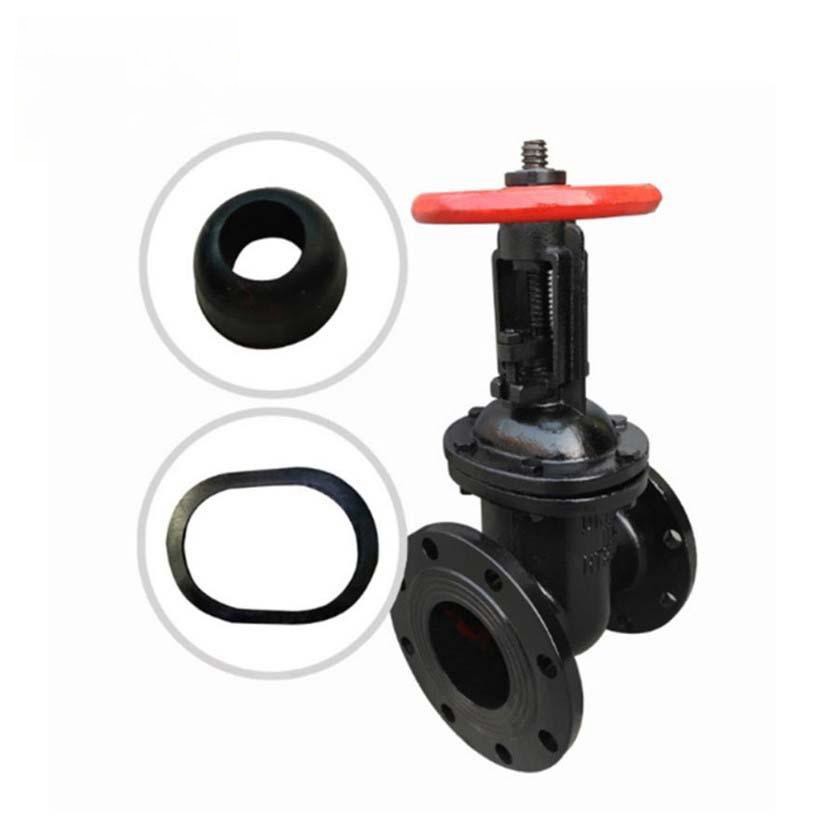

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,Water treatment and etc.

Company Advantages:

1.We are manufacturer Since 1992.
2.CE,API,ISO approved.
3.Fast delivery.
4.Low price with high quality.
5.Professional work Team!

Product Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.
