Read More About manual knife gate valve

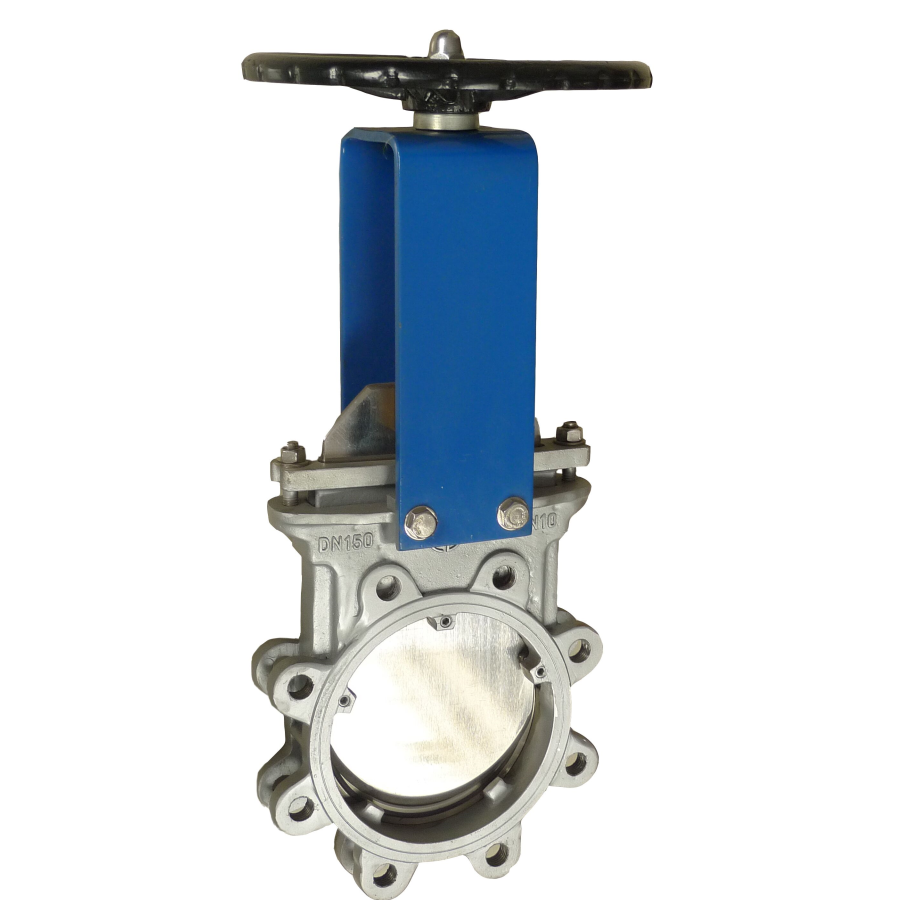

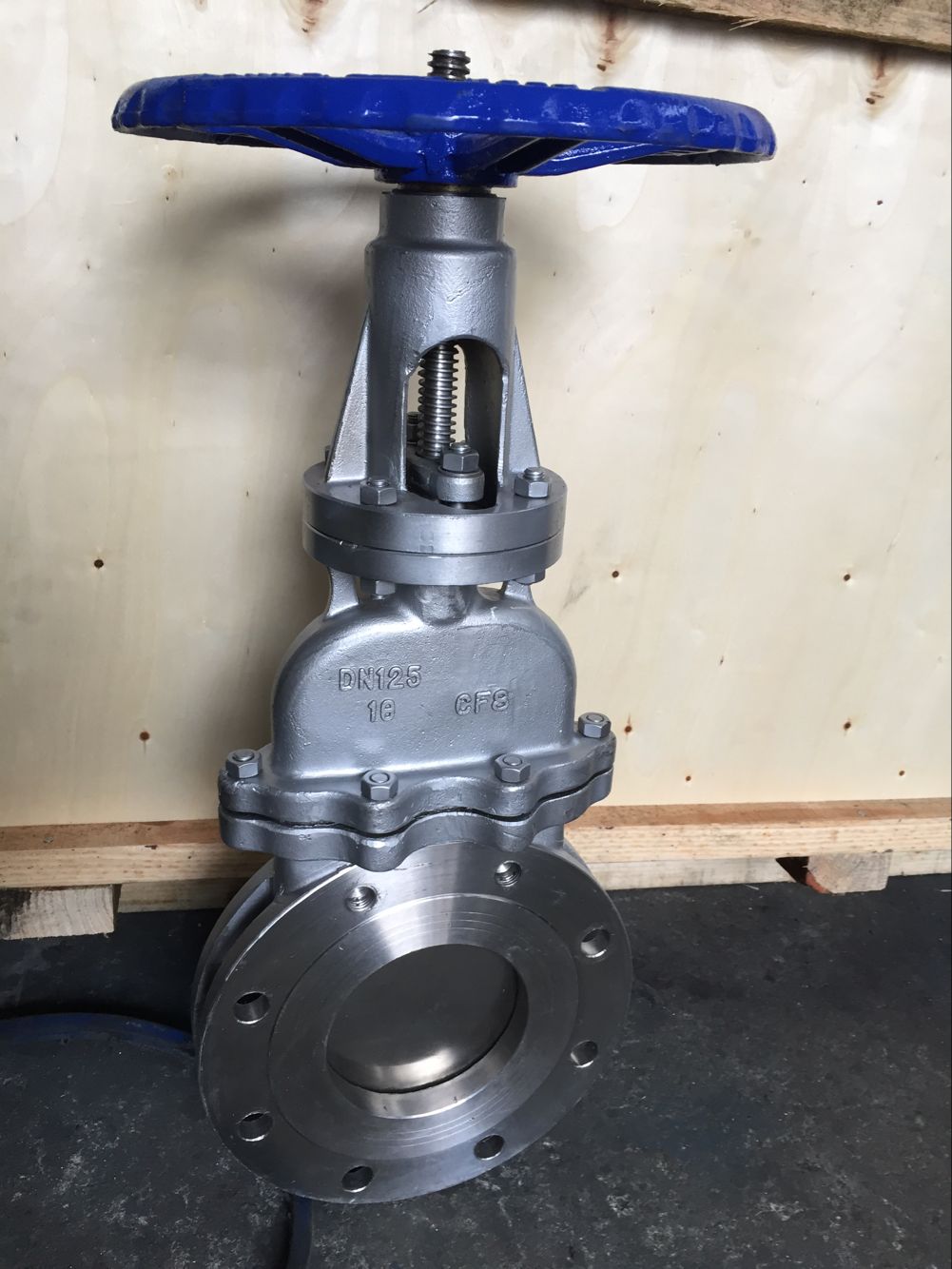

Stainless Steel Manual Knife Gate Valve With Water

Medium temperature: ≤90 ℃
operation: manual / electric / bevel gear / pneumatic
medium: liquid solid particle content of not more than 4%
Diameter: DN50-2000
Pressure: 1.0-1.6mpa
Body Material: GGG40 ( Ductile iron, stainless steel, duplex stainless steel)
Connection: Wafer

Seated material: Metal/EPDM/Nitril/Viton/Silicone

Optional pressure rate:10Bar/150lbs



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

slurry gate knife gate valve Dimensions and connection dimensions

slurry gate knife gate valve Dimensions and connection dimensions

model

Nominal diameter
(mm)

Size (mm)

L

B

C

D

E

H

H1

Z43 / 73X
-10 / 16Q

50

48

135

90

105

119

295

360

65

48

155

90

115

135

335

415

80

51

165

120

124

150

360

455

100

51

195

122

135

180

400

515

125

57

220

127

160

203

455

595

150

57

220

136

175

235

510

675

200

60

270

136

205

280

585

805

250

70

335

160

240

347

695

965

300

76

385

165

275

395

765

1085

400

89

525

168

365

530

995

1415

450

89

565

200

435

570

1150

1620

500

114

630

240

475

680

1250

1770

600

114

735

255

580

780

1460

2080

slurry gate knife gate valve Material of main parts

slurry gate knife gate valve Material of main parts

Part Name

material

Valve body

GGG40

gate

stainless steel

Valve stem

2Cr13

Sealing ring

NBR / EPDM

slurry gate knife gate valve Performance specifications

slurry gate knife gate valve Performance specifications

model

Nominal pressure
(mpa)

test pressure

proper temperature

Applicable medium

Shell pressure test

Sealed pressure test

Z73 / 43X-10Q

1.0

Working pressure * 1.5 times

Working pressure * 1.1 times

≤90 ℃

Liquid solid particles not exceeding 4%

Z73 / 43X-16Q

1.6

Working pressure













DN50-250

10KG / cm³

DN300-DN400

6KG / cm³

DN450

5KG / cm³

DN500-DN600

4KG / cm³

DN700-DN1200

2KG / cm³







Tips:



1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation.

Applications:



Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.

Company Advantages:



  • Read More About stainless steel manual knife gate valve
    1.We are manufacturer Since 1992.
  • Read More About stainless steel manual knife gate valve
    2.CE,API,ISO approved.
  • Read More About manual knife gate valve
    3.Fast delivery.
  • Read More About stainless steel manual knife gate valve
    4.Low price with high quality.
  • Read More About manual knife gate valve
    5.Professional work Team!

Product Advantages:



1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.

Manual Knife Type Gate Valve
