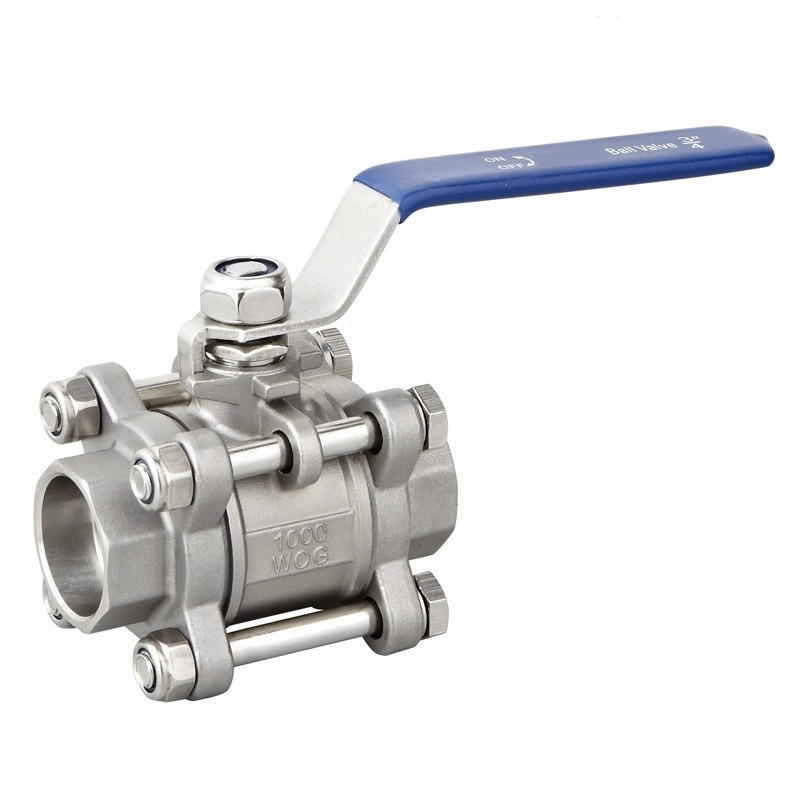

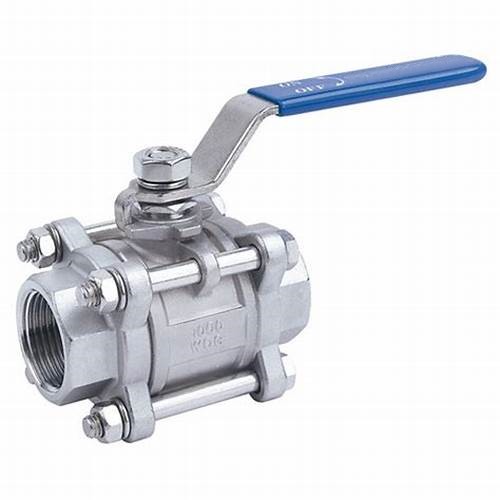

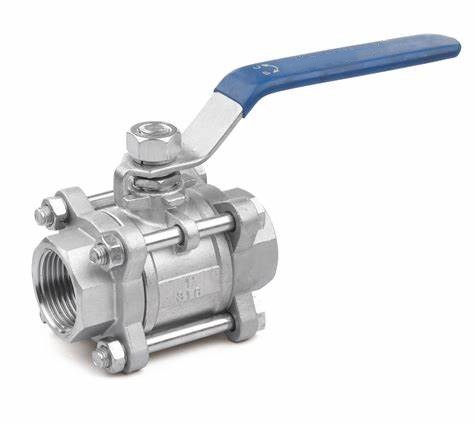

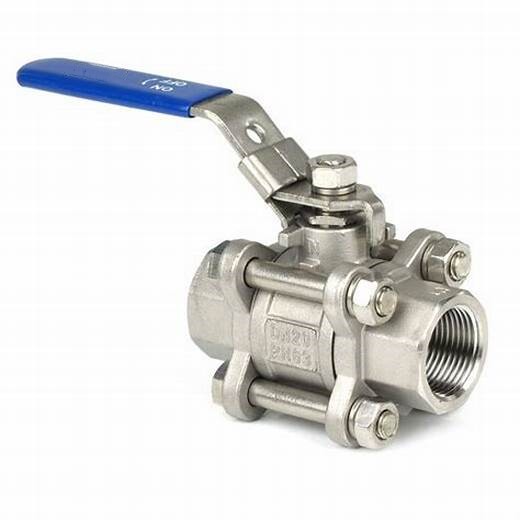

3PC Dn-50-600mm Stainless Steel Ball Valve

Medium temperature: ≤150 ℃
Medium: water, oil, steam
Caliber: 1/2 "-2"
Pressure: 1.0/2.5/4.0 Mpa
Body material: stainless steel, carbon steel
Connection: NPT BSP thread

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

3PC Ball Valve-1000WOG Main parts and materials

3PC Ball Valve-1000WOG Main parts and materials
Parts name	Material
Valve body	CF8 CF8M WCB
Ball	SS304 SS316
Valve seat	PTFE
Valve stem	SS304 SS316

3PC Ball Valve-1000WOG Function and specification

3PC Ball Valve-1000WOG Function and specification
Type	Nominal pressure （WOG）	Testing pressure（mpa）		Suitable temperature	Suitable medium
		Strength (Water)	Enclose (Water)
3PC-1000WOG	1000.0	API598 JB/T9092		≤150℃	Water, oil, steam

3PC Ball Valve-1000WOG Outline and connecting measurement

3PC Ball Valve-1000WOG Outline and connecting measurement
SIZE	1/2"	3/4"	1"	1 1/4"	2"
d	15	20	25	32	50
L	69	79	89	104	133
H	44	47.4	55	62	81
H1	9	9	13	13	16
E	104	113	135	145	182

Product Obvious advantages:

The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. Ball valve is a new type of valve that has been widely used in recent times. It has the following advantages:

1. The fluid resistance is small, and the resistance coefficient is equal to the pipe length of the same length.
2. Simple structure, small size and light weight.
3. It is close and reliable. The sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in vacuum systems.
4, easy to operate, open and close quickly, from full open to full off as long as rotated 90 °, easy to control over long distances.
5, the maintenance is convenient, the ball valve structure is simple, the sealing ring is generally active, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes, it will not cause erosion of the sealing surface of the valve.

7, a wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied. When the ball is rotated 90 degrees, all the spheres should appear at the entrance and exit, thus cutting off the flow.
