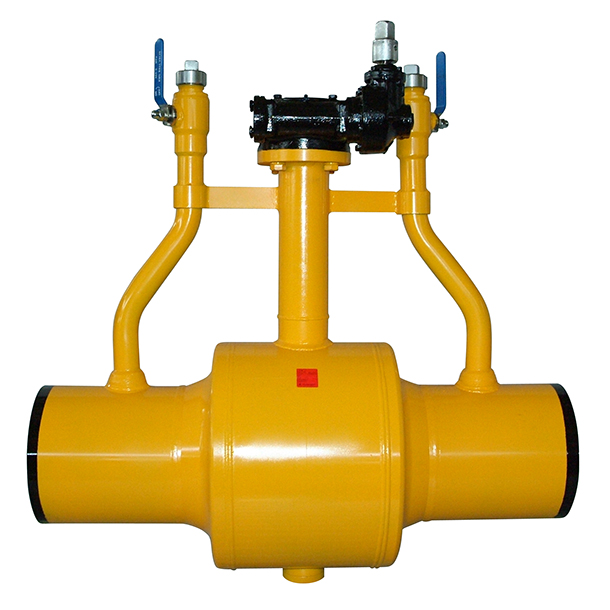

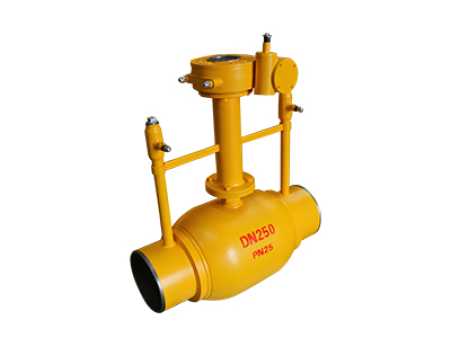

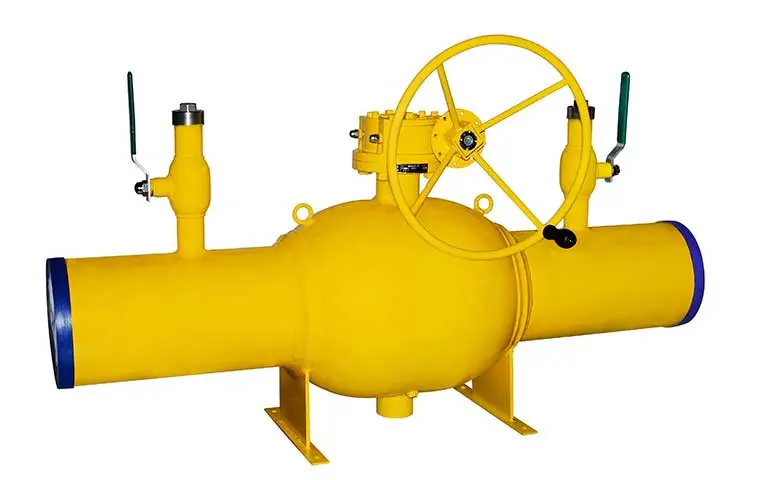

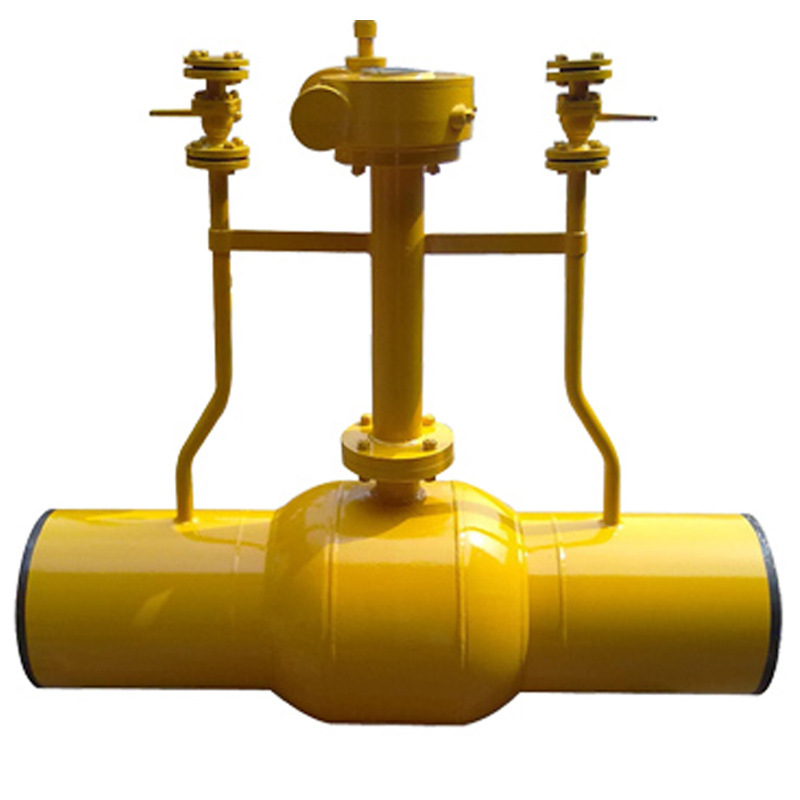

DN 15-800mm Oil And Gas Welded Ball Valve

Medium temperature: ≤120 ℃
Operating mode: bevel gear, polished rod
Medium: natural gas, gas, gas and medium that does not react with carbon steel
Size: DN40-900
Pressure: 1.6/2.5/4.0Mpa
Body material: WCB
Connection method: welding

CONTACT NOW down load to pdf

Product Details

Product Tags

PRODUCT PARAMETERS:

Oil And Gas Welded Ball Valve Material of main parts

Oil And Gas Welded Ball Valve Material of main parts
Part Name	material
Valve body	WCB
ball	stainless steel
Valve stem	stainless steel
seal	PTFE

Oil And Gas Welded Ball Valve Dimensions and connection dimensions

Oil And Gas Welded Ball Valve Dimensions and connection dimensions
PN	Nominal diameter (mm)	Size (mm)
PN	Nominal diameter (mm)	A	L	D1	d	D (GB)
25	40	300	1000	88.9	38	45
	50	300	1000	114.3	50	57
	65	300	1000	139.7	65	73
	80	300	1000	168.3	80	89
	100	300	1000	177.8	100	108
	125	400	1000	219.1	125	133
	150	400	1000	273	150	159

	100	300	1000	177.8	100	108
	125	400	1000	219.1	125	133
	150	400	1000	273	150	159
	200	400	1100	355.6	200	219
	250	500	1100	426	250	273
	300	500	1230	508	290	325
	350	500	1400	558.8	350	377
	400	500	1550	680	400	426
	500	600	1700	830	500	529
	600	700	2000	1000	600	630
	700	700	2195	1150	700	720
	800	800	2300	1252	770	820
	900	900	2550	1456	874	920
