Read More About ball valve two piece

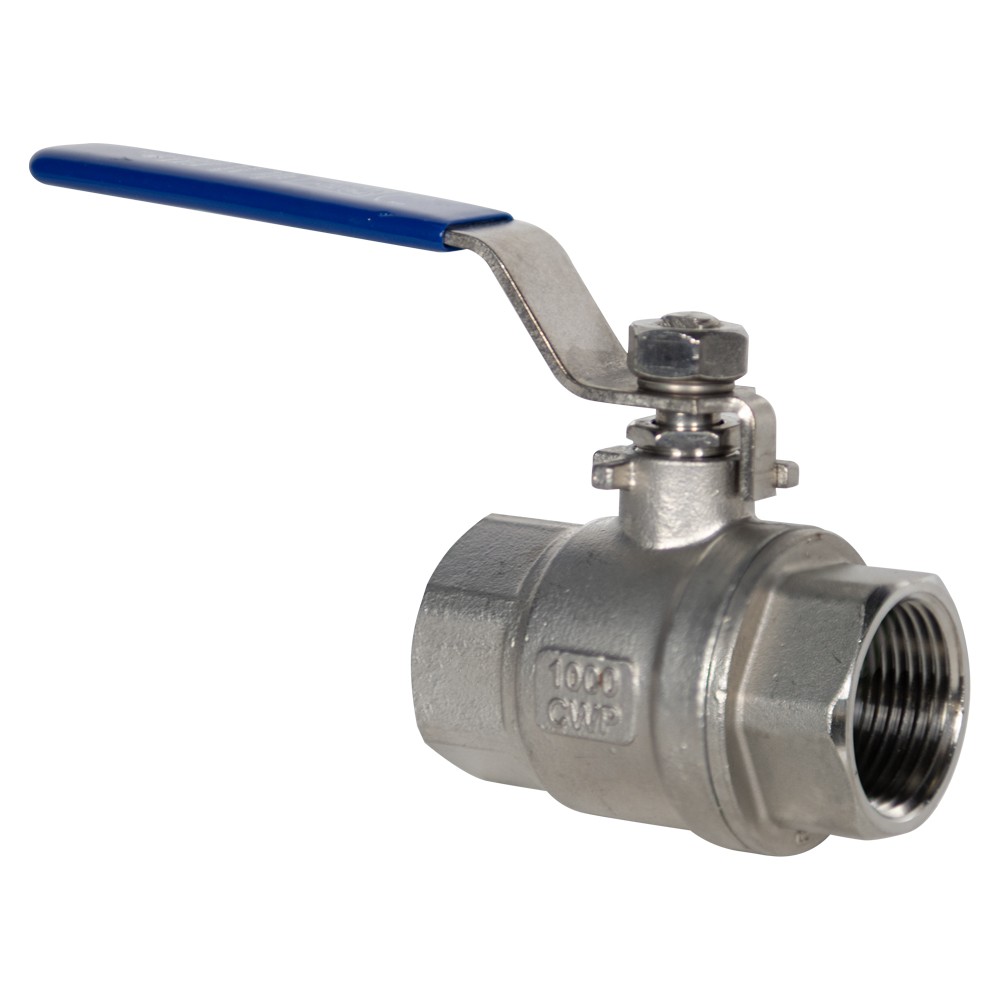

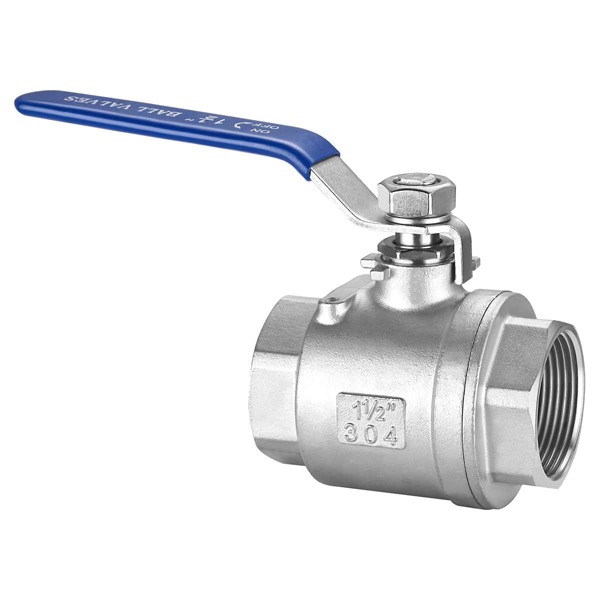

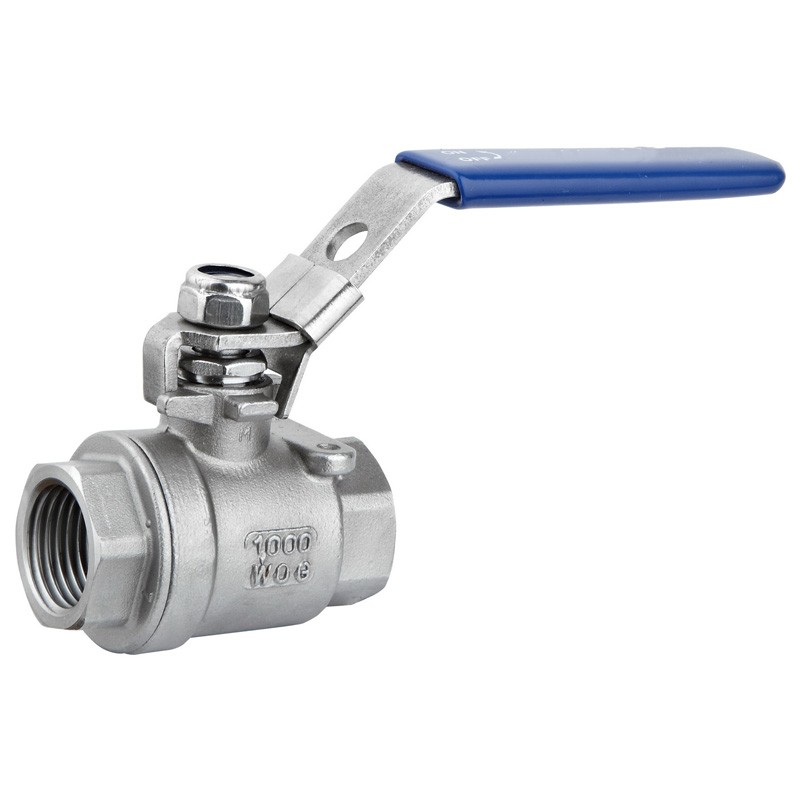

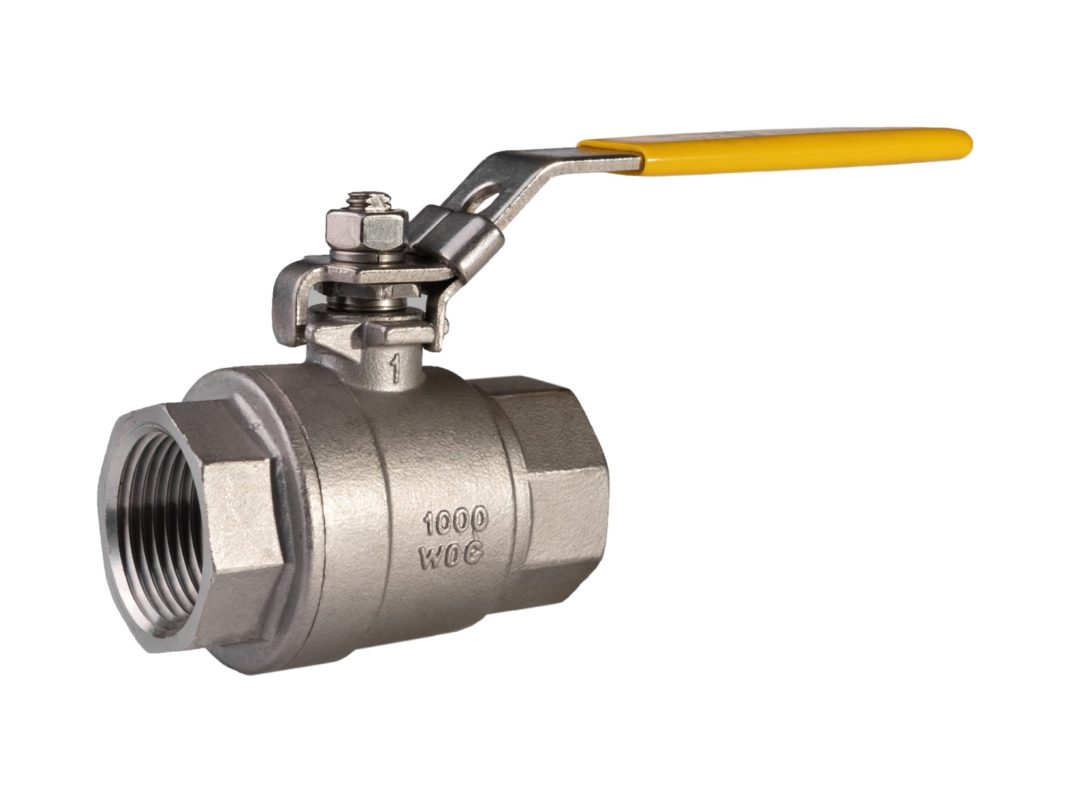

Q11f-16p Stainless Steel Two-piece Ball Valve

Medium temperature: ≤180 ℃
Medium: water, steam, oil, etc.
Caliber: DN6-DN50
Pressure: 1.6MPA
Body material: 304, 316
Connection method: Thread
operation method: handle



down load to pdf
Product Details
Product Tags

PRODUCT PARAMETERS:

Q11F-16P stainless steel two-piece ball valve Material of main parts

Q11F-16P stainless steel two-piece ball valve Material of main parts

Part Name

material

Valve body

304, 316

Sphere

304, 316

Valve stem

304, 316

Sealing ring

PTFE

Q11F-16P stainless steel two-piece ball valve dimensions and connection dimensions

Q11F-16P stainless steel two-piece ball valve dimensions and connection dimensions

model

Nominal diameter
(mm)

Size (mm)

G

B

L

E

Q11F-16

6

1/4 "

10

55

11.5

10

3/8 "

12

55

11.5

15

1/2 "

15

57

14

20

3/4 "

20

65

15

25

1"

25

79

15

32

1 1/4 "

32

90

18

40

1 1/2 "

38

98

19

50

2"

50

115

19

Applications:



It is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline.Small construction spece, low construction cost;

Company Advantages:



  • Read More About 2 piece ball valves
    1.We are manufacturer Since 1992.
  • Read More About 2 piece ball valves
    2.CE,API,ISO approved.
  • Read More About 2 piece ball valves
    3.Fast delivery.
  • Read More About 2 piece stainless steel ball valve
    4.Low price with high quality.
  • Read More About ball valve two piece
    5.Professional work Team!

Product Advantages:



1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding

6. Every valve must be tested before delivery from the factory, only qualified onescanbe shipped.

7.The kind valve we usually use Wooden cases to package,We also can according to
specific customer's requests.
