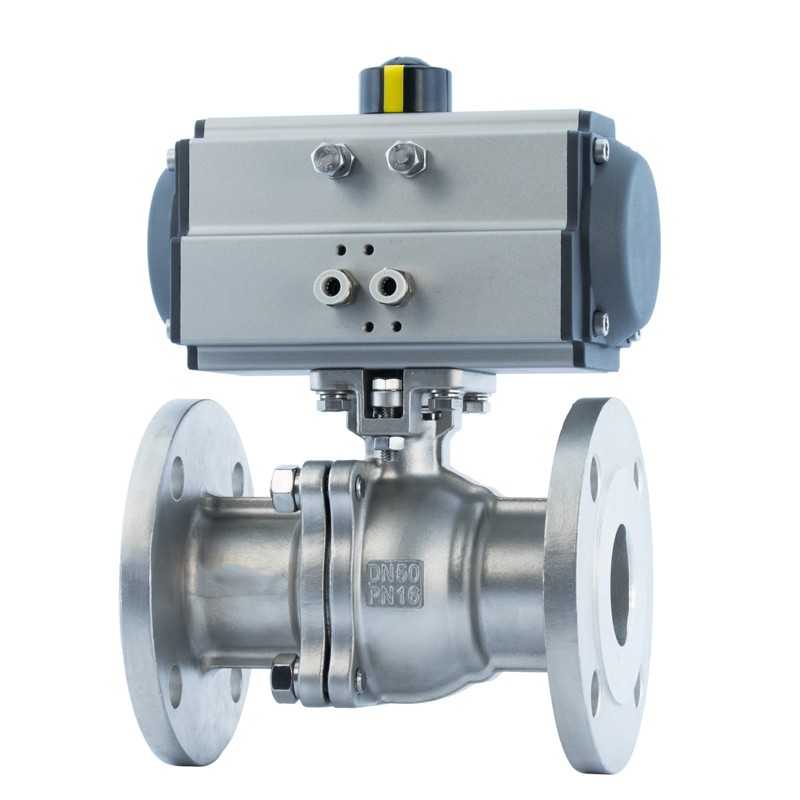

PRODUCT PARAMETERS:
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Material of main parts
|
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Material of main parts |
|
|
Part name |
Material |
|
Valve body |
WCB |
|
Sphere |
2CR13/201/304 |
|
Valve seat |
2CR13/PTFE |
|
Valve stem |
2CR13 |
|
filler |
PTFE |
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Performance specifications
|
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Performance specifications |
|||||
|
model |
Nominal pressure |
test pressure（mpa） |
proper temperature |
Applicable medium |
|
|
strength |
seal |
||||
|
Q641F-16C |
1.6 |
2.40 |
1.80 |
≤150℃ |
Water, steam, oil, etc. |
|
Q641F-25C |
2.5 |
3.80 |
2.80 |
||
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Dimensions and connection dimensions
|
Q641F/H-16C/25 GB cast steel flange pneumatic ball valve Dimensions and connection dimensions |
|||||||
|
model |
Nominal diameter |
size（mm） |
|||||
|
L |
D |
D1 |
D2 |
C |
z-φd |
||
|
Q641F-16C |
15 |
130 |
95 |
65 |
46 |
14 |
4*φ14 |
|
20 |
140 |
105 |
75 |
56 |
16 |
4*φ14 |
|
|
25 |
150 |
115 |
85 |
65 |
16 |
4*φ14 |
|
|
32 |
165 |
140 |
100 |
76 |
18 |
4*φ18 |
|
|
40 |
180 |
150 |
110 |
84 |
18 |
4*φ18 |
|
|
50 |
200 |
165 |
125 |
99 |
20 |
4*φ18 |
|
|
65 |
220 |
185 |
145 |
118 |
20 |
4*φ18 |
|
|
80 |
250 |
200 |
160 |
132 |
20 |
8*φ18 |
|
|
100 |
280 |
220 |
180 |
156 |
22 |
8*φ18 |
|
|
125 |
320 |
250 |
210 |
184 |
22 |
8*φ18 |
|
|
150 |
360 |
285 |
240 |
211 |
24 |
8*φ22 |
|
|
200 |
400 |
340 |
295 |
266 |
24 |
12*φ22 |
|
|
Q641F-25C |
15 |
130 |
95 |
65 |
46 |
14 |
4*φ14 |
|
20 |
140 |
105 |
75 |
56 |
16 |
4*φ14 |
|
|
25 |
150 |
115 |
85 |
65 |
16 |
4*φ14 |
|
|
32 |
165 |
140 |
100 |
76 |
18 |
4*φ18 |
|
|
40 |
180 |
150 |
110 |
84 |
18 |
4*φ18 |
|
|
50 |
200 |
165 |
125 |
99 |
20 |
4*φ18 |
|
|
65 |
220 |
185 |
145 |
118 |
22 |
8*φ18 |
|
|
80 |
250 |
200 |
160 |
132 |
24 |
8*φ18 |
|
|
100 |
280 |
235 |
190 |
156 |
24 |
8*φ22 |
|
|
125 |
320 |
270 |
220 |
184 |
26 |
8*φ26 |
|
|
150 |
360 |
300 |
250 |
211 |
28 |
8*φ26 |
|
|
200 |
400 |
360 |
310 |
274 |
30 |
12*φ26 |
|
Applications:
This valve is suitable for all kinds of pipelines that are fully open and fully closed, not for throttling.
